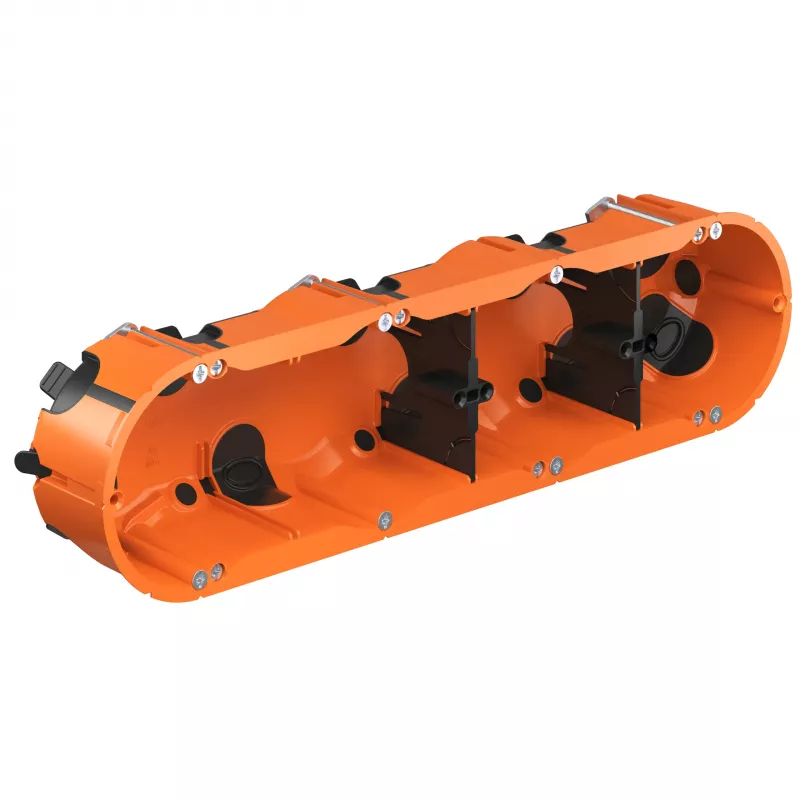

Kaiser Elektro O-range ECON4 onteloseinälaiterasia 9254-22

The Kaiser Elektro O-range ECON4 Cavity Wall Device Box 9254-22 is a high-quality, halogen-free plastic device box designed for professional cavity wall installations. With its innovative O-range ECON4 series, this box offers exceptional airtightness and flexibility, making it ideal for modern electrical and data cabling applications.

Advantages

This device box features 8 flexible sealing membranes (Kombi-Einführungen) for easy cable entry without the need for additional grommets. Its halogen-free material ensures safety in case of fire, and the airtight design meets stringent building regulations. The included device screws simplify installation, and the orange color provides high visibility for easy identification.

Suitable for

• Cavity wall installations in residential and commercial buildings
• Mounting of switches, sockets, and other electrical devices
• Use in environments requiring halogen-free materials
• Airtight electrical installations for energy-efficient buildings

Key specifications

• Product Type: Device Box
• Installation Type: Cavity Wall
• Series: O-range ECON4
• Material: Halogen-free Plastic
• Color: Orange
• Mounting Diameter: 68 mm
• Mounting Depth: 49 mm
• Suitable for Plate Thickness: 7 - 35 mm
• Number of Cable Entries: 8
• Cable Entry Type: Flexible Sealing Membranes
• Device Screws Included: Yes
• Air-tight: Yes
• Halogen-free: Yes
• IP Protection Class: IP30
• Max. Conductor Cross-section: 2.5 mm²
• Number of Gangs: 1 (Single)

Recommendations

For optimal performance, pair this device box with compatible Kaiser Elektro cavity wall accessories. Ensure the mounting hole diameter is 68 mm and the wall thickness is within 7-35 mm for proper installation. This box is suitable for use with standard 2.5 mm² conductors.
