Kaiser Elektro HaloX 180 upporasioitus betonikattoihin ja -seiniin

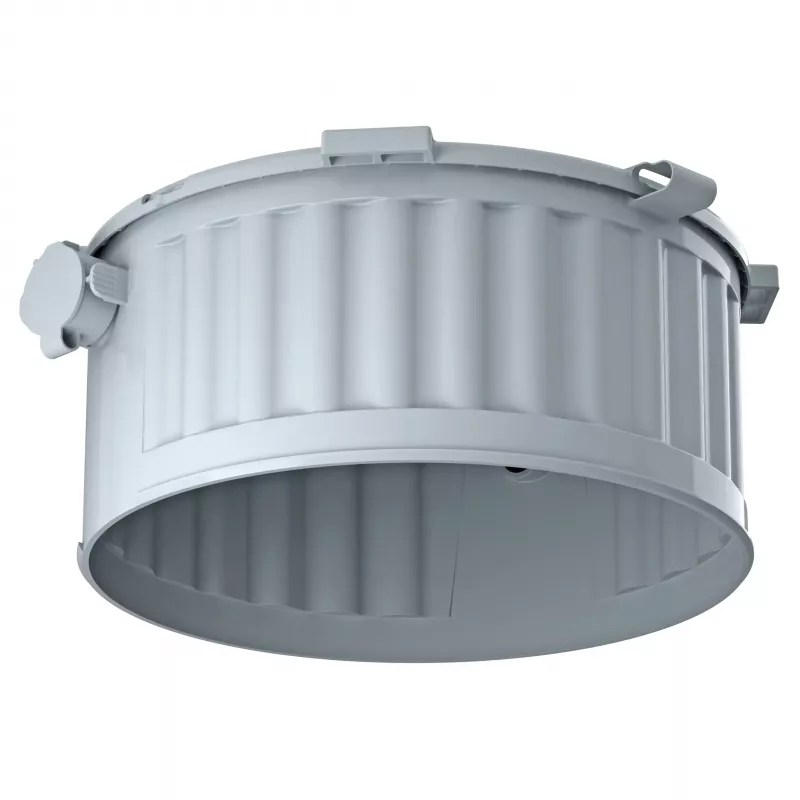

The HaloX 180 from Kaiser Elektro is a universal flush-mounted housing engineered for concrete construction, including both precast and in-situ applications. Unlike standard boxes, it offers an installation opening diameter of 180 mm and a variable installation depth of up to 185 mm, making it suitable for luminaires and loudspeakers in solid ceilings and walls.

Highlights

• Open housing design for flexible installation of luminaires and loudspeakers
• Eight flexible cable entries for M20/M25 conduits
• Halogen-free plastic material, suitable for airtight building envelopes
• Supports luminaire weights up to 20 kg
• Compatible with LED, low-voltage halogen, and high-voltage halogen lamps

In daily use

Designed for concrete ceilings and walls, this housing provides a reliable recessed mounting solution. The air-tight construction helps maintain the integrity of the building envelope, while the open back allows for easy wiring and adjustment during installation. The flexible cable entries accommodate various conduit sizes, simplifying connections.

Full specifications

• Product type: Universal flush-mounted housing
• Installation opening diameter: 180 mm
• Installation depth: up to 185 mm
• Material: Halogen-free plastic
• Cable entries: 8 x M20/M25
• Maximum luminaire weight: 20 kg
• Maximum luminaire power: 50 W (halogen)
• Protection class: IP20
• Temperature range: -5°C to +60°C
• Certification: VDE

Final note

The HaloX 180 is a practical choice for electricians and contractors needing a dependable flush-mounted housing for concrete applications.
