Kameran asennustarvike Axis 5507-271

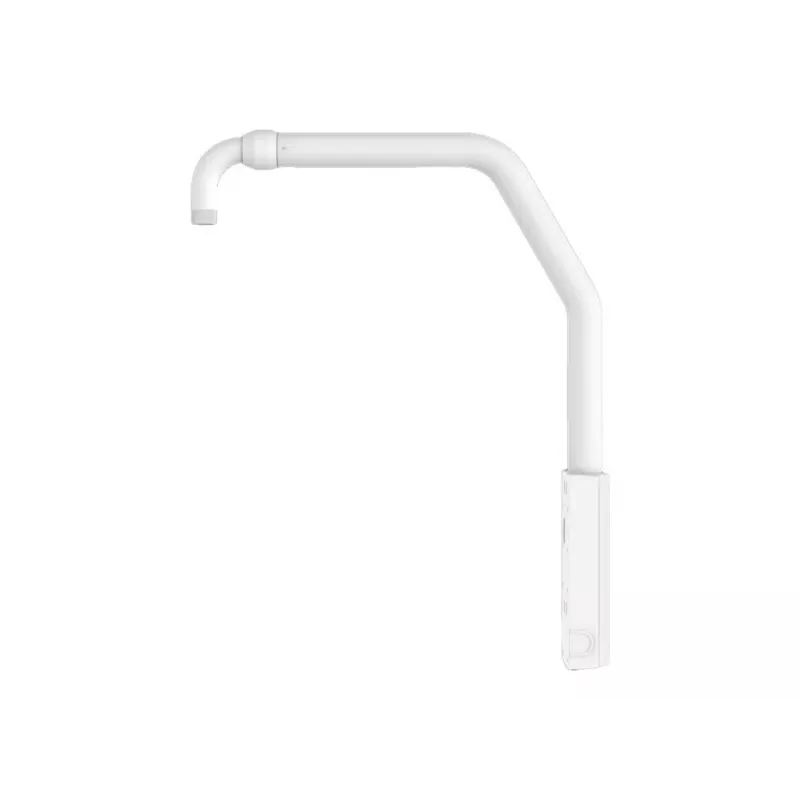

AXIS T91D62 Telescopic Parapet Mount (Axis 5507-271) is an adjustable parapet and wall mounting arm for outdoor fixed and PTZ dome cameras with 1.5” NPS thread. Constructed from high-quality aluminum with a white finish, the mount extends the camera away from the wall to clear parapet thicknesses or facade obstructions and supports rooftop access for installation and maintenance.

Advantages

The telescopic arm provides adjustable reach to accommodate varying parapet thicknesses and facade obstacles. The mount swivels 180 degrees on its own axis for safe and convenient rooftop mounting and maintenance. Made of durable aluminum with a white coating, it is lightweight yet sturdy and certified to IEC/EN/UL standards. An optional retrofit mounting bracket allows reuse of existing holes drilled for Pelco PTZ dome parapet mounts.

Suitable for

• Outdoor fixed dome cameras with 1.5” NPS thread
• Outdoor PTZ dome cameras with 1.5” NPS thread
• Parapet and wall installations where extended reach is required
• Rooftop-mounted cameras that need safe access for maintenance

Key specifications

• Model: AXIS T91D62 (Axis 5507-271)
• Material: Aluminum
• Finish: White
• Depth (arm extension): 783 mm
• Height: 1007 mm
• Weight: 5.9 kg
• Thread compatibility: 1.5” NPS
• Swivel: 180° on its own axis
• Certifications: IEC/EN/UL (as specified by manufacturer)

How to use

Mount the parapet bracket to a suitable parapet or wall using appropriate fasteners and ensure the substrate can support the weight of the mount and camera. Adjust the telescopic arm length to clear the parapet thickness or facade obstructions, then attach the camera to the 1.5” NPS thread. Use the swivel function to rotate the arm for access during rooftop installation and maintenance. If replacing an existing Pelco PTZ dome parapet mount, fit the optional retrofit mounting bracket and reuse compatible drill holes where appropriate.

Recommendations

Verify load-bearing capacity of the mounting surface and follow local installation standards. Use corrosion-resistant fasteners and perform periodic checks of fasteners and seals to maintain weather resistance and stable camera alignment.
