Kärcher BP 6 Deep Well pumppu

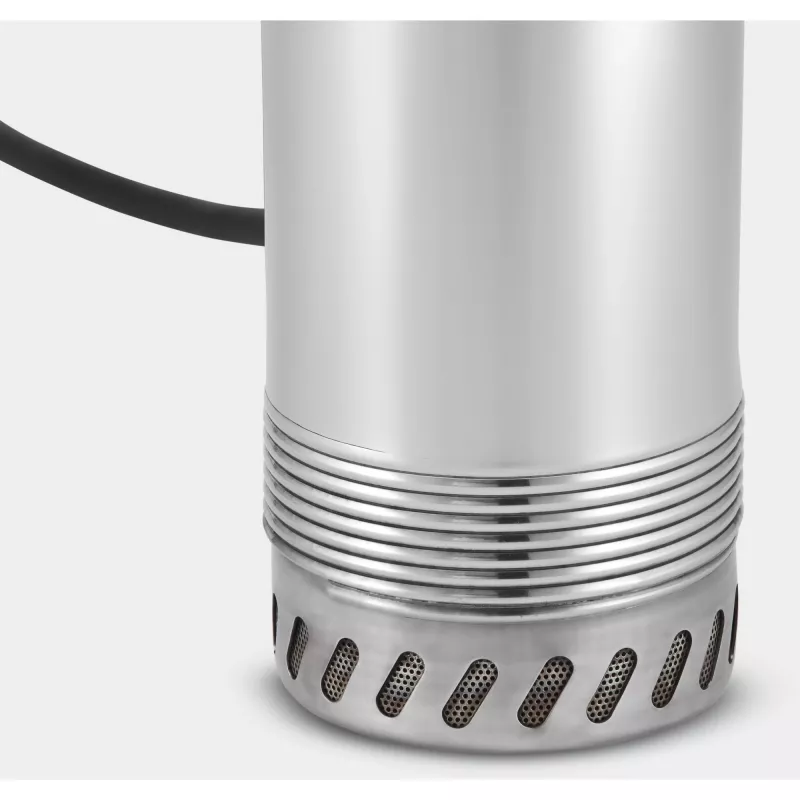

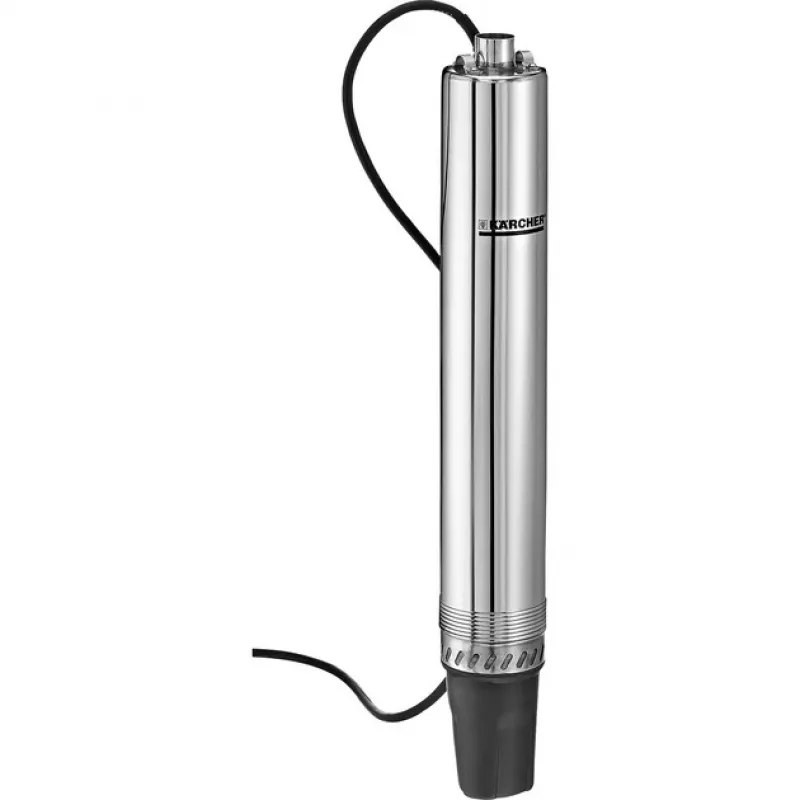

The Kärcher BP 6 Deep Well is a submersible immersion pressure pump designed for extracting groundwater from deeper wells. It is supplied with a 30 m connection cable and a 1000 W motor that delivers up to 5.5 bar of pressure and a maximum flow rate of 5000 l/h, with a maximum delivery height of 55 m. The pump casing and threaded connections are made of stainless steel for durability. An integrated pre-filter, standing leg and built-in check valve protect the water inlet and support reliable operation. The delivery scope includes a 30 m rope for lowering, a separate on/off switch at the cable end and a hose connection set compatible with 3/4" and 1" hoses.

Advantages

The stainless steel housing and threaded connections provide robust corrosion resistance. The long 30 m cable and included lowering rope allow flexible installation in deep wells. Integrated pre-filter, standing leg and check valve reduce the risk of contamination and backflow. The pump's power and specifications (1000 W, up to 5.5 bar, 5000 l/h) make it suitable for irrigation and internal processed water supply when combined with a pressure switch.

Suitable for

• Irrigation of gardens and lawns
• Water supply from deep wells for household non-potable uses
• Supplying water to pressure switch systems for processed water

Key specifications

• Brand: Kärcher (Karcher)
• Model: BP 6 Deep Well (MPN 1.645-422.0, EAN 4039784873315)
• Power: 1000 W
• Maximum pressure: 5.5 bar
• Maximum flow rate: 5000 l/h
• Maximum delivery height: 55 m
• Voltage: 230 V AC
• Cable length: 30 m (includes on/off switch at cable end)
• Material: stainless steel housing and threaded connections
• Weight: 13.7 kg
• Includes: 30 m rope, hose connection set (3/4" and 1"), integrated pre-filter and check valve

How to use

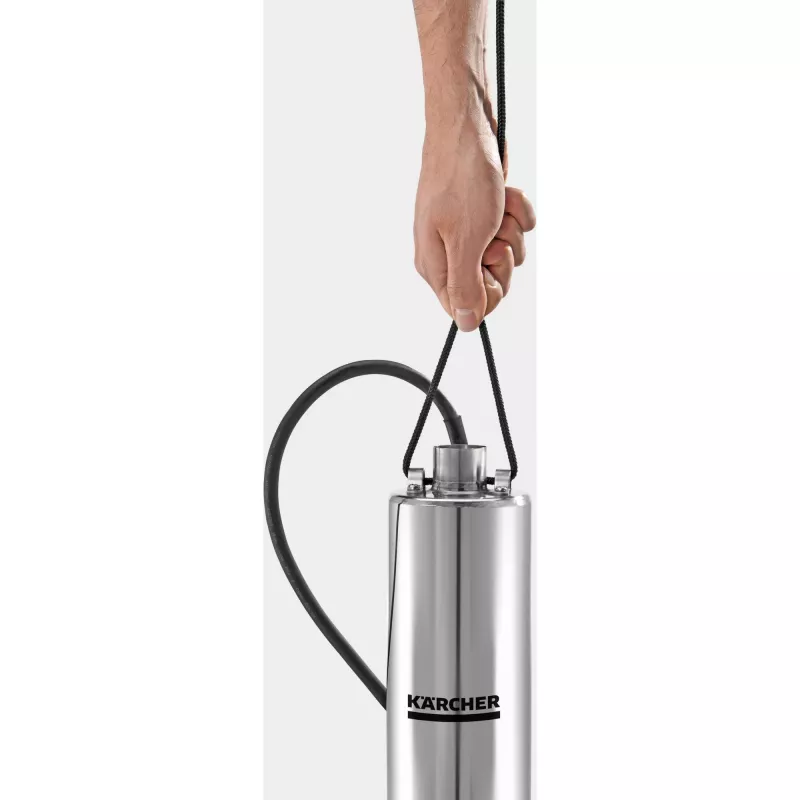

Lower the pump into the well using the supplied 30 m rope and position it with the standing leg so the inlet is free of large debris. Connect the appropriate hose using the included connection set (3/4" or 1") and connect the pump to a 230 V AC power supply. Use the separate on/off switch at the cable end to operate the pump. When integrating with a pressure switch or household processed water system, follow the system manufacturer's installation instructions and ensure all electrical connections comply with local regulations.

Recommendations

Install the pump in clean groundwater conditions where possible, and periodically inspect the pre-filter and inlet area for debris. Do not use the pump for potable water supply without appropriate water treatment. Ensure proper frost protection and remove the pump from the well if freezing conditions are expected.
