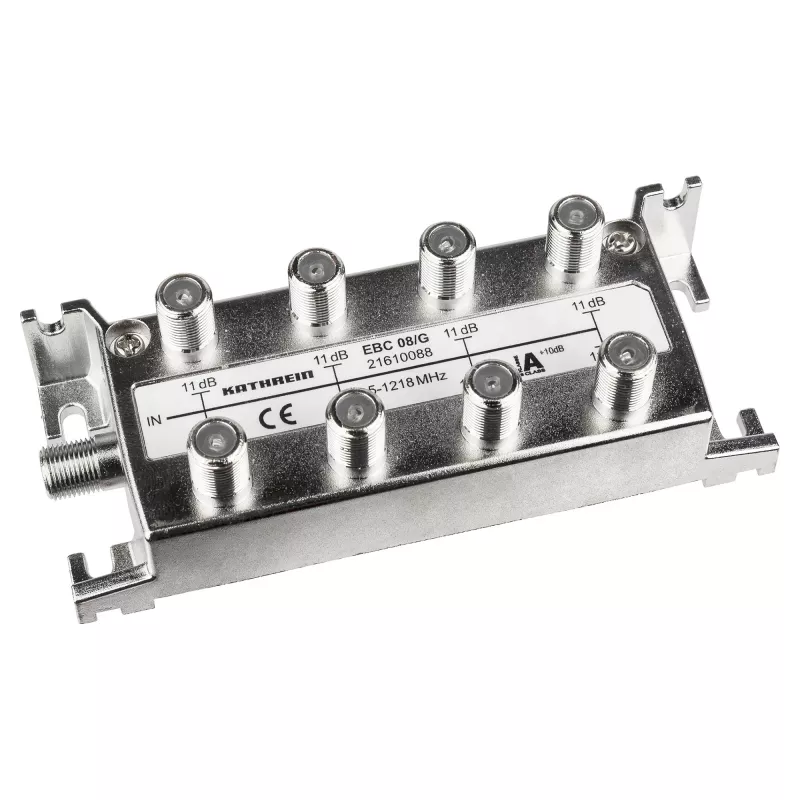

KATHREIN EBC 08/G 8-osainen SAT/TV-jakaja (21610088)

The KATHREIN EBC 08/G distributes satellite and terrestrial signals to up to eight receivers with an insertion loss of just 10.5 dB in the terrestrial band and 16.5 dB in the satellite band, ensuring strong signal levels throughout the installation.

Overview

This 8-way splitter covers the full frequency range from 5 MHz to 2400 MHz, making it suitable for combined SAT/TV distribution systems. It features F-connectors, a die-cast zinc housing, and a grounding terminal for reliable indoor operation.

What stands out

• 8 outputs for multi-room distribution
• Wide frequency range: 5–2400 MHz
• DC pass-through on one output for LNB power
• High shielding factor (>100 dB)
• Wall-mountable die-cast housing

Technical details

• Product type: SAT/TV Distributor (Splitter)
• Number of outputs: 8
• Frequency range: 5–862 MHz (terrestrial), 950–2400 MHz (satellite)
• Insertion loss: 10.5 dB (terrestrial), 16.5 dB (satellite)
• Output-output isolation: >20 dB (terrestrial), >18 dB (satellite)
• Return loss: >10 dB
• Shielding factor: >100 dB
• Impedance: 75 Ohm
• Connector type: F-connector
• DC pass-through: Yes, on one output
• Housing material: Die-cast zinc
• Application: Indoor
• Grounding terminal: Yes
• Mounting type: Wall mountable

Our verdict

A robust and reliable 8-way distributor for professional satellite and terrestrial TV installations, offering low loss and excellent isolation.
