Keystone-moduuli DC 5,5 x 2,5 mm liitin DeLOCK 86850

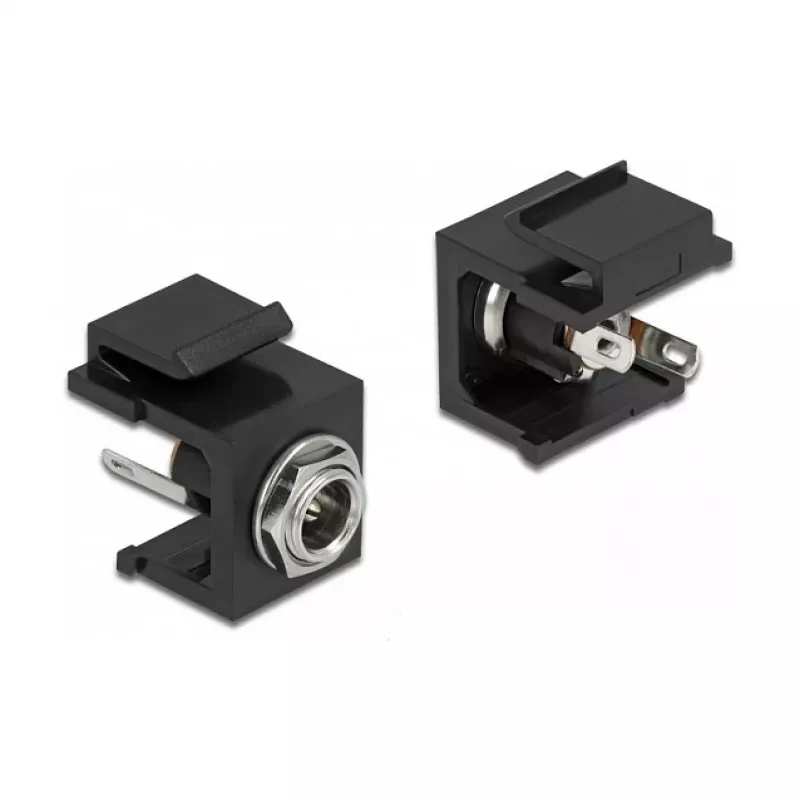

This DC female bulkhead from DeLOCK provides a standard 5.5 x 2.5 mm female DC jack in a flat keystone-style module for easy installation into housings, keystone patch panels, face plates or surface-mount boxes. The compact module (approx. 20.7 mm × 22 mm × 16.3 mm) is supplied in black and sold individually, allowing simple integration when a panel-mounted DC power inlet is required.

Advantages

The keystone module offers a standardized form factor for snap-in mounting, a flat design that saves panel depth, and a common 5.5 x 2.5 mm female DC connector compatible with many power plugs. Its compact dimensions and black finish make it suitable for discreet installation in various enclosures and faceplates.

Suitable for

• Panel-mounted DC power input for consumer electronics
• Keystone patch panels and face plates
• Surface-mount boxes and small housings
• Retrofit or custom enclosure projects requiring a 5.5 x 2.5 mm DC inlet

Key specifications

• Connector type: Female DC jack 5.5 x 2.5 mm
• Module format: Keystone-style bulkhead
• Dimensions (W × D × H): approx. 20.7 mm × 22 mm × 16.3 mm
• Color: Black
• Brand: DELOCK, MPN: 86850, EAN: 4043619868506

How to use

Insert the module into a compatible keystone opening or snap-in slot of a panel, face plate or surface-mount box until it locks in place. From the rear side, connect the device wiring to the DC jack according to the device's polarity and power requirements. Ensure secure connections and, if necessary, provide strain relief for the cable behind the panel before powering the device.

Recommendations

Verify the voltage, current rating and polarity of the device and power supply before use; do not exceed the connector’s ratings. Use appropriate insulation and strain relief for permanent installations.
