Keystone-moduuli DeLOCK 86706

The DeLOCK 86706 keystone module is a compact, flat connector insert with a black finish designed for panel or case mounting. It provides a VGA (D-Sub) connector in a keystone format, allowing easy integration of video connections into panels with D-type openings.

Advantages

The module's slim profile and standardized keystone shape make it simple to install in panels or cases with D-type openings. Its VGA (D-Sub) connector supports common analog video connections and the black finish offers a discreet appearance. The small dimensions (25 mm × 31 mm × 18 mm) allow mounting in tight spaces.

Suitable for

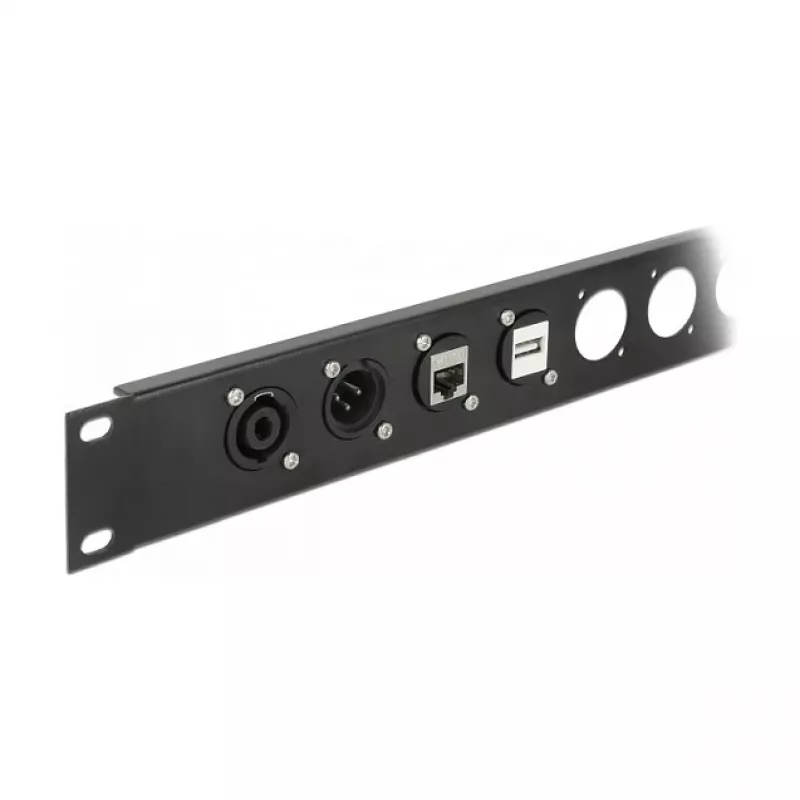

• Integrating VGA video ports into AV panels or custom enclosures
• Retrofit or patch panels for analog video routing
• Professional audio/video racks where D-type openings are used

Key specifications

• Brand: DELOCK
• Model / MPN: 86706
• EAN: 4043619867066
• Connector: VGA (D-Sub)
• Dimensions: 25 mm (W) × 31 mm (D) × 18 mm (H)
• Finish: Black
• Pack quantity: 1
• Manufactured in: China

How to use

Mount the keystone module into a compatible keystone opening in a panel or case until it snaps or seats securely. From the rear, attach the VGA cable or wiring according to standard D-Sub pin assignments. Ensure the module is supported by the panel to avoid strain on the connector during cable handling.

Recommendations

The module is intended for use in panels or enclosures with D-type keystone openings and for analog VGA connections; avoid exposing it to excessive mechanical stress or moisture and confirm cable pinouts before connection.
