Keystone-moduuli SC Simplex -liitäntä SC Simplex -liitäntään DeLOCK 86814

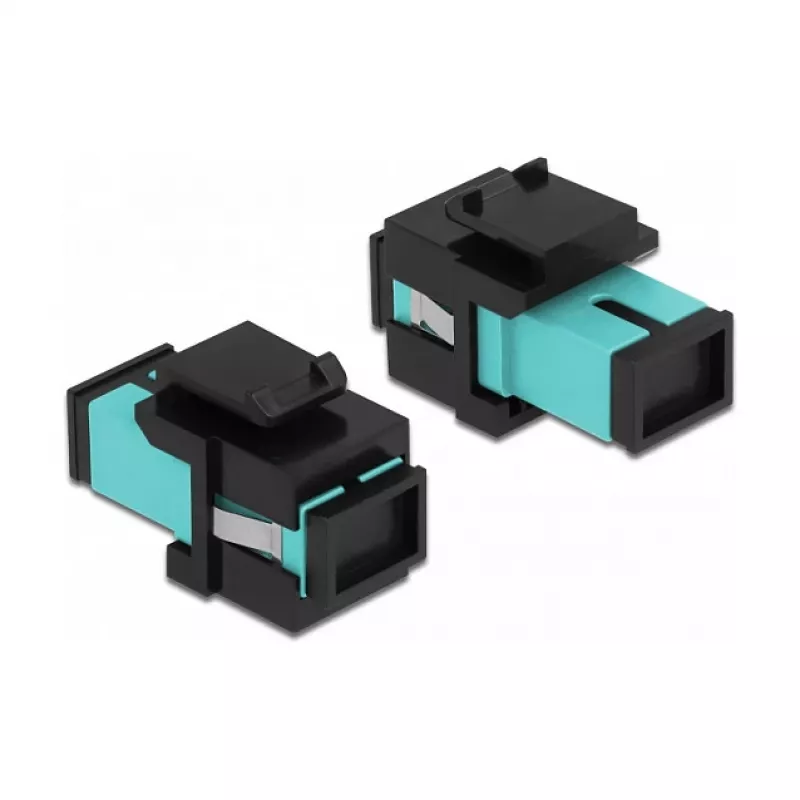

The DeLOCK Keystone Module SC Simplex female to SC Simplex female (model 86814) is a compact snap-in module for extending fibre optic connections. It has a flat construction in aqua and black, fitted with two SC simplex female connectors and designed to fit standard keystone openings such as patch panels, faceplates or surface-mount boxes. Dimensions: width 16.5 mm, depth 27.4 mm, height 21.9 mm.

Advantages

The module’s standardised keystone dimensions allow easy snap-in installation and ensure compatibility with common frames and boxes. Using SC simplex female connectors provides stable single-fibre connections and simple mating with SC simplex plugs. Its flat form factor minimises space usage in panels and wall plates.

Suitable for

• Extending single-fibre SC optical links
• Installation in keystone patch panels
• Use in faceplates or surface-mount boxes

Key specifications

• Connectors: SC simplex female to SC simplex female
• Colour: aqua and black
• Dimensions: 16.5 mm (W) × 27.4 mm (D) × 21.9 mm (H)
• Manufacturer: DELOCK, MPN 86814, EAN 4043619868148

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect SC simplex fibre plugs to each SC female port to extend or join fibre optic runs. Ensure connectors are clean before mating to maintain signal quality. For removal, press the module’s retaining clips and pull it out from the panel or faceplate.

Recommendations

Use in environments with compatible keystone cutouts and handle fibre connectors with appropriate dust caps and cleaning tools to avoid signal loss or contamination.
