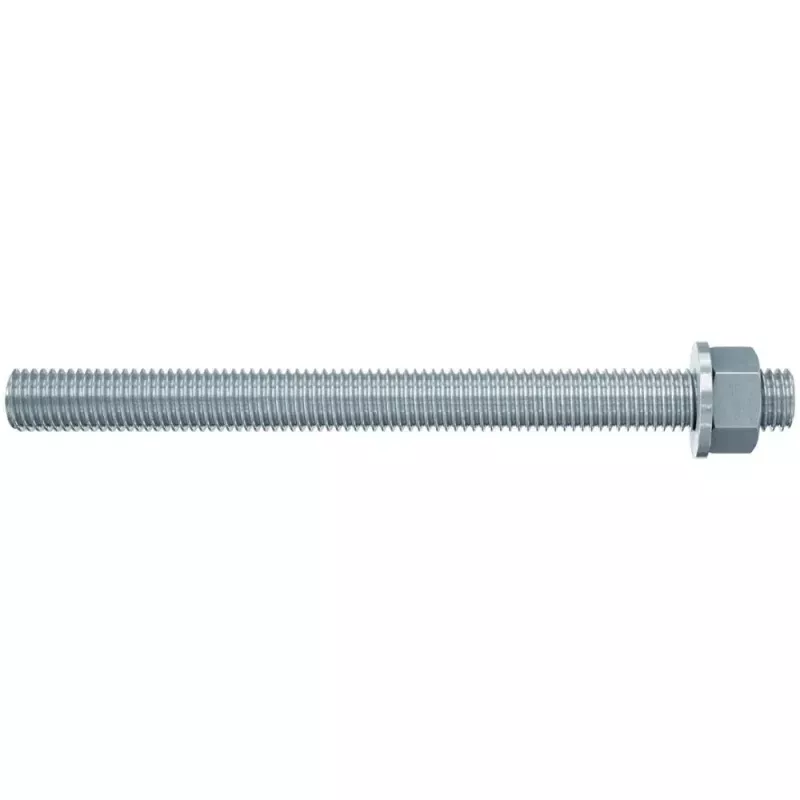

Kierretanko Fischer 90278

The fischer fully threaded rod FIS A (MPN 90278) is manufactured from zinc-plated steel grade 5.8 and is supplied in boxes of 10 pieces. With a thread diameter corresponding to M10 and a length of 110 mm, this threaded rod is a system component designed for use with fischer injection mortars. When combined with the appropriate fischer injection mortar, the FIS A threaded rod is approved for use in all substrate types and is suitable for dry interior fixings.

Advantages

The fully threaded rod FIS A is compatible with almost every fischer injection mortar (except the Highbond special mortar FIS HB), allowing selection of the mortar according to application requirements. The FIS A range covers threaded sizes from M6 to M30, providing flexibility for different load and installation needs. For system performance and load-bearing capacity, the approval and instructions of the chosen injection mortar should be followed.

Suitable for

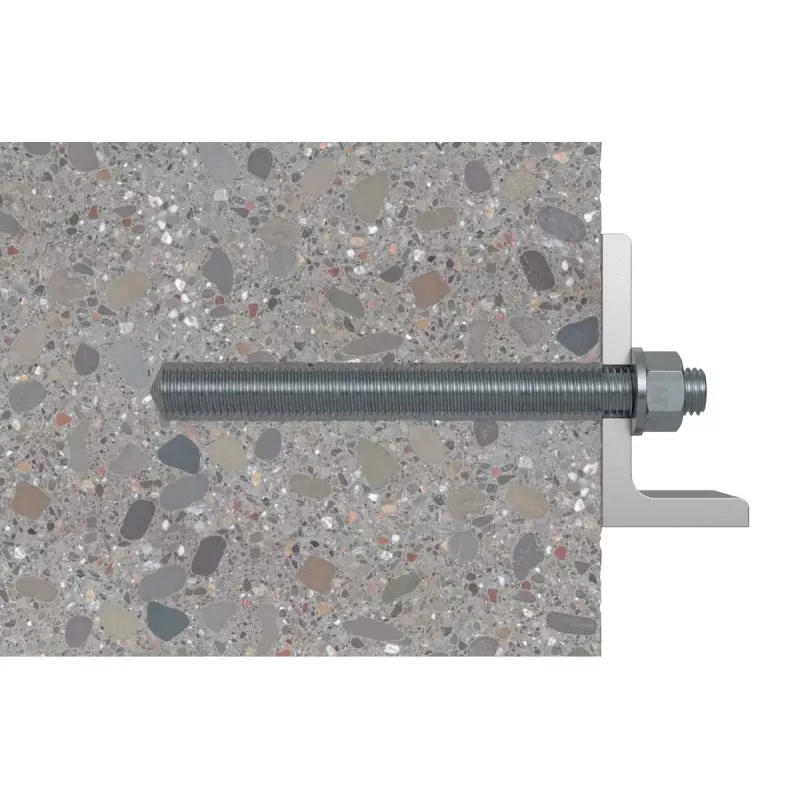

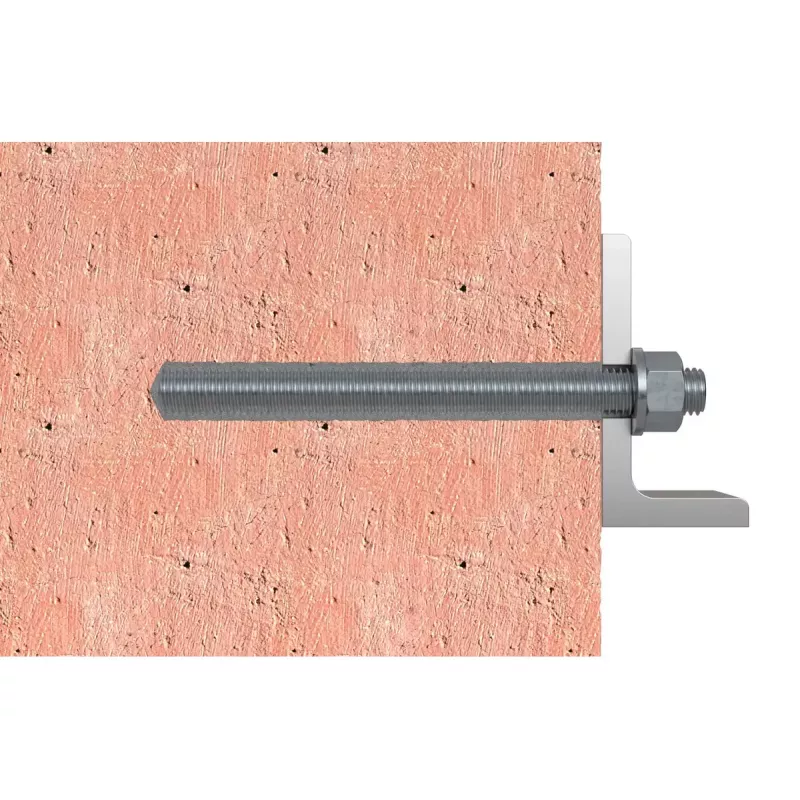

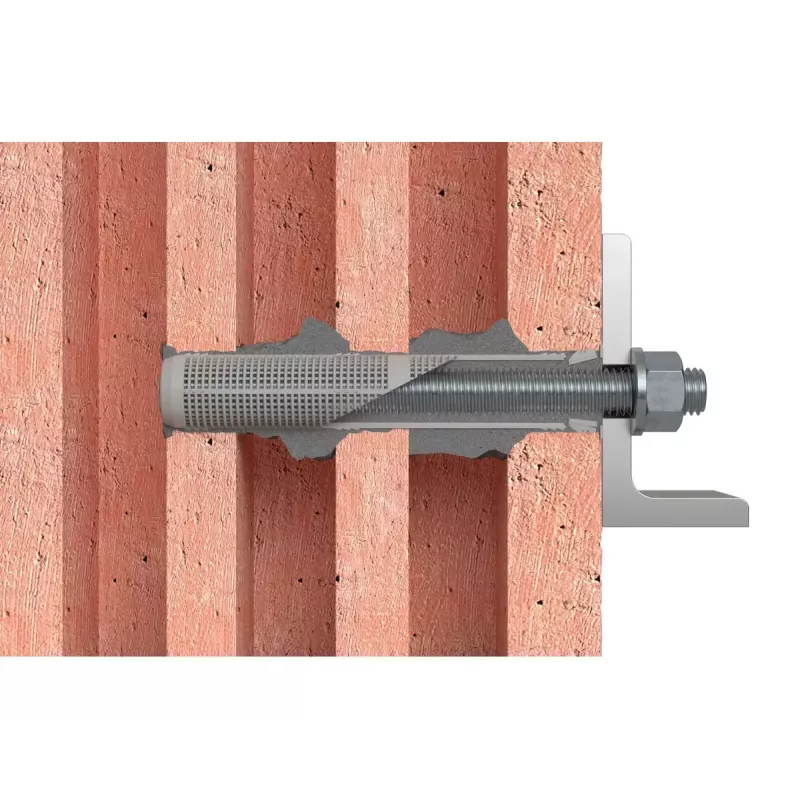

• Anchoring threaded connections in concrete, masonry and hollow substrates when used with approved fischer injection mortar
• Indoor dry-area fixings requiring corrosion-protected steel anchors
• Construction and renovation tasks where M10 fully threaded rods are specified

Key specifications

• Brand: FISCHER
• Manufacturer part number (MPN): 90278
• EAN: 4006209902783
• Material: Zinc-plated steel, grade 5.8
• Thread size: M10
• Thread diameter (approx.): 10 mm
• Length: 110 mm
• Packaging: 10 pieces per box
• Compatibility: For use with fischer injection mortars (except FIS HB)

How to use

Drill the required hole to the diameter and depth specified by the chosen fischer injection mortar’s approval and technical documentation. Clean the drill hole thoroughly (blow-out and brush) to remove dust and debris before injecting the mortar. Inject the appropriate amount of fischer injection mortar, then insert the fully threaded rod FIS A and allow the mortar to cure according to the mortar manufacturer’s instructions. After curing, apply the intended load within the approved values for the system.

Recommendations

For maximum load-bearing capacity and compliance with approvals, always follow the specific approvals and installation instructions of the fischer injection mortar used and perform hole cleaning as recommended.
