Kiinnike Axis 01783-001

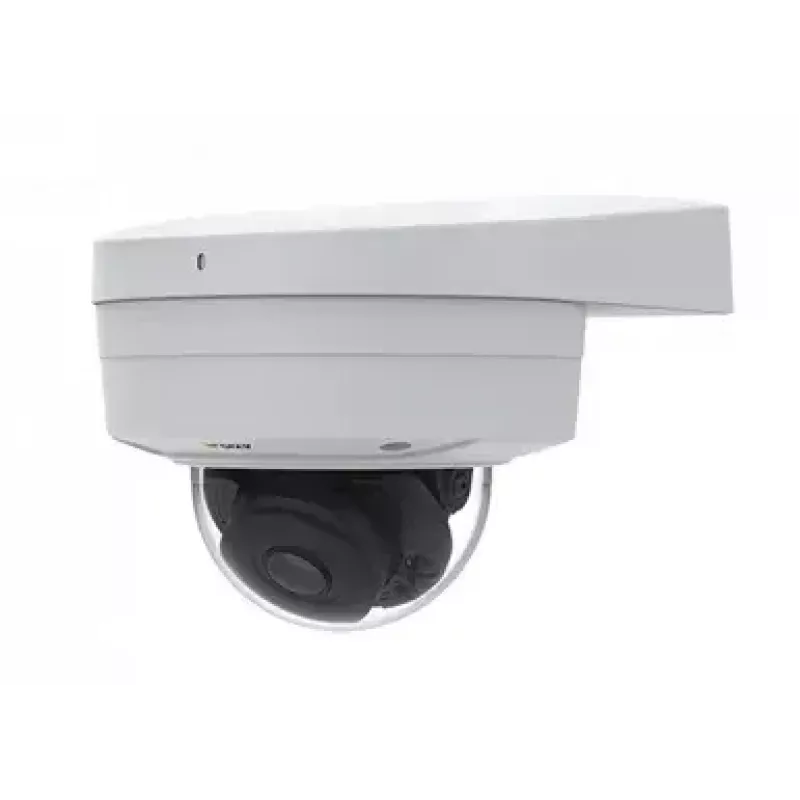

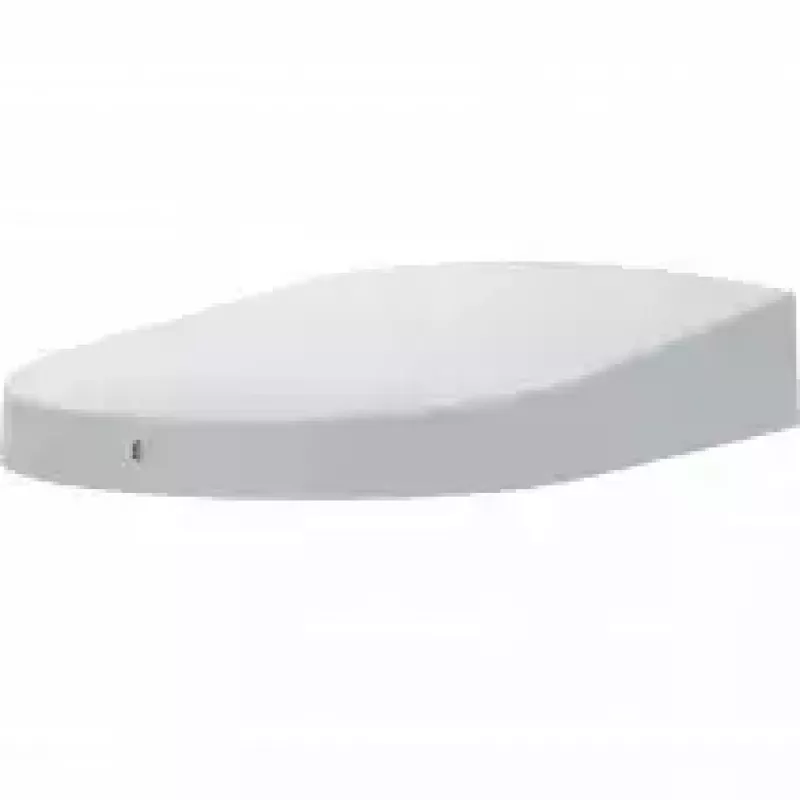

AXIS TP3101 Pendant Wall Mount (Model 01783-001) provides a clean pendant-style mounting solution for compatible AXIS P32-V and P32-LV cameras without requiring additional pendant kits. The mount has a concealed design that integrates with the wall and includes an internal compartment for secure storage of connectivity devices, a microphone and an AXIS I/O Indication LED. Its compact form factor enables precise positioning of the camera, for example above shop fronts when using Axis retail analytics such as people counting and face recognition.

Advantages

The mount supports direct pendant-style installation of AXIS P32-V and P32-LV cameras, reducing the need for extra accessories. Its concealed mounting and white finish help the unit blend with interior and exterior walls. An internal compartment keeps connectors and small devices protected and tidy, and the design allows accurate camera placement for targeted surveillance tasks.

Suitable for

• Retail environments (shop fronts) using Axis analytics for people counting and face recognition
• Indoor and sheltered outdoor surveillance where a discreet wall-mounted pendant look is desired
• Installations requiring secure storage of connectivity devices and small accessories

Key specifications

• Manufacturer: AXIS
• Model / MPN: 01783-001 (AXIS TP3101 Pendant Wall Mount)
• Compatibility: AXIS P32-V and P32-LV camera series
• Color / finish: white

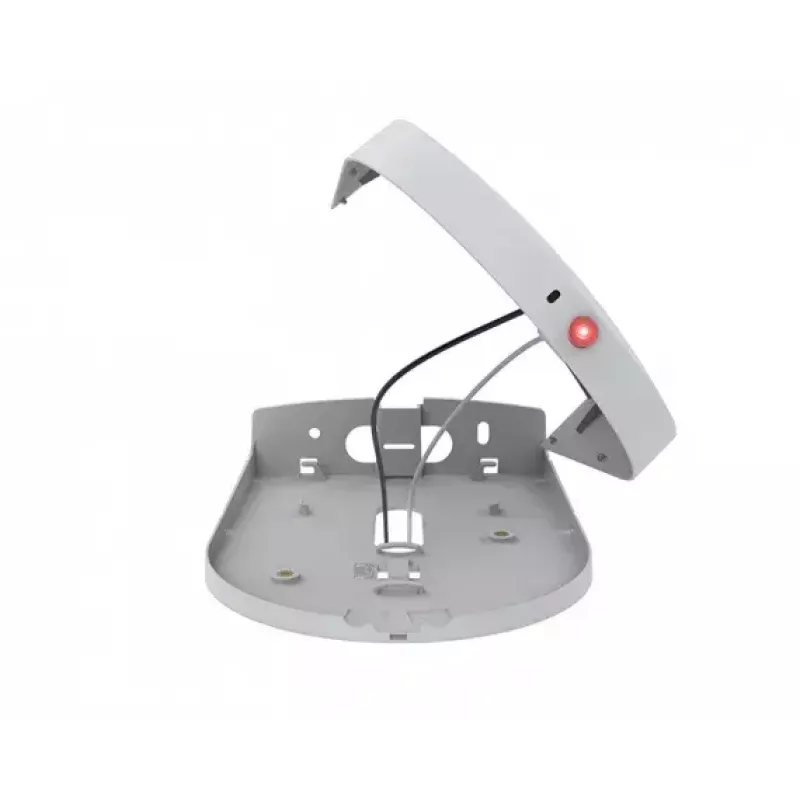

• Features: concealed wall mounting, internal compartment for connectors/microphone/AXIS I/O Indication LED
• Typical use: wall-mounted pendant-style camera positioning

How to use

Mount the AXIS TP3101 to a suitable wall surface following the manufacturer’s installation instructions and using appropriate fixings for the substrate. Route the camera cabling into the mount and place connectors, microphone and I/O LED inside the internal compartment before securing the camera. Attach the compatible AXIS P32-V or P32-LV camera in pendant orientation and adjust its position to obtain the desired field of view.

Recommendations

Use appropriate wall anchors and weatherproofing for outdoor or exposed installations. Verify compatibility with your specific AXIS P32-V / P32-LV camera model and follow Axis installation guidelines to ensure secure mounting and correct placement for analytics functions.
