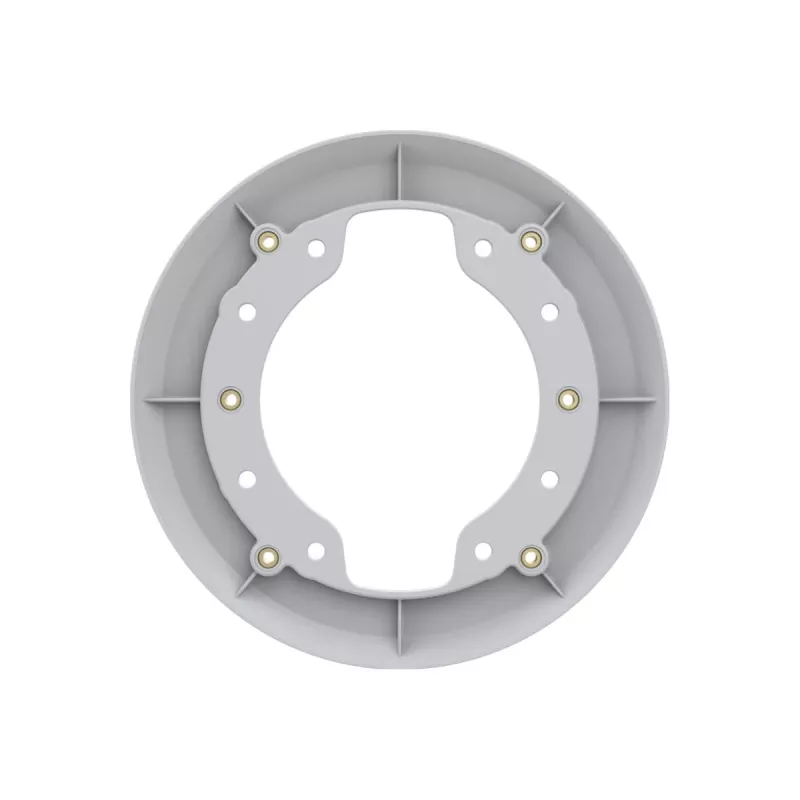

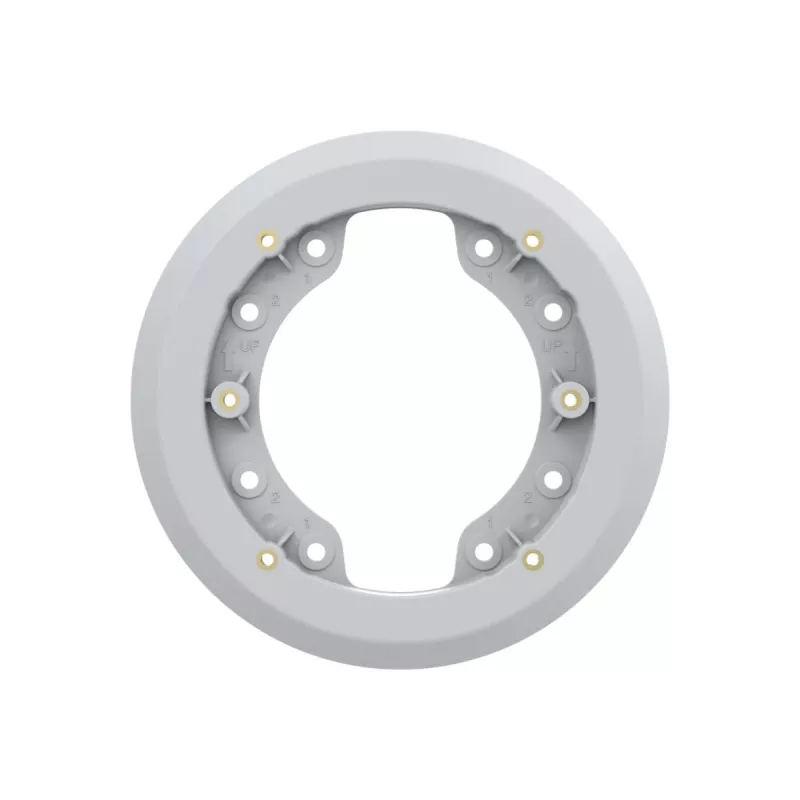

Kiinnityssovitin AXIS 02083-001

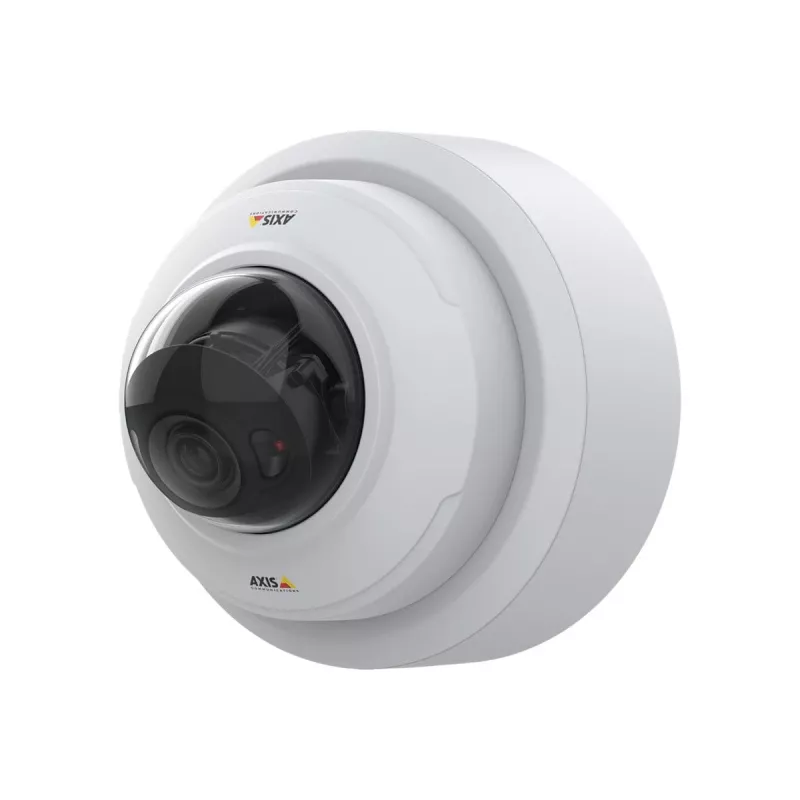

AXIS TP1601 Adapter Plate is a mounting accessory used with the AXIS TP3603 Conduit Back Box to provide a neater installation when fitting cameras from the AXIS P14 and M42 Series. The adapter plate is also compatible with the outdoor-ready AXIS T94S01P Conduit Back Box. The accessory is supplied in white and is intended to simplify mounting and improve the visual integration of the camera installation.

Advantages

The mount adapter offers compatibility with multiple conduit back boxes and AXIS camera series, reducing the need for custom brackets. Its white finish helps the mounted equipment blend with light-coloured surfaces, while the standard dimensions maintain alignment and provide a stable base for the camera body.

Suitable for

• AXIS P14 Series cameras
• AXIS M42 Series cameras
• Installation with AXIS TP3603 Conduit Back Box
• Installation with AXIS T94S01P Conduit Back Box (outdoor-ready)

Key specifications

• Manufacturer: AXIS
• Manufacturer part number (MPN): 02083-001
• EAN: 7331021072312
• Colour: White
• Compatible products: AXIS TP3603, AXIS T94S01P, AXIS P14 and M42 Series

How to use

Mount the AXIS TP1601 Adapter Plate onto the AXIS TP3603 or AXIS T94S01P Conduit Back Box following the back box installation instructions. Align the adapter plate with the back box fixing points, secure it with the appropriate screws, and then attach the camera body to the adapter plate according to the camera’s mounting procedure. Verify alignment and tighten fasteners to ensure a stable installation.

Recommendations

Use the adapter plate with compatible AXIS back boxes and camera series only. For outdoor installations, use the AXIS T94S01P Conduit Back Box and verify that all seals and gaskets are correctly fitted to maintain weather resistance.
