Kindermann Premium 150 kattoteline

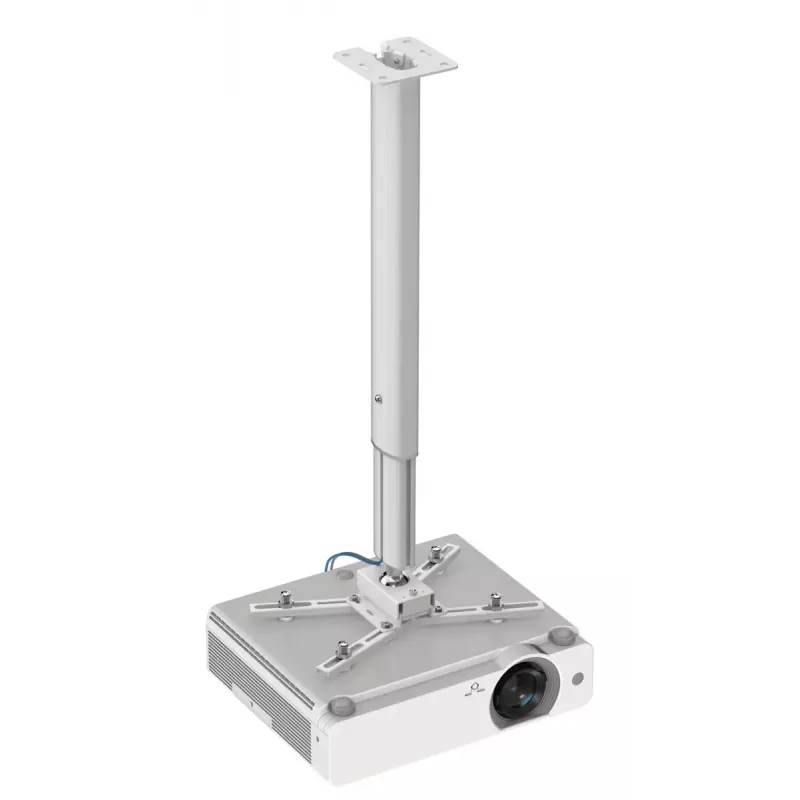

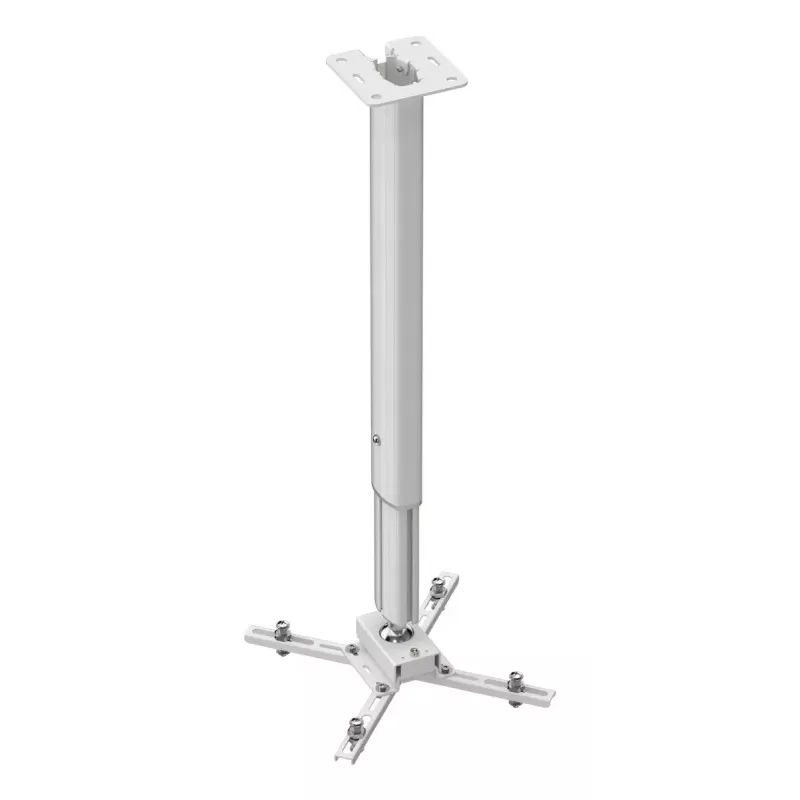

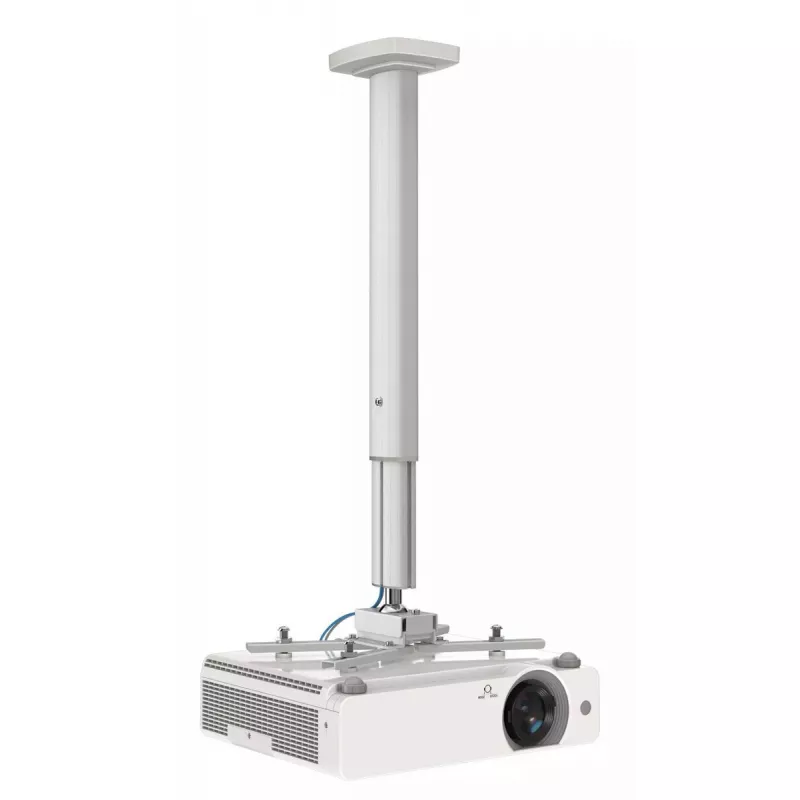

The Kindermann Premium 150 ceiling mount is designed for secure installation of data and video projectors. Finished in RAL 9003 white, the mount provides a telescopic distance to the ceiling from 86 to 150 cm and supports projectors up to 25 kg. The construction includes an anodized aluminium profile with a fully covered internal cable channel and an aluminium ball-point joint for flexible projector alignment. TÜV/GS certification confirms compliance with safety standards. Scope of delivery: screw set for projector mounts (M3, M4, M5, M6) including height-adjustable distance elements.

Advantages

The pre-assembled design enables quick mounting and the stepless telescopic height adjustment allows fine positioning between 86 and 150 cm. The anodized aluminium profile conceals cables internally for a neat installation. The aluminium ball-point joint with quick change system permits tilting the projector ±20° in all directions and rotation of ±180°, while the mount supports up to 25 kg. Custom-made columns up to 300 cm are available on request.

Suitable for

Key specifications

How to use

Attach the pre-assembled mount to a suitable ceiling structure following the mounting points and local building regulations. Adjust the telescopic column to the required distance between 86 and 150 cm, secure the column length, and route projector cables through the internal channel. Fix the projector using the supplied screw set (M3–M6) and height-adjustable distance elements, then use the aluminium ball-point joint to set tilt and rotation for correct image alignment.

Recommendations

Ensure the ceiling substrate and fasteners are rated for the combined weight of the mount and projector (max. 25 kg). For installations above standard loads or non-standard ceilings, consider professional mounting services. If a longer column is required, request a custom version (up to 300 cm) from the manufacturer.
