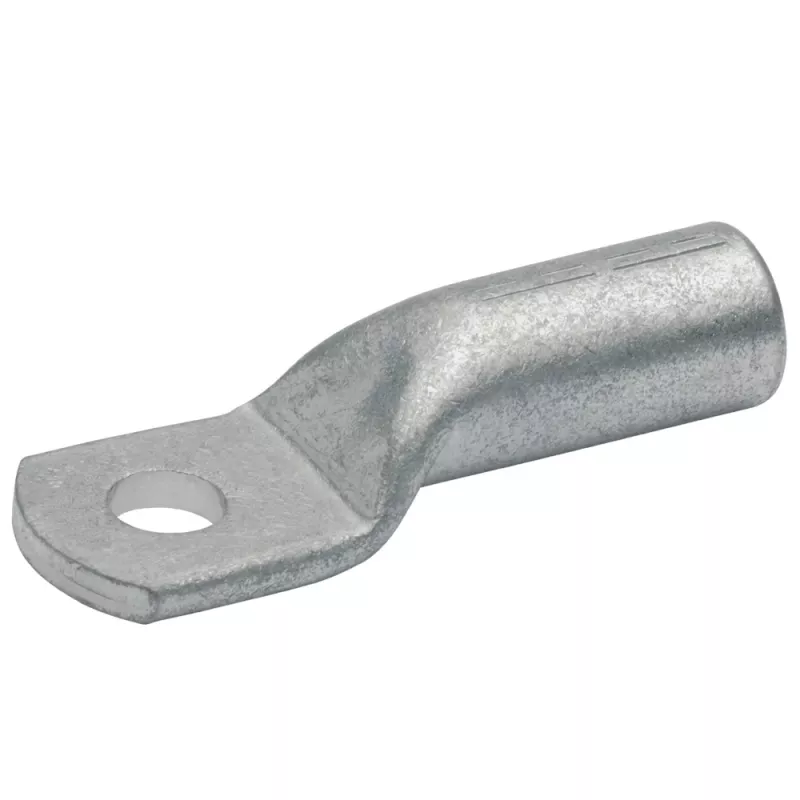

Klauke 108R10 tinattu kuparinen putkiliitin 95 mm² M10

The Klauke 108R10 is a high-quality tin-plated copper tubular cable lug designed for reliable and durable electrical connections. Manufactured by Klauke, a trusted brand in electrical installation, this cable lug is suitable for copper conductors with a cross-section of 95 mm² and features a bolt hole diameter of 10.5 mm for M10 bolts. It meets DIN 46235 standards and is ideal for use in power distribution, industrial machinery, and electrical panels.

Advantages

Tin-plated surface provides excellent corrosion resistance and long-term conductivity. Electrolytic copper (E-Cu) ensures high electrical performance. Straight (180°) design allows for easy and space-saving installations. Hexagonal crimping ensures a secure and consistent connection.

Suitable for

• Power cables and conductors in electrical installations
• Industrial machinery and control panels
• Renewable energy systems (solar, wind)
• Automotive and marine electrical systems

Key specifications

• Cable cross-section: 95 mm²
• Bolt hole diameter: 10.5 mm (for M10 bolts)
• Material: Electrolytic copper (E-Cu), tin-plated
• Total length: 63 mm
• Barrel length: 35 mm
• Palm thickness: 3.5 mm
• Palm width: 25 mm
• Barrel inner diameter: 13.5 mm
• Barrel outer diameter: 16.5 mm
• Standard: DIN 46235
• Temperature range: -55°C to +150°C
• Voltage rating: Up to 1000 V

Recommendations

For optimal performance, use with appropriate crimping tools and follow manufacturer guidelines. Ensure proper cable preparation and insertion before crimping.
