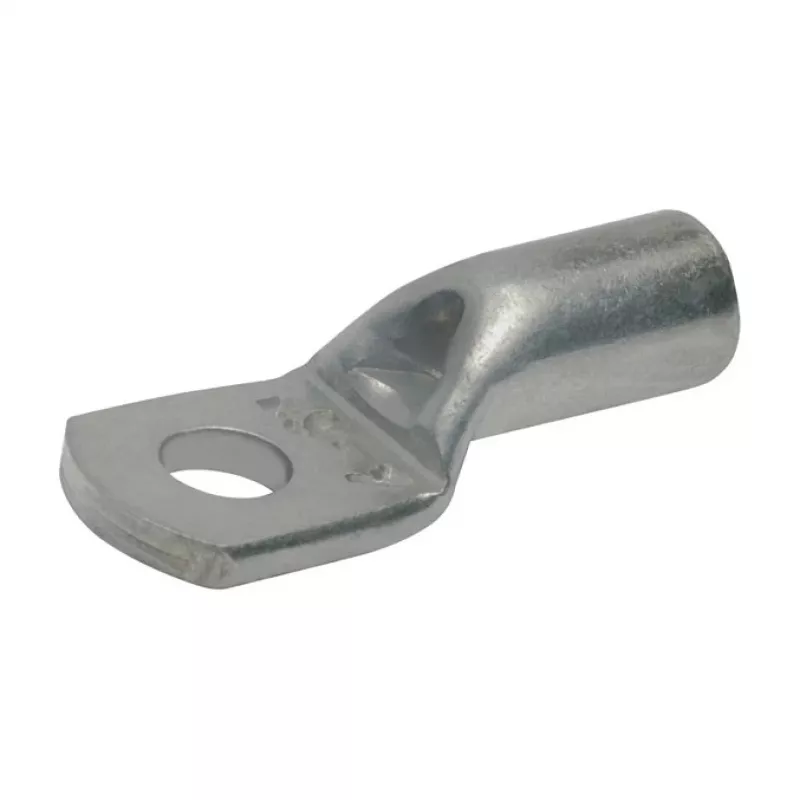

Klauke 93R4 rengasliitin - putki - tinattu kupari - 2,5 mm² - M4 pultinreikä

The Klauke 93R4 is a high-quality, uninsulated ring terminal designed for reliable and secure electrical connections. Manufactured from electrolytic copper with a tin-plated surface, this tubular ring terminal ensures excellent conductivity and corrosion resistance. It is suitable for cable cross-sections of 2.5 mm² and features a bolt hole diameter of 4.3 mm (M4). The terminal is crimped using a hexagonal crimping method, providing a strong and durable connection. Compliant with DIN 46235 and RoHS, it operates in a wide temperature range from -55°C to +150°C.

Advantages

Tin-plated copper construction offers superior corrosion resistance and long-lasting performance. The tubular barrel design allows for easy insertion of stranded or solid conductors. Hexagonal crimping ensures a gas-tight connection, reducing resistance and preventing loosening. Suitable for a wide range of industrial and electrical applications.

Suitable for

• Electrical panel wiring
• Control cabinets
• Automotive and marine electrical systems
• Industrial machinery connections
• Power distribution systems

Key specifications

• Cable Cross-Section: 2.5 mm²
• Bolt Hole Diameter: 4.3 mm
• Bolt Size: M4
• Material: Electrolytic Copper (E-Cu), Tin-plated
• Standard: DIN 46235
• Connection Type: Ring Terminal
• Barrel Type: Tubular
• Insulation: Uninsulated
• Number of Bolt Holes: 1
• Crimping Type: Hexagonal Crimping
• Operating Temperature Range: -55°C to +150°C
• Total Length: 20.5 mm
• Palm Width: 8.0 mm
• Barrel Outer Diameter: 4.5 mm
• Barrel Inner Diameter: 2.5 mm
• Palm Thickness: 0.8 mm
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with a compatible hexagonal crimping tool. Ensure the conductor is fully inserted into the barrel before crimping. This terminal is ideal for applications requiring a reliable, low-resistance connection.
