EFB Elektronik ECOFIBER -duplex-johdin ST-ST OM1 62.5/125µm LSZH oranssi 3,0 mm 20 m

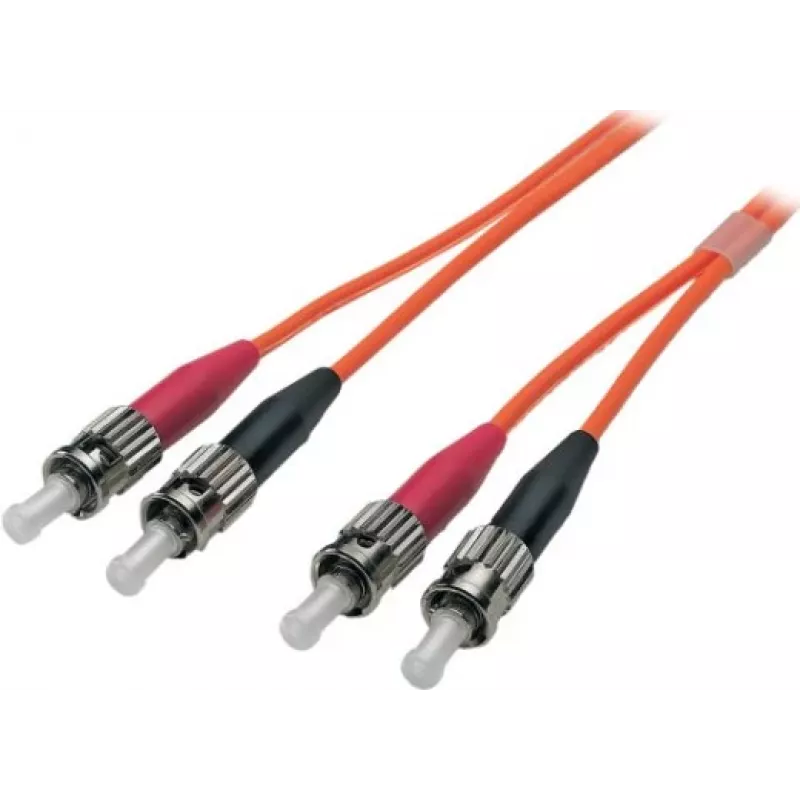

The EFB Elektronik ECOFIBER Duplex Jumper ST-ST is a high-quality fiber optic patch cable designed for reliable data transmission in LAN, SAN, data center, and telecommunications applications. With OM1 multimode fiber, 62.5/125µm core/cladding, and duplex ST connectors, this cable ensures optimal performance for short to medium distance connections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the orange color and 3.0mm diameter offer easy identification and flexibility.

Advantages

This cable delivers excellent signal integrity and durability. The LSZH jacket reduces toxic smoke emissions in case of fire, making it ideal for use in public buildings, offices, and data centers. The duplex configuration allows simultaneous bidirectional communication, and the ST connectors provide secure, stable connections.

Suitable for

• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Data centers
• Telecommunications infrastructure
• Fiber optic patch panels and equipment

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode (MM)
• Fiber Standard: OM1
• Core Diameter: 62.5 µm
• Cladding Diameter: 125 µm
• Connector A: ST
• Connector B: ST
• Cable Configuration: Duplex
• Cable Length: 20 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 3.0 mm

Recommendations

For optimal performance, ensure that the connectors are properly cleaned before installation. This cable is compatible with standard ST fiber optic interfaces and is suitable for use with OM1-rated equipment. Always handle fiber optic cables with care to avoid damage.
