KLAUKE KLAU puristuskaapelikenkä 10 mm² M6 100 kpl (16526)

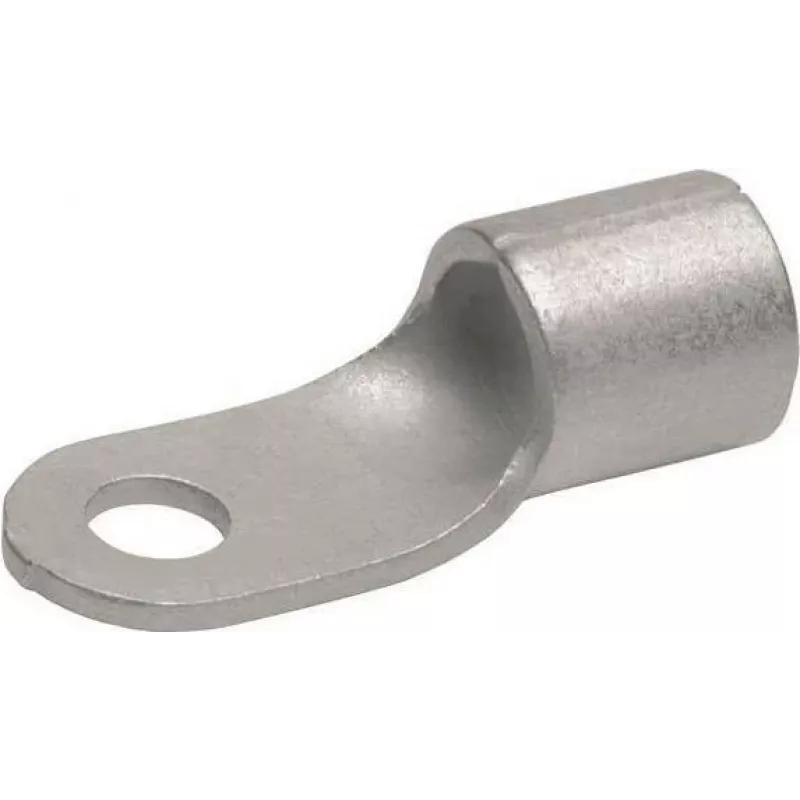

Electricians and panel builders working on industrial power distribution often need a reliable way to terminate stranded copper conductors. The KLAUKE KLAU crimp cable lug 16526 is a pack of 100 uninsulated copper tube terminals, each with a 10 mm² cross-section and an M6 bolt hole. They are made from electrolytic copper (E-Cu) and feature a funnel entry for easy conductor insertion. The lugs conform to DIN 46235 and are suitable for crimping with standard tools.

Key specifications

• Cable cross-section: 10 mm²
• Bolt hole diameter: M6 (6.4 mm)
• Material: Electrolytic copper (E-Cu), uninsulated
• Quantity: 100 pieces per pack
• Design: Tube type with funnel entry
• Standard: DIN 46235
• Temperature range: -50°C to +150°C
• RoHS compliant and halogen-free

Why choose it

These lugs provide a secure, low-resistance connection when properly crimped. The funnel entry speeds up assembly, and the pure copper construction ensures excellent conductivity. The large pack size reduces cost per termination for high-volume work.

Ideal use cases

• Electrical installations in switchgear and control panels
• Automotive and marine wiring repairs
• Industrial machinery power connections
• Battery cable terminations

Good to know

The lugs are uninsulated, so heat-shrink tubing or other insulation may be required. Use a crimping tool that matches the lug size and conductor. The M6 hole fits standard 6 mm bolts. Store in a dry place to prevent oxidation.
