Koaksiaaliliitin DeLOCK 89782

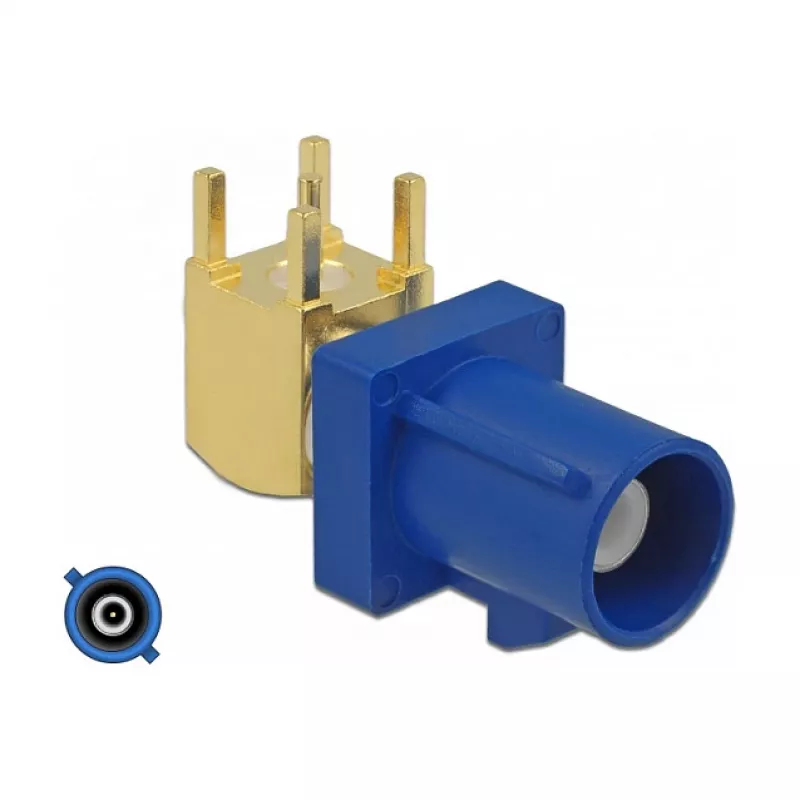

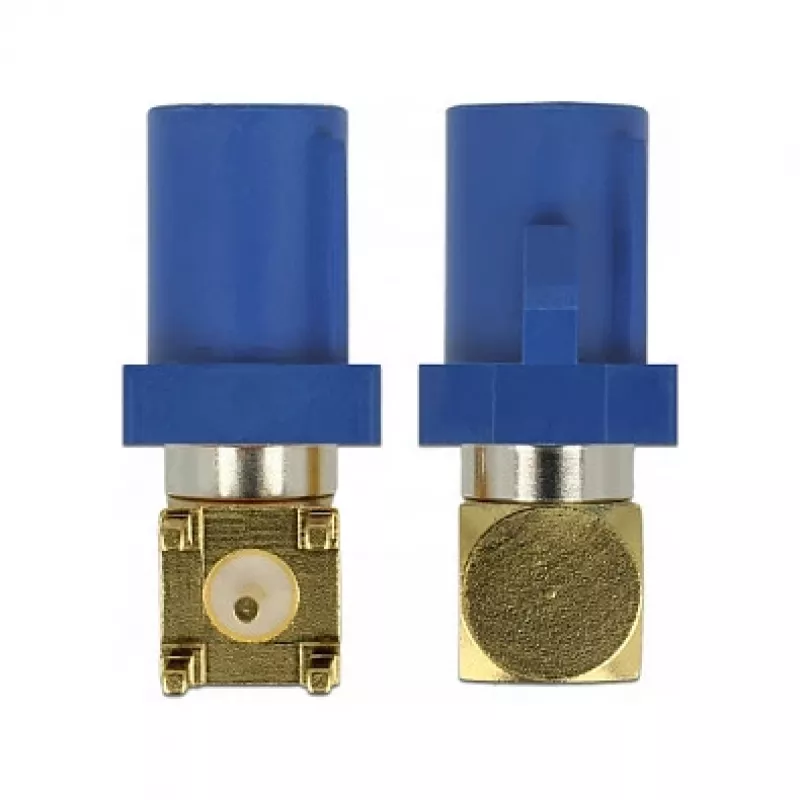

The DeLOCK 89782 coaxial connector is a compact FAKRA Z male plug with a 90° angle, designed for reliable radio frequency connections in confined spaces. With a width of 11.5 mm and a depth of 21.3 mm, this single-unit connector is supplied in a polybag and is suitable for use where secure coaxial interfacing is required.

Advantages

The angled FAKRA Z male design enables installation in tight or recessed locations while maintaining a stable RF connection. Its small footprint and metal components in blue, gold and stainless steel colours provide mechanical durability and consistent signal transmission. The packaged single unit simplifies inventory and replacement tasks.

Suitable for

Key specifications

How to use

Align the FAKRA Z male connector with the corresponding female socket and insert carefully at the 90° orientation to avoid bending the cable. Apply steady pressure until the connector seats securely. Verify the mechanical fit and check RF signal continuity with appropriate testing equipment after installation.

Recommendations

Use the connector in installations that match FAKRA Z specifications and ensure mating parts are clean and undamaged. Avoid excessive torque or bending near the connector to maintain signal integrity and longevity.
