Koaksiaaliliitin DeLOCK 90358

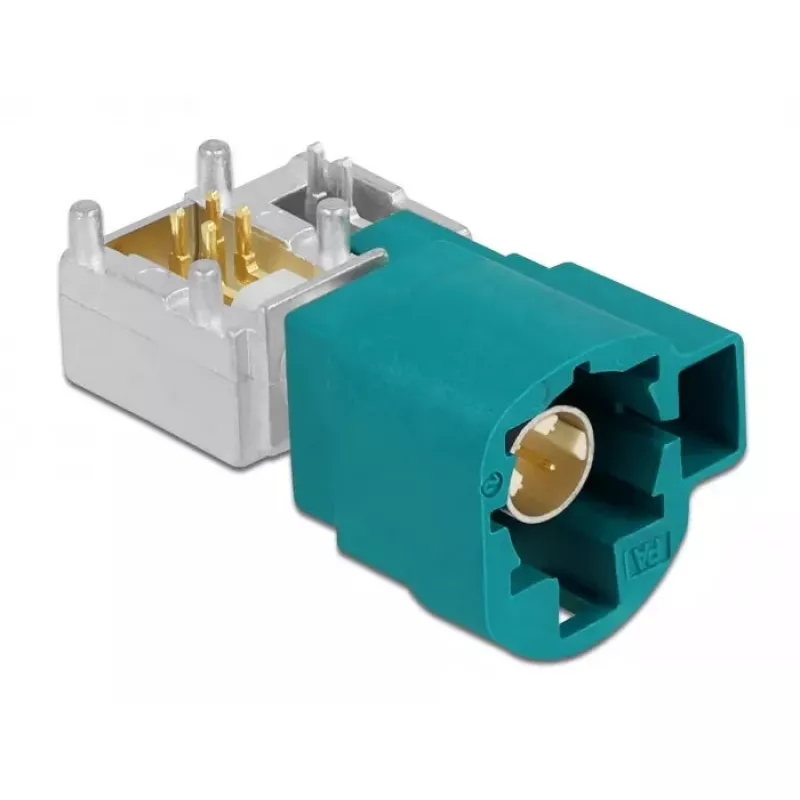

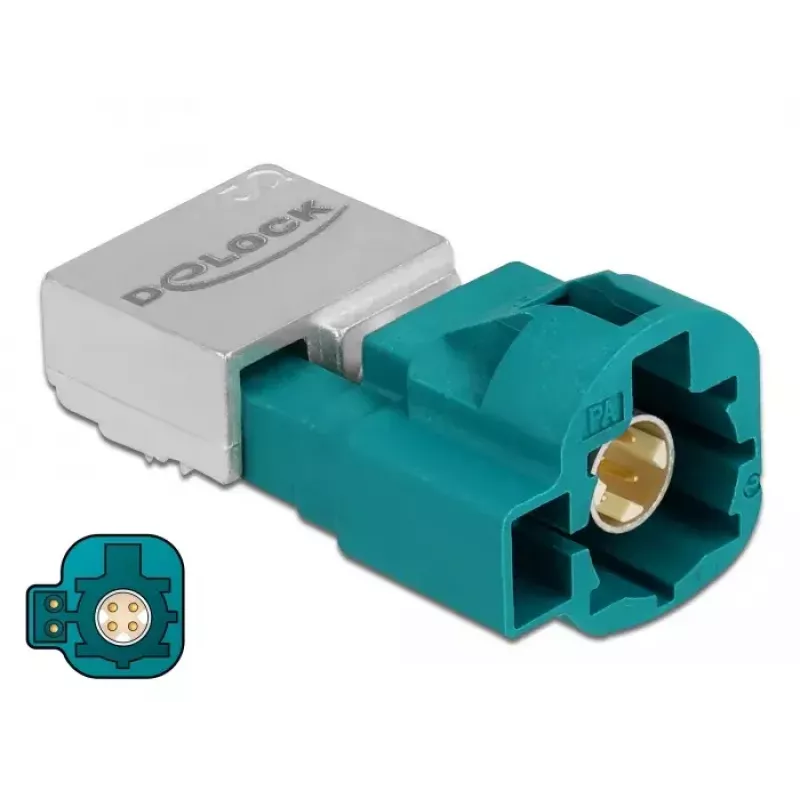

The DeLOCK 90358 coaxial connector is a male HSD Z connector with a 90° angle designed for compact installations. With dimensions of 15 mm width, 28 mm depth and 14 mm height and a blue housing, this single-piece connector is intended for connecting electronic components in vehicles and other applications that require a reliable coaxial connection. The connector supports Power over HSD (PoH) via two additional power pins, allowing simultaneous transmission of data and power to terminal devices such as cameras or displays.

Advantages

The angled male HSD Z design saves space in tight assemblies and makes cable routing easier. Integrated +2 power pins enable Power over HSD (PoH) for remote powering of peripheral devices while preserving the data signal on separate conductors. The compact dimensions and single-piece construction simplify installation in confined areas.

Suitable for

Key specifications

How to use

Align the male HSD Z connector with the mating female HSD socket and insert at the correct 90° orientation to ensure secure mechanical and electrical contact. Ensure that the mating connector supports Power over HSD if the +2 power pins are to be used for powering devices. Secure any mounting or cable retention as required by the installation environment and verify continuity and power delivery before final assembly.

Recommendations

Use compatible HSD mating sockets that support PoH and follow vehicle or equipment manufacturer guidelines for shielding, grounding and cable routing to maintain signal integrity and safe power delivery.
