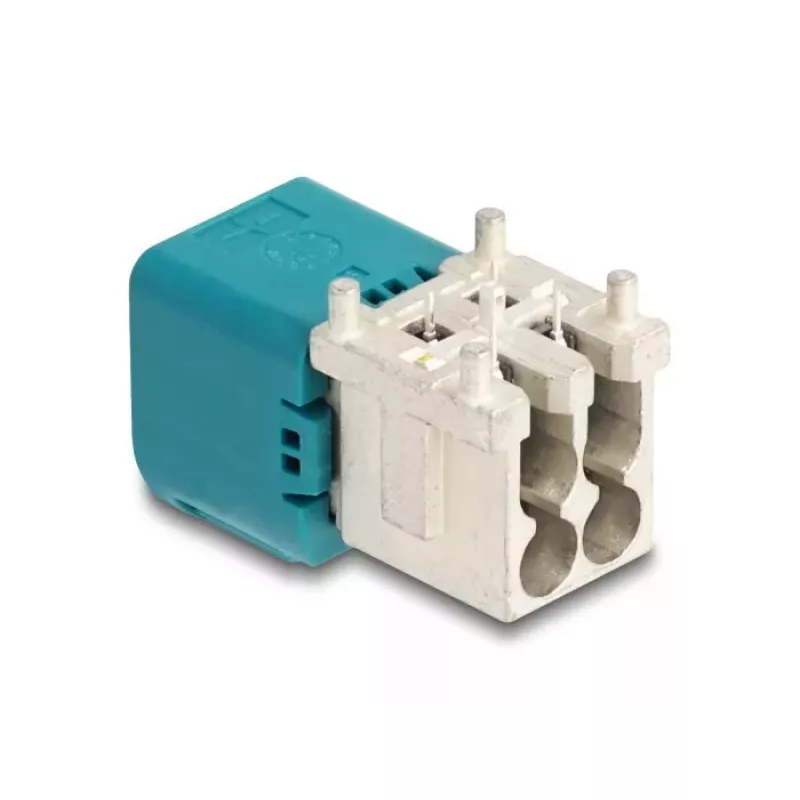

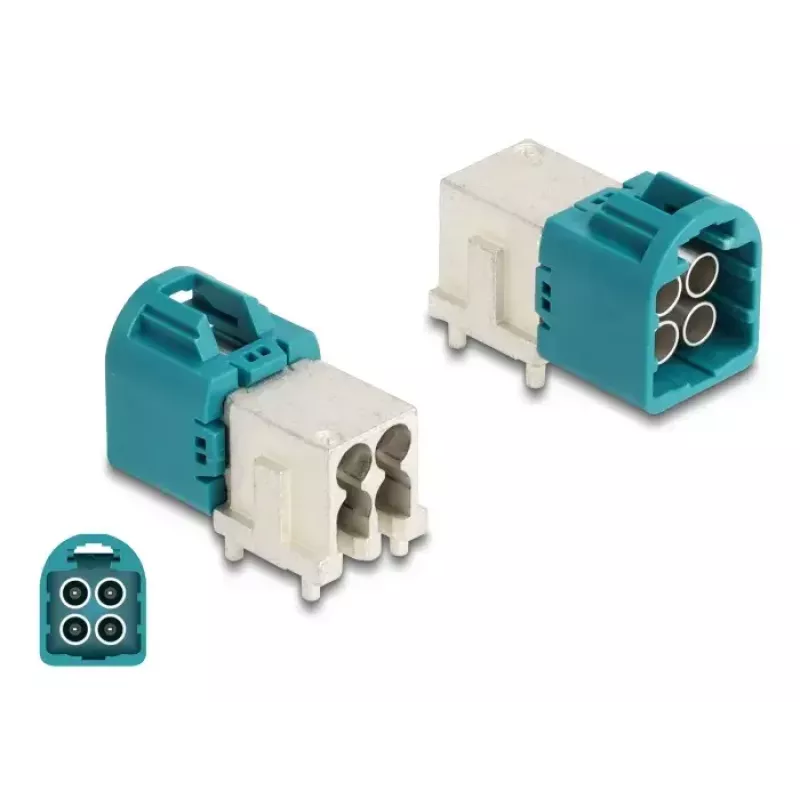

Koaksiaaliliitin Mini FAKRA Z DeLOCK 90113 50 Ω

The DeLOCK 90113 Mini FAKRA Z coaxial connector is a 50 Ω adapter designed for reliable signal connections in automotive and communication systems. Its compact housing—8 mm wide, 21 mm deep and 10 mm high—allows installation in confined spaces while maintaining required electrical performance for vehicle electronics and communication modules.

Advantages

Due to its reduced housing size, the Mini FAKRA Z connector can provide up to 80% space savings compared to a standard FAKRA connector. The compact design supports higher data rates while enabling multiple modules to be accommodated within a small installation area, making it suitable where space is limited.

Suitable for

Key specifications

How to use

Mount the Mini FAKRA Z connector according to the vehicle or device manufacturer’s installation instructions, ensuring correct mating with the complementary FAKRA interface. Verify secure mechanical engagement and proper alignment before powering the system. Use appropriate cable assemblies and follow standard practices for RF connections to maintain 50 Ω impedance and signal integrity.

Recommendations

Use the connector in applications where compact size and maintained 50 Ω performance are required. Avoid excessive mechanical stress and ensure mating parts are clean and undamaged to preserve signal quality and connector longevity.
