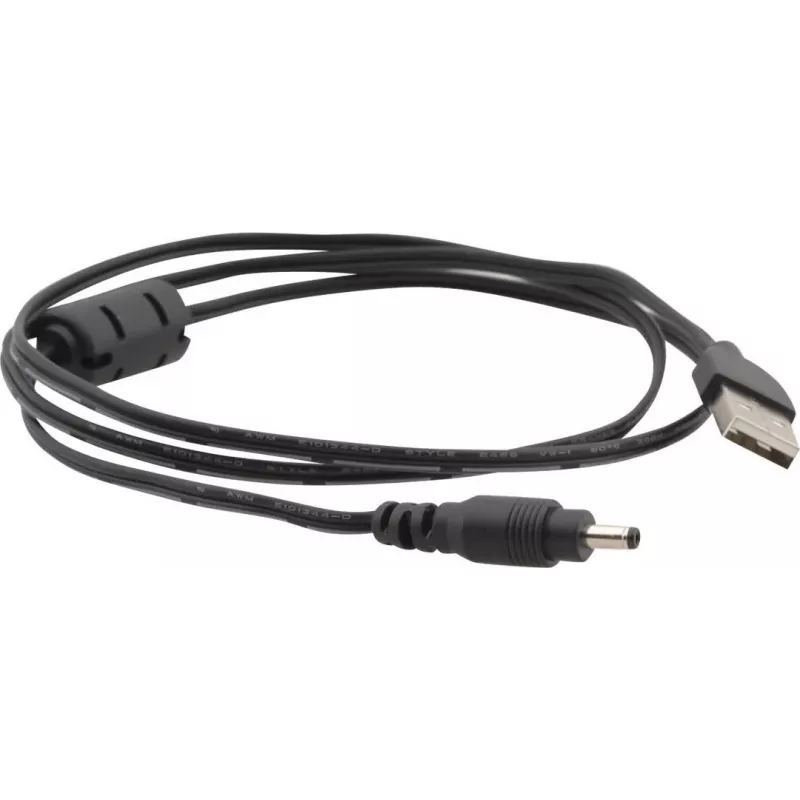

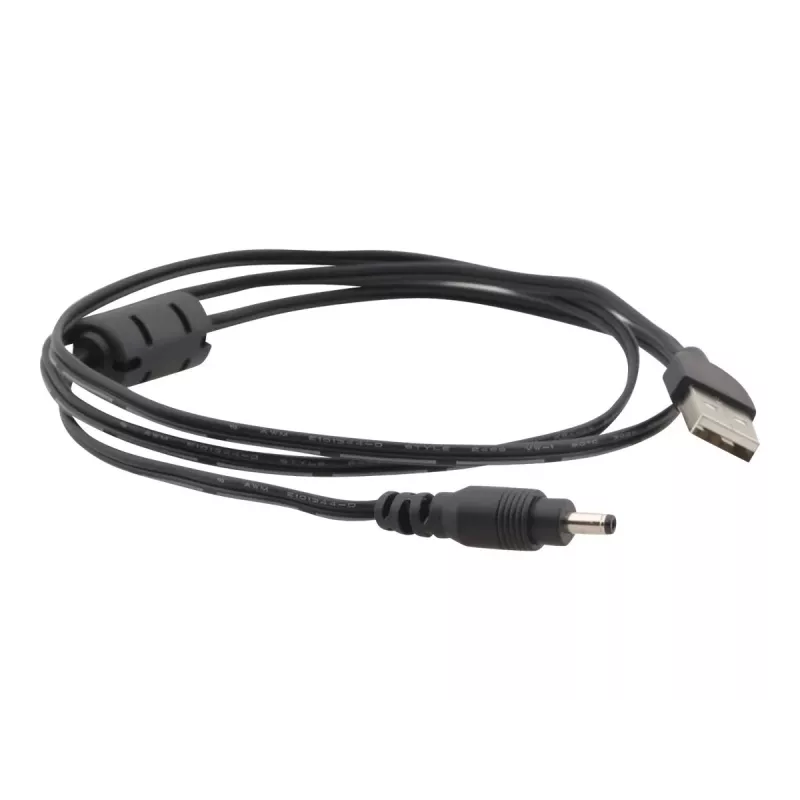

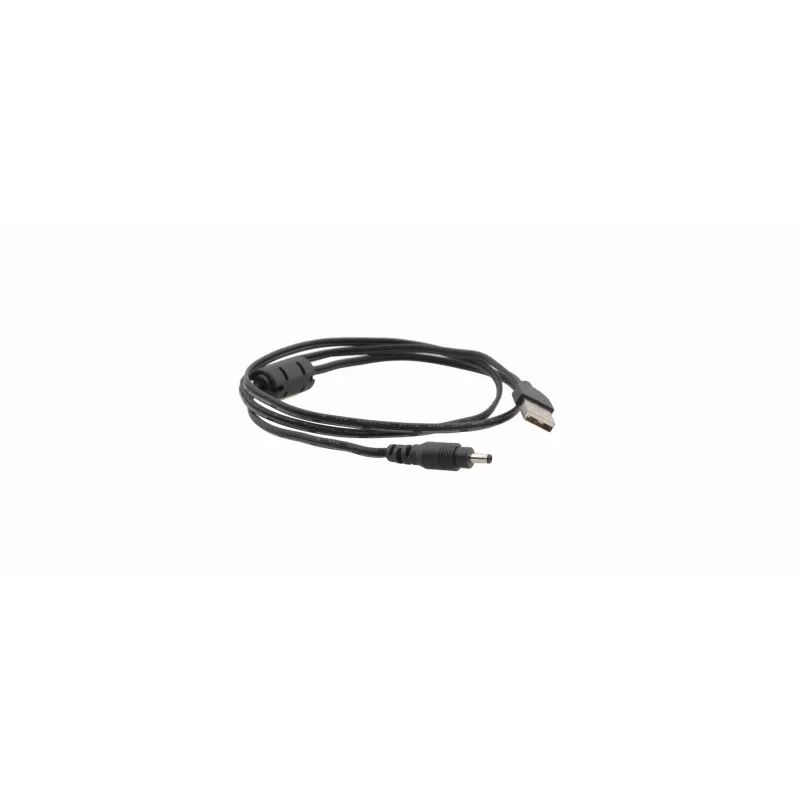

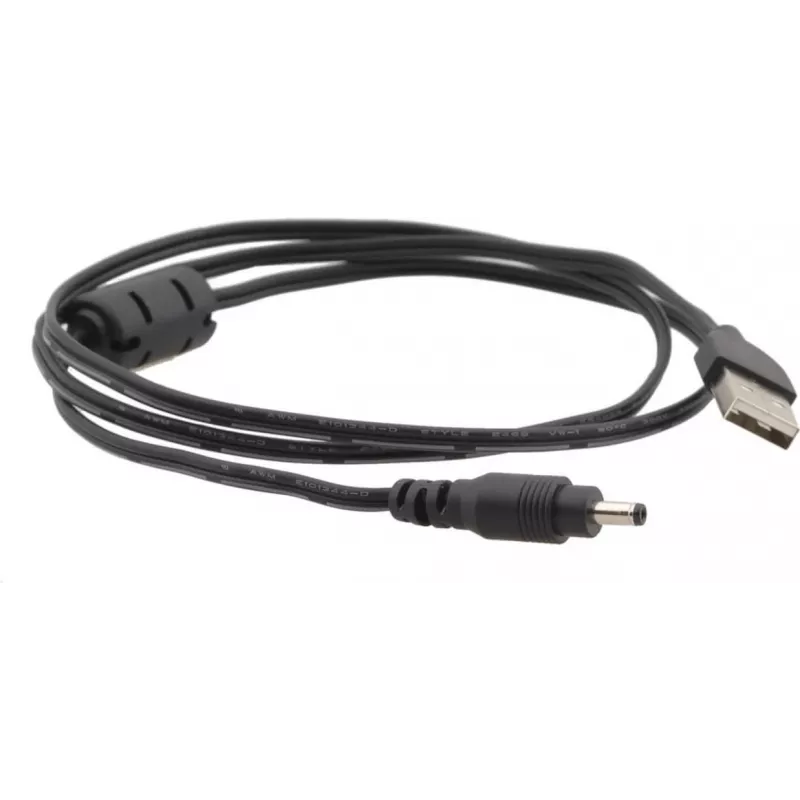

Kramer C-UAM/DC35-3 USB-A - DC-virtakaapeli 3,5x1,35mm 0,9m musta 96-0213003

Power small DC devices directly from a USB port with this Kramer C-UAM/DC35-3 cable. It eliminates the need for a separate power adapter when a USB power source is available.

Who is it for

This cable is for integrators and users who need to power small electronic devices with a 3.5x1.35mm DC jack from a standard USB-A port, such as a laptop, power bank, or USB charger.

Main features

• Connects USB-A male to DC power jack male (3.5mm outer diameter, 1.35mm inner diameter)
• Power only, no data transfer
• 0.9 meter cable length
• Supports 5V DC input from USB source
• Black PVC jacket with nickel-plated connectors

Specifications

• Cable type: USB to DC power cable
• Connector 1: USB Type A male
• Connector 2: DC power jack male (3.5x1.35mm)
• Cable length: 0.9 m
• Input voltage: 5V DC
• Colour: Black
• Jacket material: PVC
• Conductor material: Copper
• Connector plating: Nickel
• Shielding: Unshielded

Tips

Ensure your device's DC input matches the 3.5x1.35mm jack dimensions and requires 5V DC. This cable is for power only and will not transfer data.
