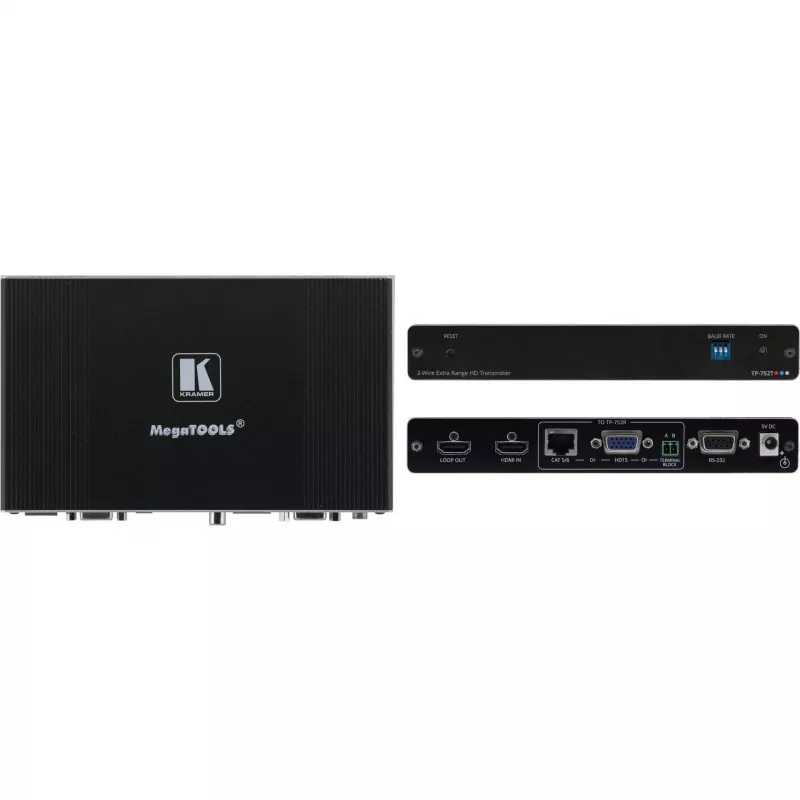

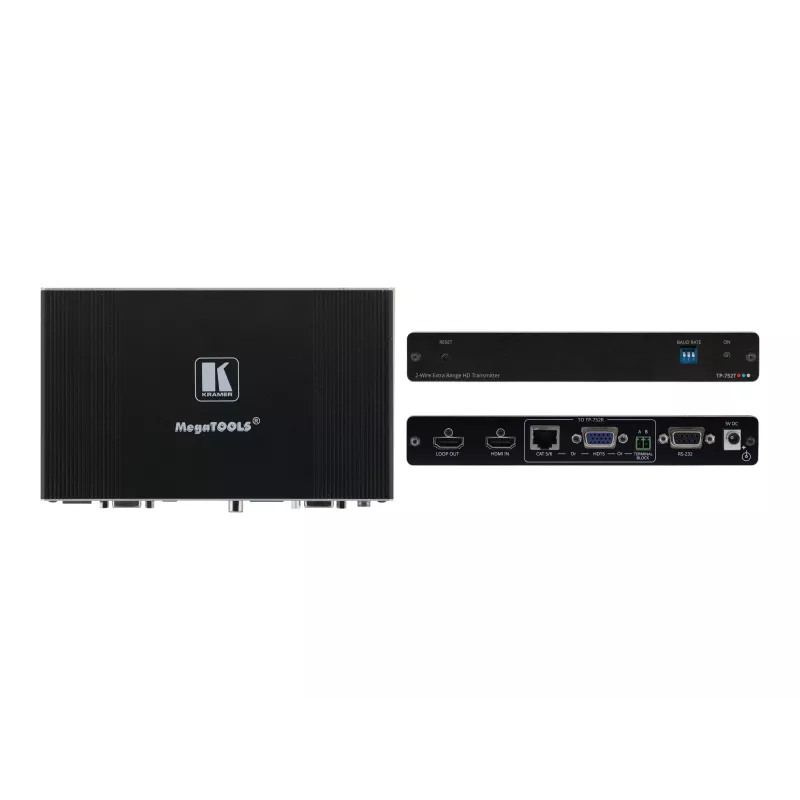

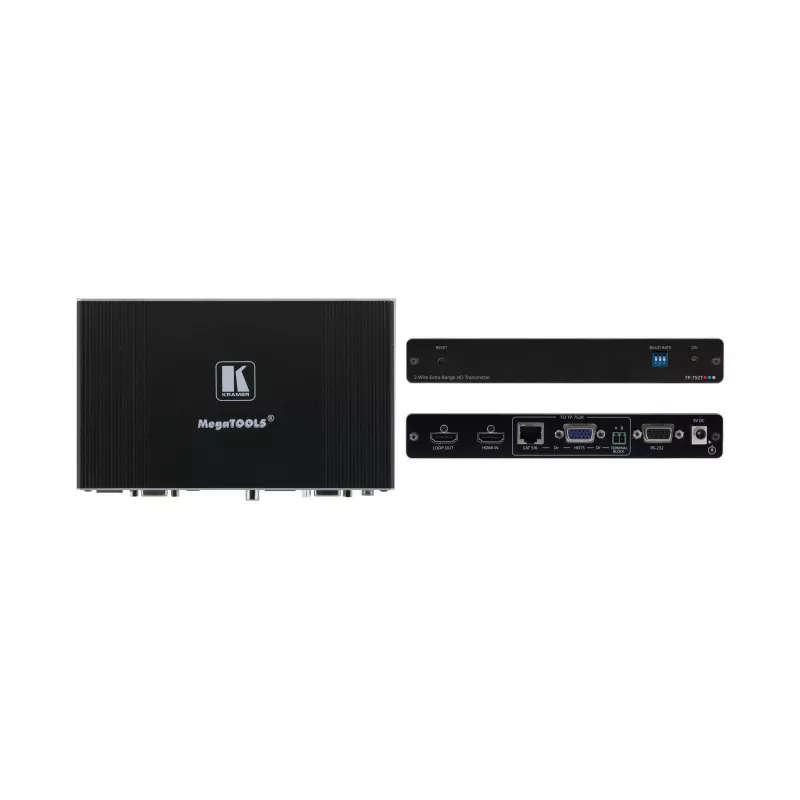

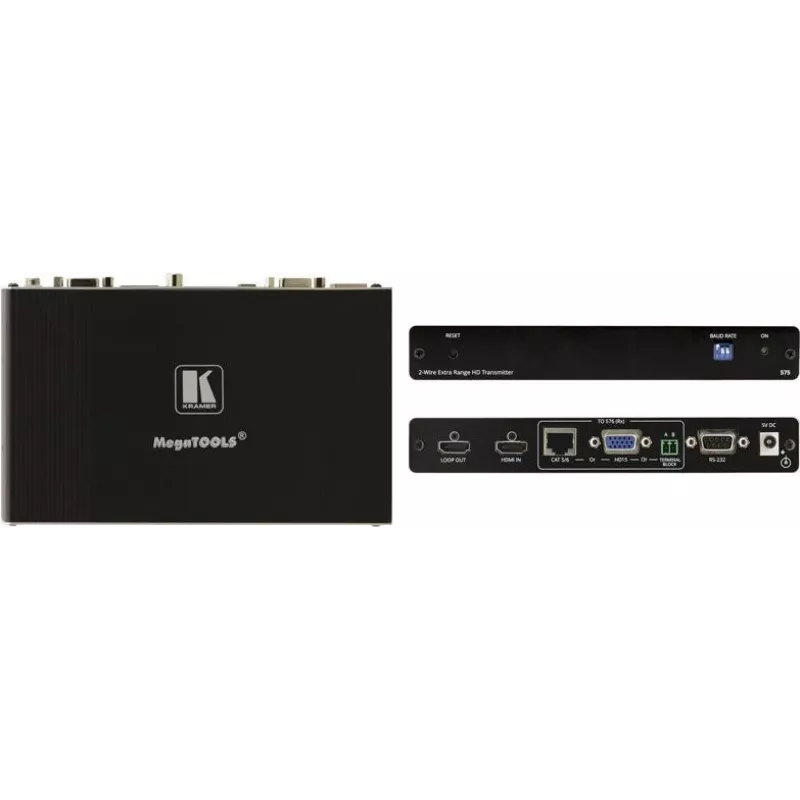

Kramer TP-752T A/V- ja ohjaussignaalin lähetin kierrettyä paria pitkin - 600m

Extend composite video, unbalanced stereo audio, and RS-232 control signals up to 600 meters over a single twisted pair cable with the Kramer TP-752T.

Overview

The Kramer TP-752T is a high-performance transmitter designed for long-distance distribution of composite video, unbalanced stereo audio, and RS-232 control signals over a single twisted pair cable (CAT5/6/7). It is ideal for classrooms, conference rooms, and digital signage applications where source equipment is located far from the display.

What stands out

• Transmits composite video, unbalanced stereo audio, and RS-232 control signals up to 600 meters (2000 feet) over a single twisted pair cable.
• High video bandwidth of 400MHz (-3dB) ensures sharp, clear image quality.
• Compact Kramer TOOLS desktop enclosure for easy installation.
• Supports CAT5, CAT6, and CAT7 cables for flexible cabling options.

Technical details

• Video input: 1x BNC (composite video)
• Audio input: 2x RCA (unbalanced stereo audio)
• Control input: 1x D-sub 9-pin female (RS-232)
• Output: 1x RJ-45 (twisted pair)
• Video bandwidth: 400MHz (-3dB)
• Audio bandwidth: 100kHz (-3dB)
• Video S/N ratio: 74dB
• Audio S/N ratio: 80dB
• Power supply: 12V DC, 200mA
• Enclosure type: Kramer TOOLS desktop

Our verdict

The Kramer TP-752T is a reliable and cost-effective solution for extending A/V and control signals over long distances using standard twisted pair cabling.
