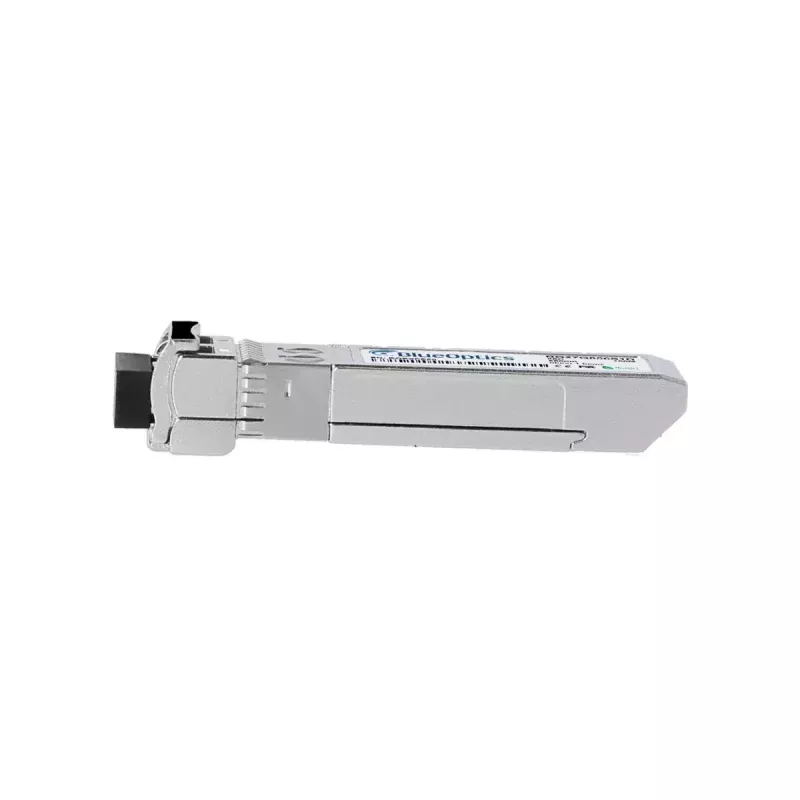

Kuitu-lähetin-vastaanotinmoduuli BlueOptics 02313URP-BO SFP28 LC alumiini 20 g

The BlueOptics 02313URP-BO SFP28 LC is a fiber optic transceiver module designed for high-speed short-range data transmission. Built to the SFP28 form factor, the module uses an LC duplex connector and is housed in an aluminium enclosure weighing approximately 20 g. It supports multimode fiber operation and is compatible with 25GBASE-SR class links for up to around 100 meters in typical multimode deployments. The module provides optical transmit and receive functions at 850 nm and includes digital diagnostics monitoring where supported by the host hardware.

Advantages

This SFP28 transceiver conforms to MSA-compatible mechanical and electrical standards and is manufactured to provide reliable interoperability with systems that support 25G SFP28 SR modules. The aluminium housing offers mechanical robustness and thermal dissipation while keeping weight low. Integrated digital diagnostics (DDM/DOM) enables remote monitoring of key parameters such as supply voltage, laser bias current, optical power and temperature when the host supports these functions. The compact SFP28 form factor allows high port-density deployment in switches, routers and storage systems.

Suitable for

• Short-range 25G Ethernet links on multimode fiber (typical distances up to 100 m)
• High-density switch and router uplinks supporting SFP28 ports
• Storage and server interconnects requiring low-latency optical links
• Environments where DDM/DOM monitoring is desired for troubleshooting

Key specifications

• Interface type: SFP28
• Connector: LC duplex
• Wavelength: 850 nm (transmit and receive)
• Supported data rate: up to 25 Gbps (25GBASE-SR)
• Media: multimode fiber
• Typical reach on multimode fiber: up to ~100 m (depends on fiber type and link design)
• Housing material: aluminium
• Weight: approx. 0.02 kg
• Digital diagnostics monitoring (DDM/DOM): supported where host hardware allows

How to use

Ensure the host device supports 25G SFP28 SR transceivers and DDM/DOM if monitoring is required. Insert the BlueOptics SFP28 module into an appropriate SFP28 port until it latches. Connect LC duplex multimode fiber patch cords with the correct polarity to the module and the remote transceiver or patch panel. Verify link status on the host device and monitor diagnostic parameters via the host management interface if available. For safe handling, avoid touching the optical interfaces and keep protective caps on the connectors when not in use.

Recommendations

Use OM3 or OM4 multimode fiber for predictable 25G performance and follow the host vendor’s compatibility list to ensure full interoperability. Keep fiber connectors clean and use dust caps during storage; routinely check DDM values to detect early signs of degraded optical performance.
