Kuitukaapeli EFB Elektronik MTPF72MTPFOM4-15-A 15 m OM4 MTP–MTP violetti

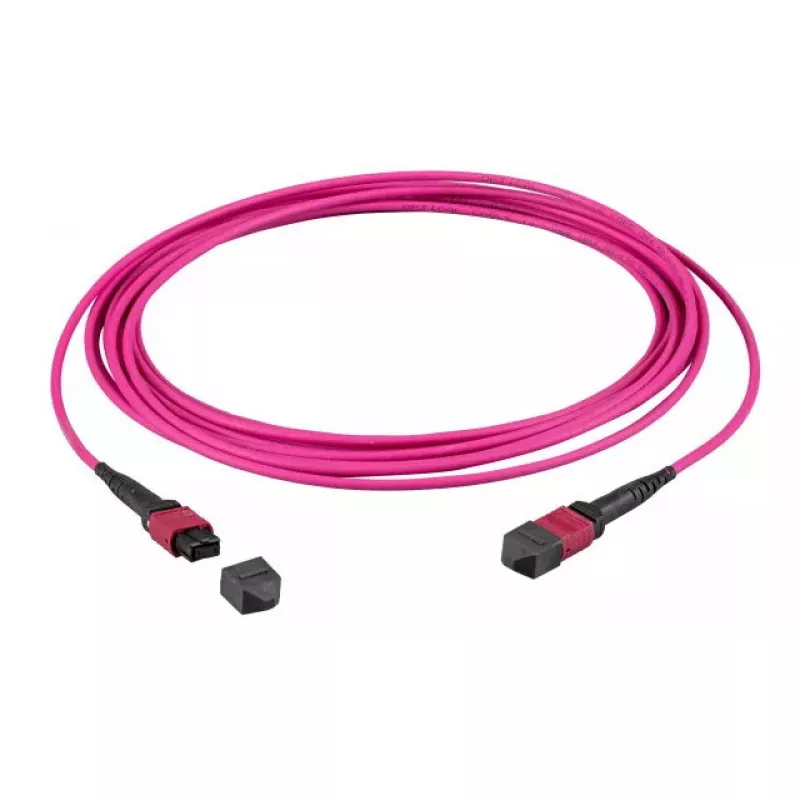

EFB Elektronik MTPF72MTPFOM4-15-A is a 15 m fibre optic cable equipped with OM4 multimode fibre and MTP connectors on both ends. The cable uses a 50 µm core diameter multimode construction optimized for high-density interconnects and high-speed data transmission. It is intended for use in data centres, high performance computing clusters and telecom equipment where low insertion loss and consistent channel performance are required.

Advantages

The OM4 multimode fibre offers increased bandwidth and extended modal bandwidth compared with standard multimode types, supporting higher data rates over mid-range distances. Dual-ended MTP connectors provide reliable, repeatable mating and are suitable for high-density patching systems. The 15 m length allows flexible routing between racks or equipment while maintaining low attenuation. The cable sheath and connector construction are designed to ensure stable optical performance and simple handling during installation.

Suitable for

• Data centre backbone and rack-to-rack links
• High Performance Computing (HPC) clusters and InfiniBand interconnects
• Telecom and enterprise network equipment connections
• High-density patch panels and optical distribution frames

Key specifications

• Fibre type: OM4 multimode, 50 µm core diameter
• Connector type: MTP to MTP, both ends
• Cable length: 15 m
• Colour: violet (industry-standard OM4 identification)
• Optimized for high-speed data links and short- to mid-range multimode transmission

How to use

Before installation, inspect connector endfaces for contamination and clean if necessary using appropriate fibre cleaning tools. Route the 15 m cable through cable management systems or trays, avoiding tight bends and excessive tensile loading; adhere to the minimum bend radius specified by the cable manufacturer. Insert MTP connectors into compatible adapter ports or equipment transceivers until secure. Test the link with suitable optical test equipment to verify insertion loss and continuity after installation.

Recommendations

Store and handle the cable in a clean environment; protect connector endfaces with dust caps when not in use. For best performance in high-density environments, use compatible MTP adapters and maintain consistent polarity for multi-fibre links. Periodically inspect and clean connectors and perform optical loss measurements after major reconfiguration.
