Kuitukaapeli EFB Elektronik O0360FT.50 50 m

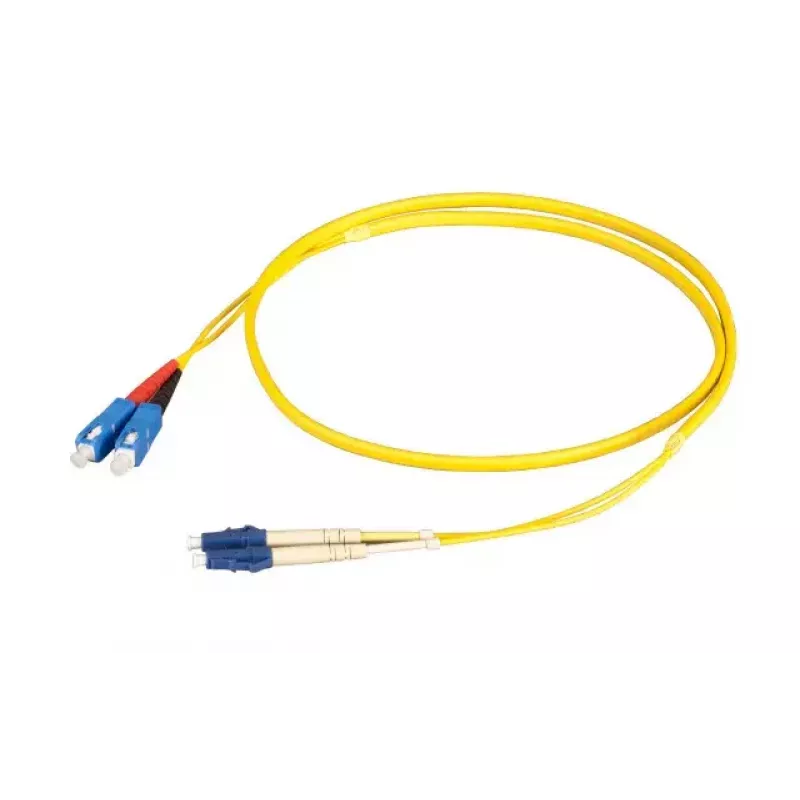

The EFB Elektronik O0360FT.50 is a 50 m OS2 fibre optic cable designed for full duplex connections. It features two LC and two SC connectors, a 9 µm core diameter and an additional outer jacket made of LSZH material for improved stability and reduced smoke emission in case of fire.

Advantages

The flat twin duplex jumper provides higher mechanical stability due to its added outer jacket and is easier to install than a standard jumper. The LSZH jacket minimizes toxic smoke and corrosive gases in the event of combustion, and the OS2 single-mode fibre supports long-distance, high-speed data transmission.

Suitable for

• Data centres and server rooms
• Telecommunications links and backbone connections
• Office and campus network installations
• Environments requiring low-smoke, halogen-free cabling

Key specifications

• Length: 50 m
• Fiber type: OS2 (single-mode)
• Core diameter: 9 µm
• Configuration: Flat twin duplex
• Connectors: 2x LC and 2x SC
• Jacket material: LSZH
• Brand: EFB Elektronik
• Manufacturer part number (MPN): O0360FT.50
• EAN: 4049759224417

How to use

Route the cable along the planned pathway, avoiding sharp bends and mechanical strain. Terminate or plug the LC and SC connectors into compatible ports on active equipment or patch panels. Secure the cable with appropriate clamps or ties, keeping bend radius within manufacturer recommendations to preserve signal integrity.

Recommendations

For best performance, install the cable in clean, dry environments and avoid tight bends; use the LSZH variant where low smoke and halogen-free materials are required by building or safety standards.
