Kuitukaapeli EFB Elektronik O7413FT.30 30 m SC I-V(ZN) HH

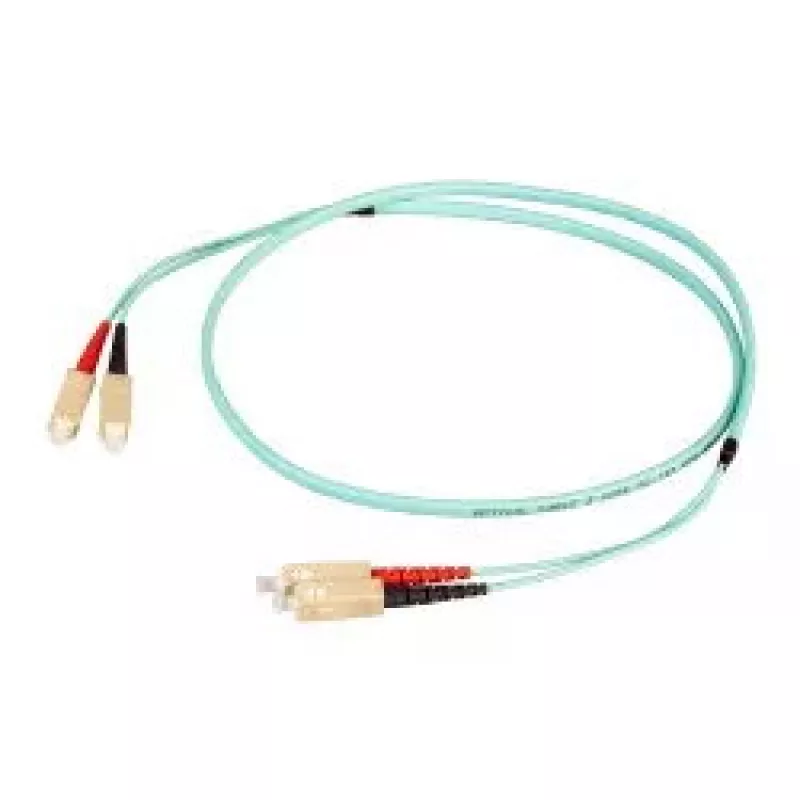

The EFB Elektronik O7413FT.30 is a 30-meter OM3 fibre optic cable with SC connectors on both ends. It is constructed as a flat twin duplex jumper with an additional outer jacket made from LSZH (low smoke zero halogen), providing greater mechanical stability than a standard jumper while maintaining suitable performance for high-speed data transmission in networking environments.

Advantages

The flat twin duplex design eases installation in confined spaces and reduces cable bulk. The added outer jacket increases durability and stability during handling and routing. LSZH jacket material minimizes smoke and harmful halogen emissions in case of fire, making the cable appropriate for installations where low-smoke properties are required. OM3 multimode specification and SC connector interfaces support reliable high-speed connections.

Suitable for

• Short-range high-speed data links in LANs and data centers
• Patch panels and rack-to-rack connections
• Environments requiring low-smoke, low-halogen materials

Key specifications

• Length: 30 m
• Fiber type: OM3 (multimode)
• Connector type: SC to SC duplex (flat twin)
• Jacket: LSZH (I-V(ZN))
• Brand: EFB Elektronik
• MPN: O7413FT.30
• EAN: 4049759224479

How to use

Route the flat twin duplex jumper between the SC connector ports, ensuring connectors are clean before mating. Align and insert the SC connectors until they click into place. Avoid sharp bends and excessive pulling on the cable; maintain the manufacturer’s minimum bend radius for OM3 multimode fibre. When removing, depress the SC latch and pull straight out to prevent connector or fibre damage.

Recommendations

For best performance, keep connector endfaces free of dust and contaminants by using appropriate cleaning tools, and avoid tight bends or prolonged exposure to mechanical stress. Choose LSZH-jacketed cables like this model when installing in public or confined indoor spaces where reduced smoke and halogen emissions are required.
