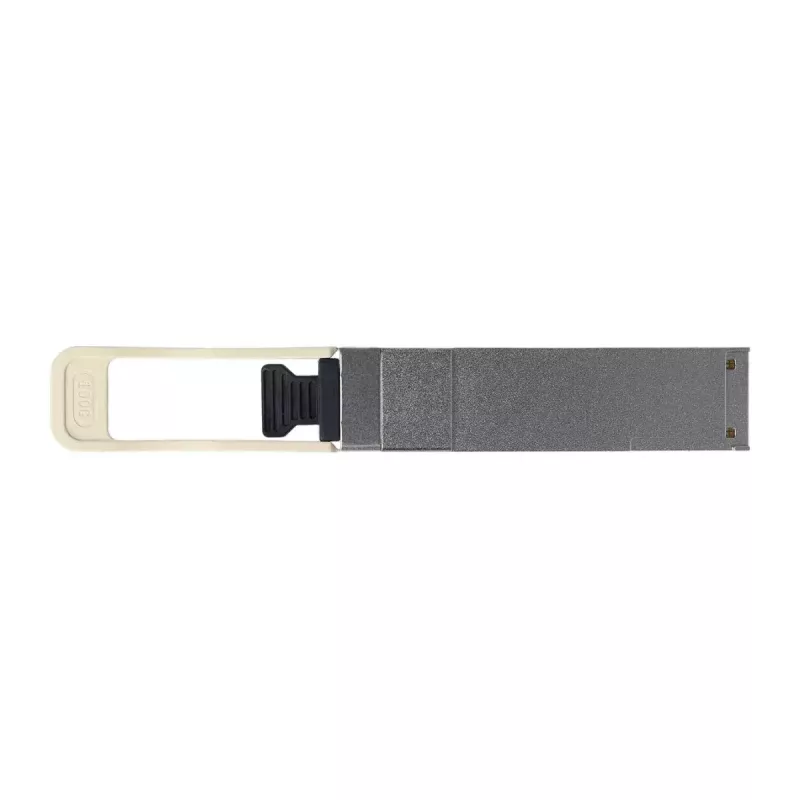

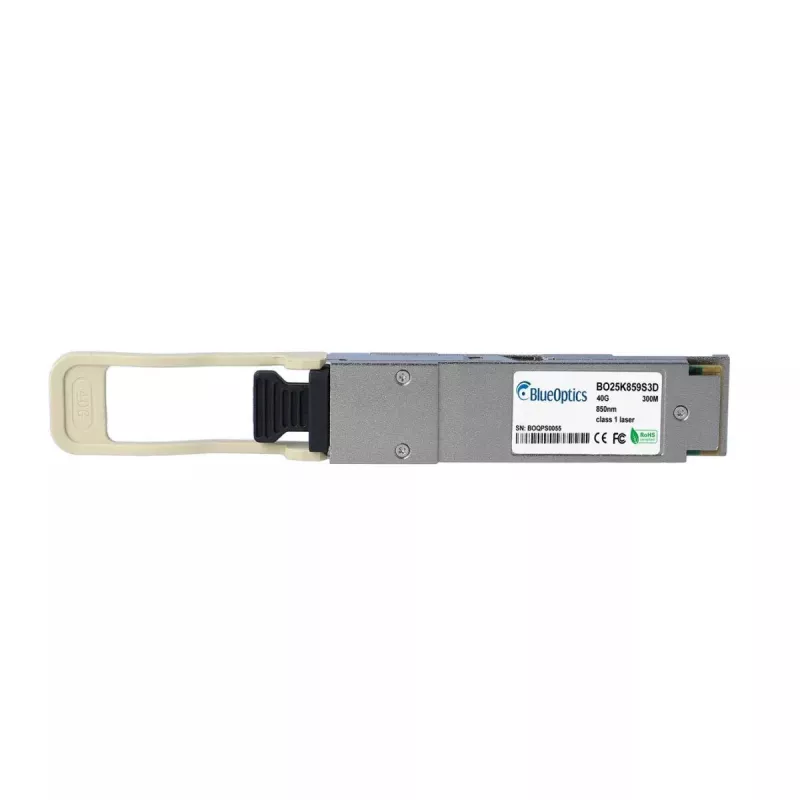

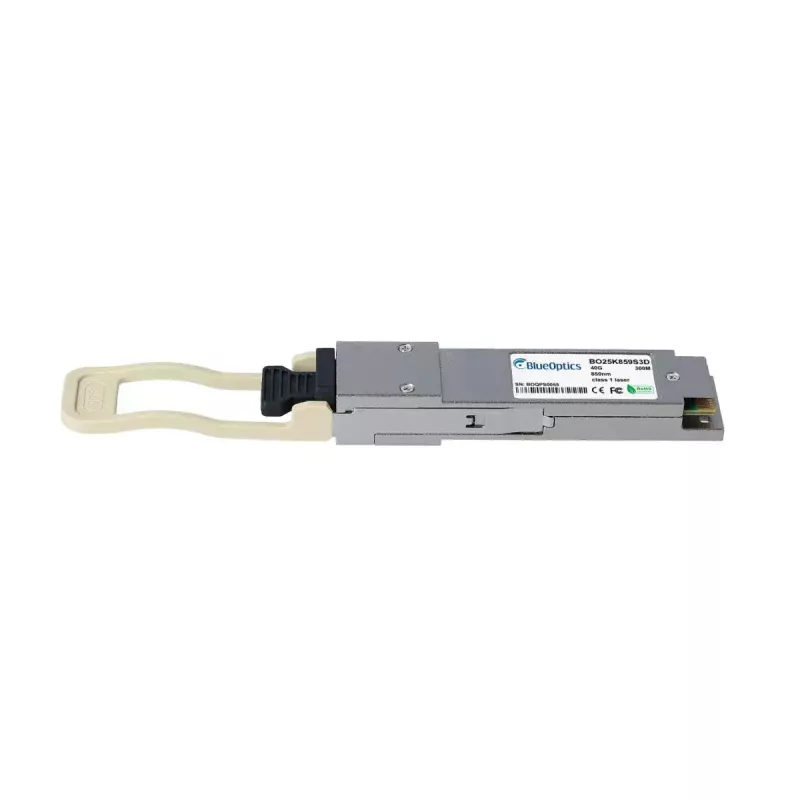

Kuitulähetin-vastaanotinmoduuli BlueOptics 407-BBYO-BO 100000 Mbit/s QSFP

The BlueOptics 407-BBYO-BO is a QSFP fiber optic transceiver module engineered for 100 Gigabit Ethernet links with a maximum data transfer rate of 100000 Mbit/s. Housed in a silver enclosure and weighing 40 g, the module uses MTP/MPO fiber optic connectors and supports multimode connections up to 100 m. With a mean time between failures (MTBF) of 1,000,000 hours, this transceiver is intended for use in high-density switch and server uplinks where reliable, short-reach optical interconnects are required.

Advantages

The transceiver provides a standardized QSFP form factor for compact, hot-pluggable installation in compatible ports. Its support for 100 Gigabit Ethernet and MTP/MPO connectors enables aggregated high-speed links in data center and campus networks. The silver metal housing contributes to thermal conduction and mechanical protection while the modest weight simplifies handling during deployment. A high MTBF rating indicates suitability for continuous operation in demanding network environments.

Suitable for

• Short-reach 100 Gigabit Ethernet uplinks in data centers
• High-density switch and server interconnects
• Aggregation links in campus or enterprise networks
• Environments requiring MTP/MPO multimode fiber connections

Key specifications

• Maximum data transfer rate: 100000 Mbit/s (100 Gb/s)
• Maximum transfer distance: 100 m (multimode fiber)
• Ethernet interface type: 100 Gigabit Ethernet (QSFP)
• Fiber optic connector type: MTP/MPO
• Product colour: Silver
• Weight: 0.04 kg
• Reliability: MTBF 1,000,000 hours

How to use

Install the BlueOptics QSFP transceiver into a compatible QSFP port following the host device manufacturer's instructions for hot-pluggable modules. Use MTP/MPO multimode fiber patch cords rated for 100 Gb/s and ensure proper keying and polarity when connecting. Verify link status and speed through the switch or server management interface and, if necessary, adjust link aggregation or port configuration settings to match network design. Avoid touching the connector endfaces and protect unused ports with dust caps to maintain optical performance.

Recommendations

For reliable operation, use this module with compatible 100 Gigabit Ethernet hardware and multimode MTP/MPO cabling designed for short-reach applications. Maintain clean connector endfaces, follow ambient temperature guidelines from the host device, and perform optical loss testing during installation to confirm link budget compliance.
