Kytkentäpaneeli 1U DeLOCK 43299

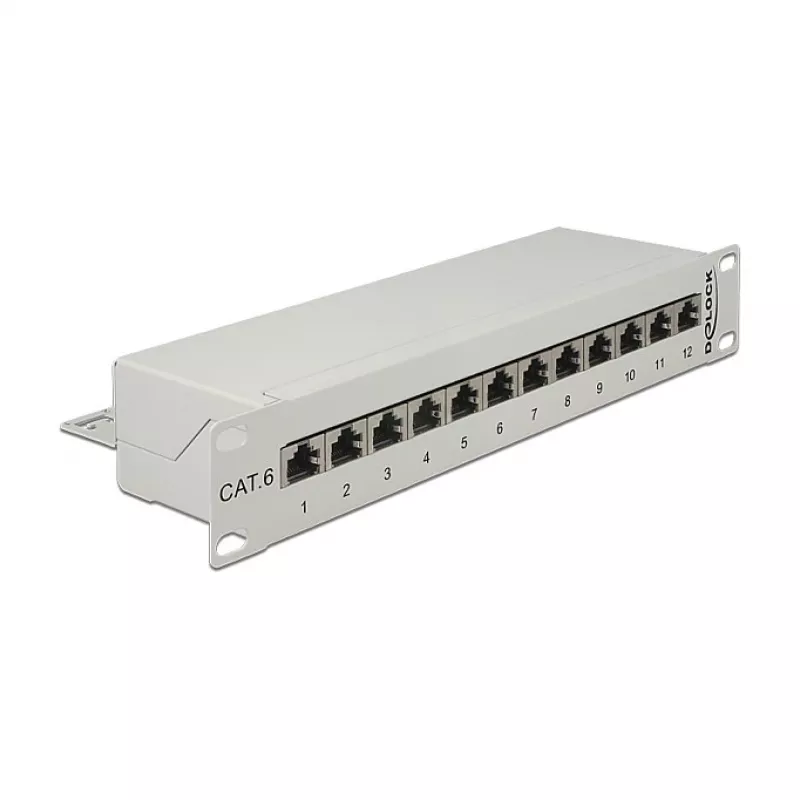

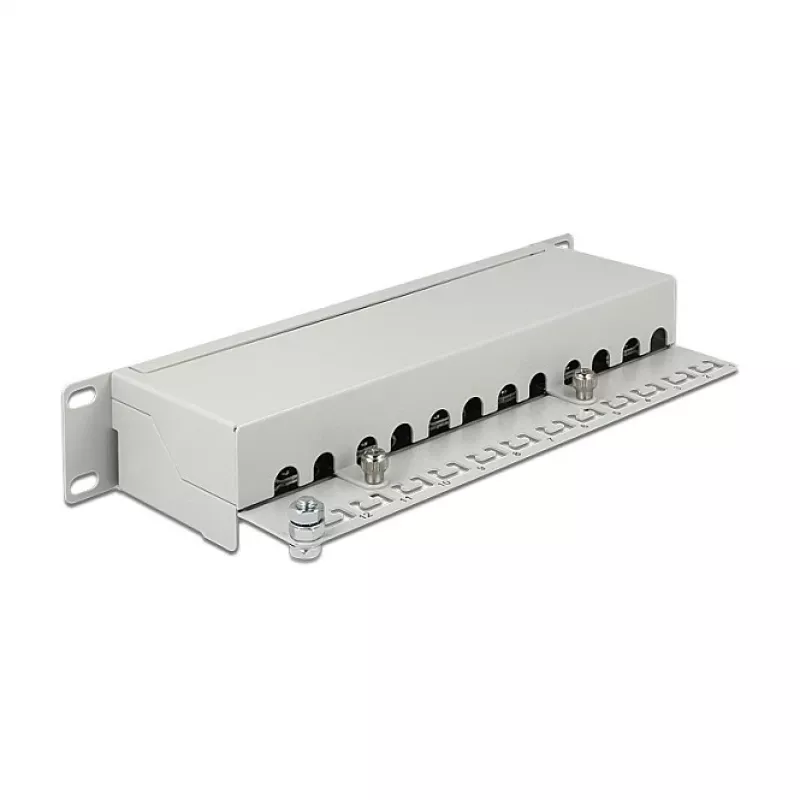

The DeLOCK 43299 is a 1U patch panel designed for installation in a 10" rack. It is intended for use with RJ-45 connections and provides a compact, grey-coloured front with a width of 254 mm, height of 44 mm and depth of 109 mm to organise network cabling in server racks and network cabinets.

Advantages

The patch panel supports up to 12 network cable terminations using LSA-style punch-down blocks, enabling organised cable routing and simplified port identification. Its 1U rack format and compact dimensions save space in standard 10" racks while maintaining accessibility for maintenance and changes.

Suitable for

• Small network racks and server cabinets
• Patching and termination of up to 12 RJ-45 network cables
• Environments where compact, space-saving cable management is required

Key specifications

• Model: DeLOCK 43299
• Rack size: 10"
• Form factor: 1U
• Ports quantity: 12
• Connector type: RJ-45 (terminated via LSA punch-down blocks)
• Dimensions (W×H×D): 254 × 44 × 109 mm
• Colour: Grey

How to use

Mount the patch panel into a compatible 10" rack at the desired 1U position using appropriate rack screws. Terminate each network cable by inserting conductors into the LSA punch-down blocks and use a punch-down tool to secure the connections. Label ports if needed to simplify later identification and routing.

Recommendations

For reliable connections, use a proper LSA punch-down tool and follow standard wiring schemes (e.g. T568A/T568B) when terminating RJ-45 cables. Ensure rack mounting hardware is rated for your rack type and check cable bend radius to avoid signal degradation.
