Kytkentäpaneeli 1U DeLOCK 66776

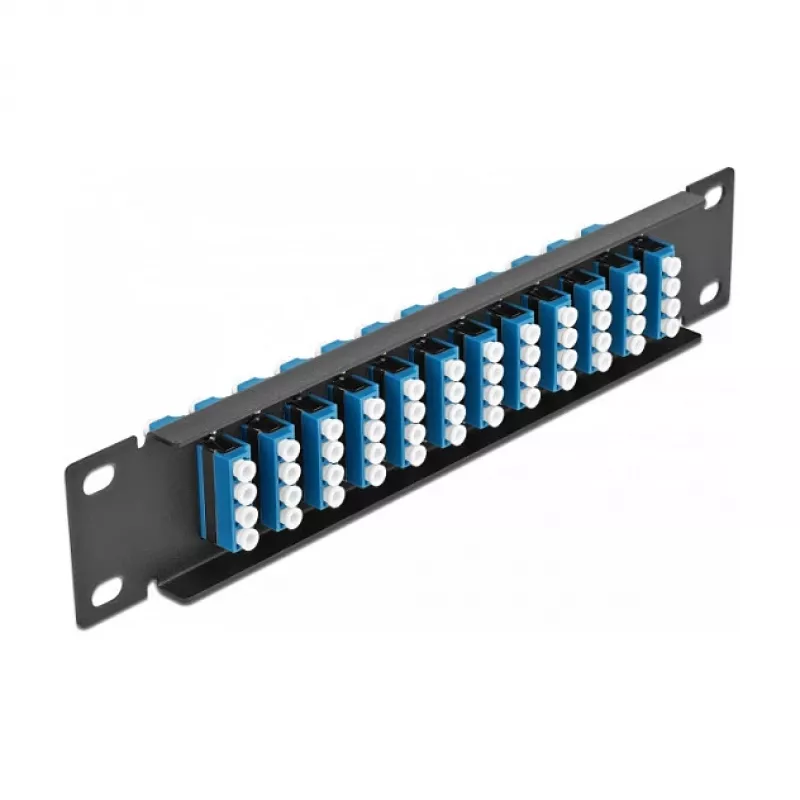

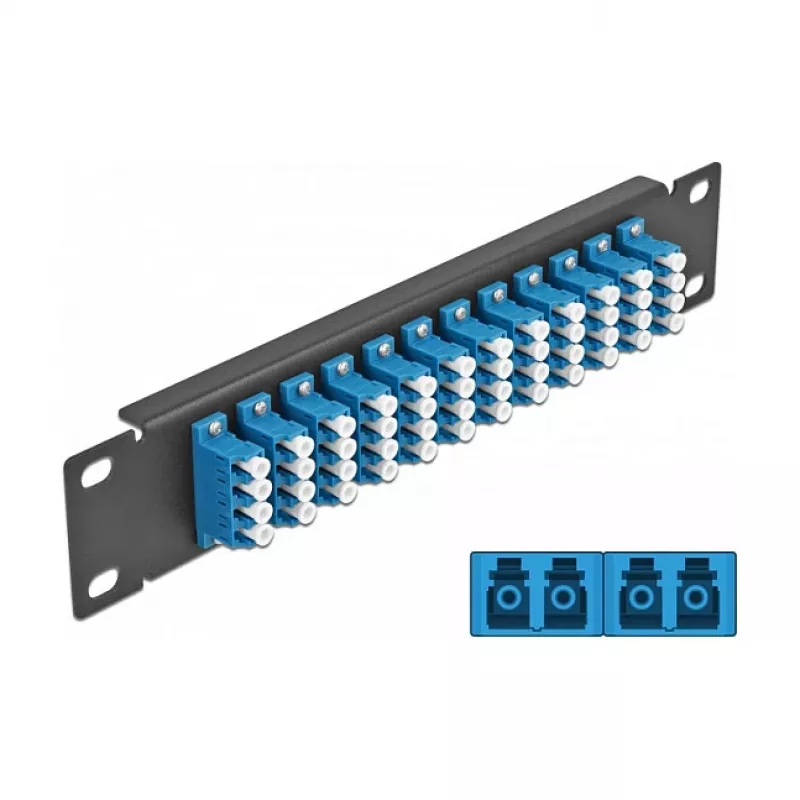

10" Fiber Optic Patch Panel 12 Port LC Quad blue 1U black by DeLOCK provides a compact, rack-mountable solution for terminating and connecting multiple fiber optic links. The unit is designed for installation in a 10" network cabinet and features twelve LC Quad fibre couplers for straightforward mating of LC male connectors.

Advantages

The patch panel offers a 1U, space-saving form factor and a metal construction in black with blue couplers to simplify identification. Twelve LC Quad couplers allow organized routing and connection of multiple duplex LC links through a single module. The design facilitates neat cable management and quick access for reconfiguration or maintenance.

Suitable for

• 10" or compatible small network cabinets requiring fiber termination
• Telecommunications racks where LC Quad connections are used
• Patch fields in data closets, comms cabinets, or lab environments

Key specifications

• Form factor: 1U rack panel for 10" cabinet installation
• Port count: 12 LC Quad fibre couplers
• Connector type: LC (quad arrangement)
• Colour: black panel with blue couplers
• Brand: DELOCK, MPN: 66776, EAN: 4043619667765

How to use

Mount the panel into a compatible 10" network cabinet using appropriate rack screws and mounting accessories. Terminate incoming and outgoing fibre cables with LC male connectors and insert them into the LC Quad couplers. Verify connections visually or with suitable test equipment and secure fibre routing to avoid sharp bends or strain on the connectors.

Recommendations

Install in a controlled environment, follow fibre handling best practices, keep dust caps on unused couplers, and use fibre cleaning tools before mating connectors to ensure optimal signal performance.
