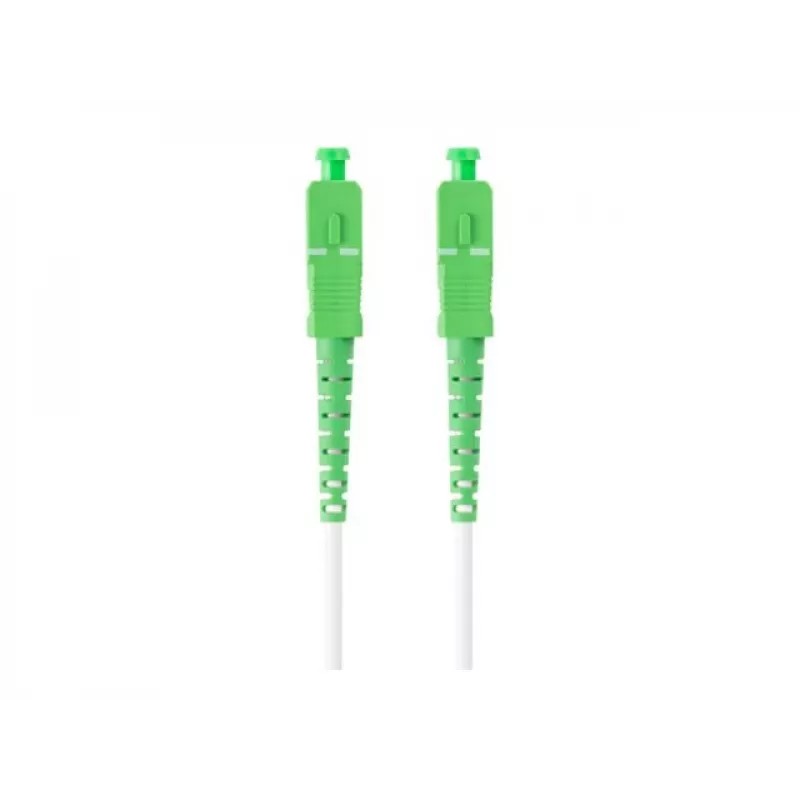

LANBERG kuitu-patchkaapeli SM SC/APC-SC/APC Simplex 2,5 m LSZH G.657.A2 3,0 mm valkoinen

Single-mode fiber optic patch cord with SC/APC connectors on both ends, delivering low insertion loss and high return loss for stable optical transmission. The 2.5-meter simplex cable features a bend-insensitive G.657.A2 fiber and a white LSZH jacket, making it ideal for FTTH, CATV, and data center applications where space is limited and safety is paramount.

Advantages

The angled physical contact (APC) polish minimizes back reflections, ensuring a return loss of ≥60 dB, which is critical for high-speed digital and analog video systems. The G.657.A2 fiber allows tight bending with a minimum bend radius of just 7.5 mm, enabling installation in cramped enclosures without signal degradation. The LSZH jacket emits low smoke and zero halogen when exposed to fire, enhancing safety in populated areas.

Suitable for

• FTTH (Fiber to the Home) networks
• CATV and RF overlay systems
• Telecommunication backbone connections
• Data center interconnects
• High-density fiber management systems

Key specifications

• Connector type: SC/APC to SC/APC
• Fiber mode: Single-mode (SM)
• Fiber count: Simplex (1 fiber)
• Cable length: 2.5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Fiber standard: ITU-T G.657.A2 (bend-insensitive)
• Cable diameter: 3.0 mm
• Cable color: White
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 60 dB
• Minimum bend radius: 7.5 mm
• Operating wavelengths: 1310 nm, 1550 nm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Durability: > 500 matings
• Compliance: RoHS, CE, IEC 61754-4, TIA/EIA-568-C.3

Recommendations

For optimal performance, clean connectors before each mating and use dust caps when not in use. Avoid exceeding the minimum bend radius during installation to maintain signal integrity. This patch cord is an excellent choice for technicians and network engineers seeking reliable, bend-tolerant connectivity in modern fiber optic networks.
