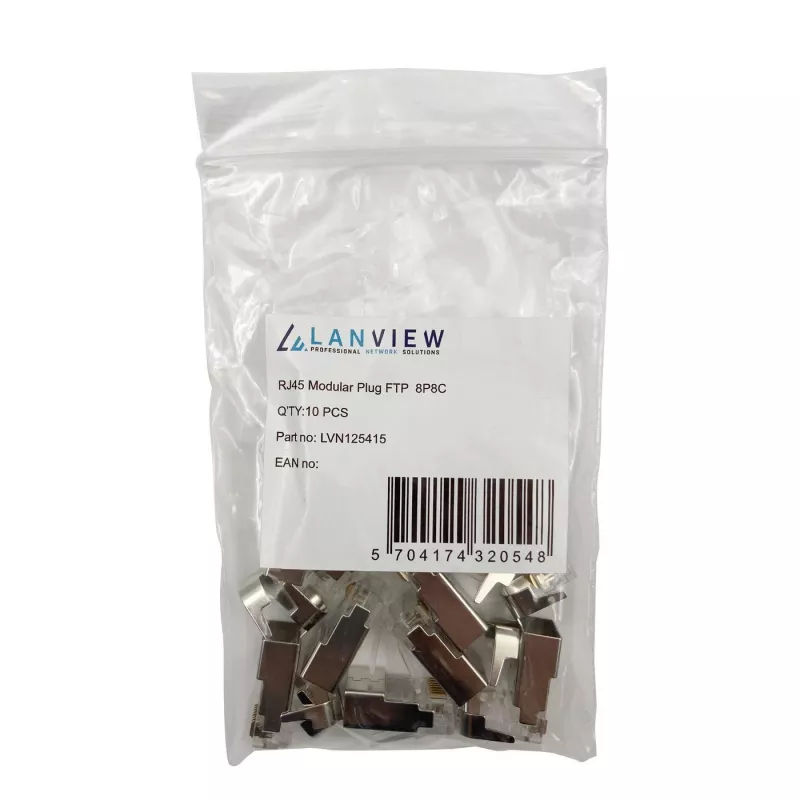

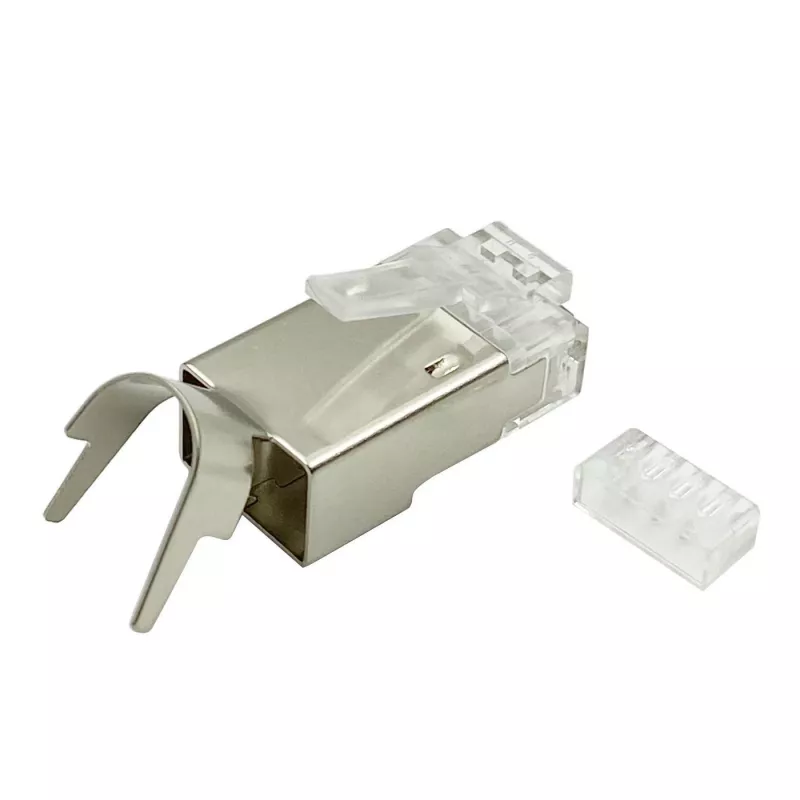

Lanview LVN125415 RJ45-kaapelipistoke, metallinen

The Lanview LVN125415 RJ45 wire connector is a metallic male plug designed for direct mounting on cables with larger AWG sizes, such as Cat6a. It is supplied in a pack of 10 pieces and weighs 27.8 g per unit with compact dimensions (12 mm width, 21 mm depth). The connector supports both unshielded and shielded installations and is commonly used for network terminations including IP camera cabling.

Advantages

The LVN125415 offers a durable metallic finish and a male RJ45 form factor that provides stable physical connection and reliable signal transfer. Its design accommodates larger conductor diameters, simplifying termination of Cat6a cables and other large-AWG assemblies. Compatibility with both shielded and unshielded cabling increases flexibility for varied installation environments.

Suitable for

• Termination of Cat6a and other large-AWG Ethernet cables
• IP camera network installations
• Shielded and unshielded LAN cabling
• Field or site wiring where direct cable mounting is required

Key specifications

• Brand: Lanview
• Model / MPN: LVN125415
• EAN: 5704174320548
• Gender: Male RJ45
• Finish: Metallic
• Pack quantity: 10 pieces
• Weight: 27.8 g (per unit)
• Dimensions: 12 mm (width) × 21 mm (depth)
• Cable compatibility: Large AWG (e.g., Cat6a); supports shielded and unshielded cables

How to use

Prepare the Ethernet cable by stripping the outer jacket to expose conductor pairs and, if present, the shield. Arrange conductors according to the required wiring standard, then insert the cable into the LVN125415 connector until fully seated. Complete the termination according to the connector type (crimping or pushing as specified by installer tools). Ensure the shield is properly connected when used in shielded installations and verify continuity after termination.

Recommendations

Use appropriate crimping or termination tools rated for RJ45 connectors and large-AWG cables. Verify cable pair order before finalizing the connection and test each link with a network tester to confirm correct wiring and signal integrity. For shielded installations, ensure the connector’s metallic body provides proper grounding to maintain shield effectiveness.
