Lanview LVN127596 patch-paneeli 1U

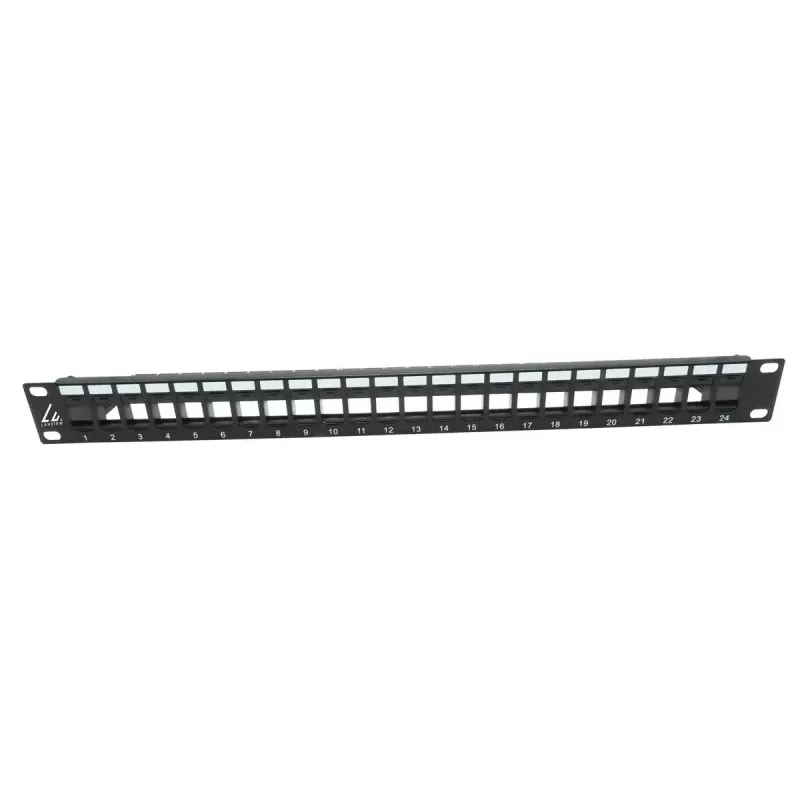

The Lanview LVN127596 is a 19" unshielded 1U patch panel compatible with EIA and TIA standards. Constructed from durable steel and finished in black, it provides 24 RJ-45 ports for Cat5e cable installations and is intended for rack mounting in structured network environments.

Advantages

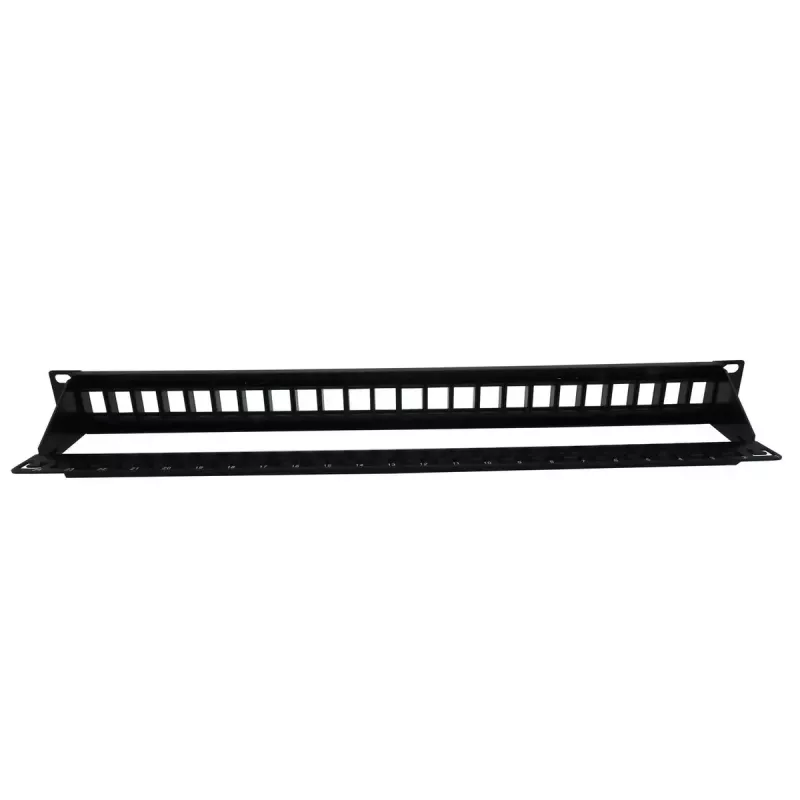

This patch panel offers a compact 1U form factor with 24 ports, printed labelling fields above each port for clear identification, and cable tie bridges behind each port to relieve cable strain. The unshielded design simplifies installation with Cat5e cabling while maintaining compliance with EIA/TIA guidelines.

Suitable for

• Small and medium office network racks
• Patch bays and structured cabling systems using Cat5e
• Data closets and server rooms requiring 1U rack space

Key specifications

• Brand: Lanview
• Model: LVN127596
• Form factor: 19" 1U
• Ports: 24 RJ-45 (Cat5e)
• Shielding: Unshielded
• Material: Steel
• Colour: Black
• Net weight: 0.507 kg
• EAN: 5704174318811

How to use

Mount the panel in a standard 19" rack occupying 1U of space. Terminate Cat5e cables to the RJ-45 jack positions according to the chosen wiring scheme (TIA/EIA 568A or 568B). Use the screen printed labelling fields to mark each port and secure cables with the integrated cable tie bridges to reduce strain and maintain orderly routing.

Recommendations

For reliable performance, use Cat5e-rated cables and follow EIA/TIA wiring standards; avoid exposing the panel to excessive moisture or mechanical stress, and ensure cable ties are not over-tightened to prevent conductor damage.
