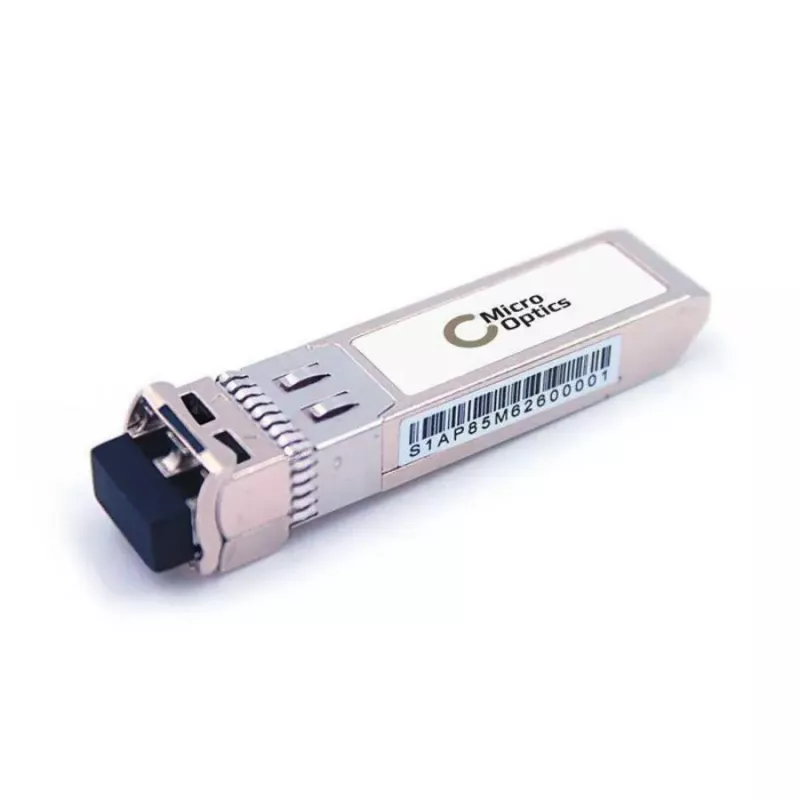

Lanview MO-NET-25GBASE-SR SFP28 lähetin-vastaanotin, 25G, 850nm, 100m, LC, MMF, DDM

Push 25 Gigabit Ethernet over multimode fibre up to 100 metres with the Lanview MO-NET-25GBASE-SR SFP28 transceiver. This hot-pluggable module delivers 25 Gbps throughput at 850 nm using a VCSEL laser, making it a high-density, low-latency choice for data centre top-of-rack switches and enterprise aggregation links. Fully MSA-compliant, it drops into any Netgear switch or router with an SFP28 cage and supports Digital Diagnostics Monitoring (DDM) for real-time health checks on temperature, voltage, laser bias, and optical power.

Overview

The MO-NET-25GBASE-SR is engineered for short-reach multimode fibre connections. It uses a duplex LC connector and operates over OM3 or OM4 cabling, reaching 70 m on OM3 and 100 m on OM4. With power consumption under 1 W, it helps keep thermal loads low in dense 25G deployments. The module meets MSA, RoHS, CE, and FCC requirements, and its commercial temperature range (0 °C to 70 °C) suits standard data centre environments.

What stands out

• 25 Gbps line rate per port – four times the bandwidth of 10G SFP+ in the same footprint.
• 850 nm VCSEL transmitter optimised for multimode fibre, eliminating costly single-mode optics for short links.
• Digital Diagnostics Monitoring (DDM) enables proactive monitoring of optical power, temperature, and voltage.
• Hot-pluggable SFP28 form factor allows non-disruptive installation and replacement.
• Broad compatibility with Netgear and other MSA-compliant 25G switches, routers, and NICs.
• Low power consumption (<1 W) supports high-density designs without exceeding power budgets.

Technical details

• Transceiver type: SFP28
• Data rate: 25 Gbps
• Ethernet standard: 25GBASE-SR
• Wavelength: 850 nm
• Max cable distance: 100 m on OM4 MMF, 70 m on OM3 MMF
• Fibre type: Multimode fibre (MMF)
• Connector: LC duplex
• Laser type: VCSEL
• DDM: Yes
• Power consumption: < 1.0 W
• Operating temperature: 0 °C to 70 °C
• Compliance: MSA, RoHS, CE, FCC
• Application: 25 Gigabit Ethernet, data centres, enterprise networks

Our verdict

The Lanview MO-NET-25GBASE-SR is a reliable, cost-effective way to upgrade your infrastructure to 25G. With solid compatibility, DDM, and low power draw, it is a smart choice for short-reach fibre links in modern data centres.
