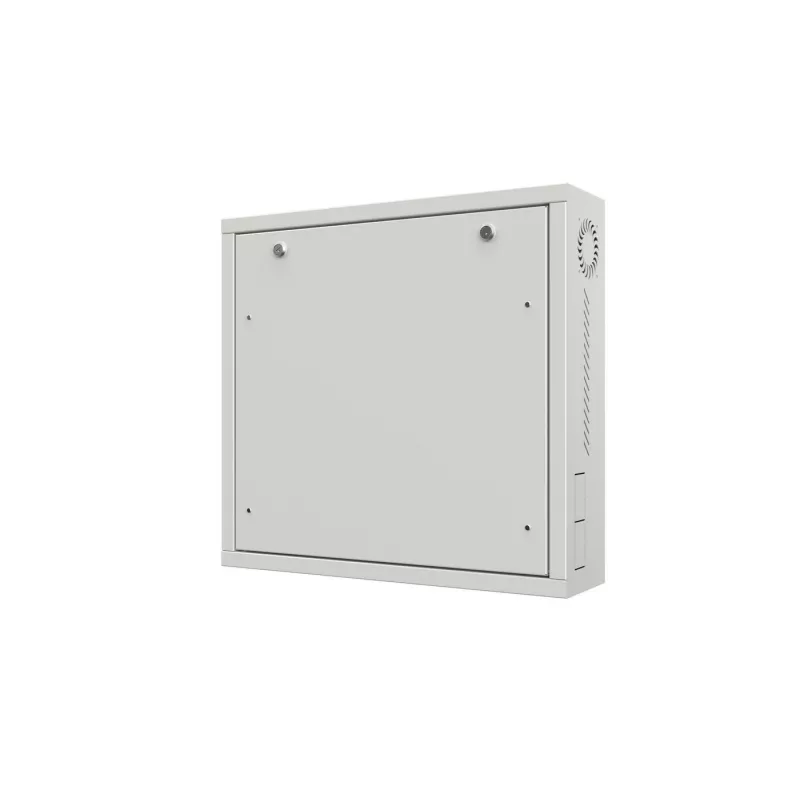

Lanview RWSLMWH1-NS -kaappi 2U seinäasennuskaappi valkoinen

Product Dimensions: 580 x 546 x 150mm
Security box solution to protect against unwanted access for DVR and video surveillance systems(NVR)
Keeping sensitive data locked up
This is the ideal solution to secure your video surveillance system from unauthorized access; in fact, it allows you to install a video recorder and a monitor inside, as well as smaller switches using the 1U 19" bracket provided.
Convenience

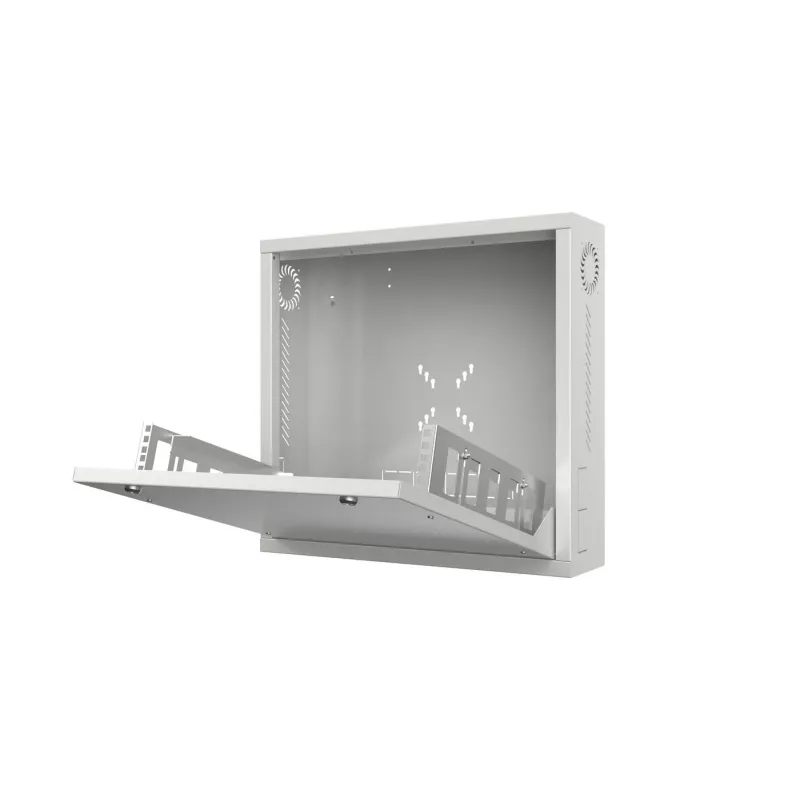

The devices can be installed directly on the cover which allow a quick and practical access thanks to the 90° opening. The devices will therefore be found in a horizontal position. The monitor is installed on the bottom where the VESA 50/75 and 100 attachment is located.
Safety
The single-piece metal structure is particularly solid and robust and, together with the double lock provided with different keys, guarantees maximum safety and protection.
Versatility
the sides have pre-cut profiles that facilitate the wiring management; the indisde is ready for installation of a 10" PDU. Equipped with a 1 unit bracket for fixing small rack equipment and an adjustable L-shaped bracket for DVR installation. Slits on all sides of the box conduct away heat; two fans can be installed into the sides for enhanced heat dissipation.
Features
Metal cabinet for video surveillance with door and double key lock (different keys)
Tray for housing equipment equipped with 19" 1U bracket with length 36.5 cm, adjustable in width (minimum 24 cm, maximum 48 cm)
L-shaped bracket for fixing equipment with no 19" connection (minimum height of 1 cm to 5 cm maximum)
Possibility of replacing the 1U bracket with 2U bracket for housing 2 peripherals (monitor cannot be installed)
Fins for fixing a 10" PDU (width adjustable from 25.7 cm to 34.2 cm)
Sides provided with passive dissipation slots; upper part ready for fixing a fan to increase the air flow; pre-cut profiles for cable entry in the lower part of the side (dimensions 13 x 4 cm)
Roof equipped with slots for heat exchange and two pre-cut profiles for cable entry (dimensions 6.5 x 4 cm)
Base equipped with slots for heat exchange and a pre-cut profile for cable entry (dimensions 6.5 x 4 cm)
Bottom fitted with VESA connection 50x50, 75x75, 100x100 suitable for monitor installation
Back with 11 mm spacers for wall mounting
Package contents
Gray video surveillance cabinet
Pair of 19 "2U brackets
Two locking keys

Lanview RWSLMWH1-NS. Type: Wall mounted rack, Rack capacity: 2U. Weight: 9.7 kg. Product colour: White
