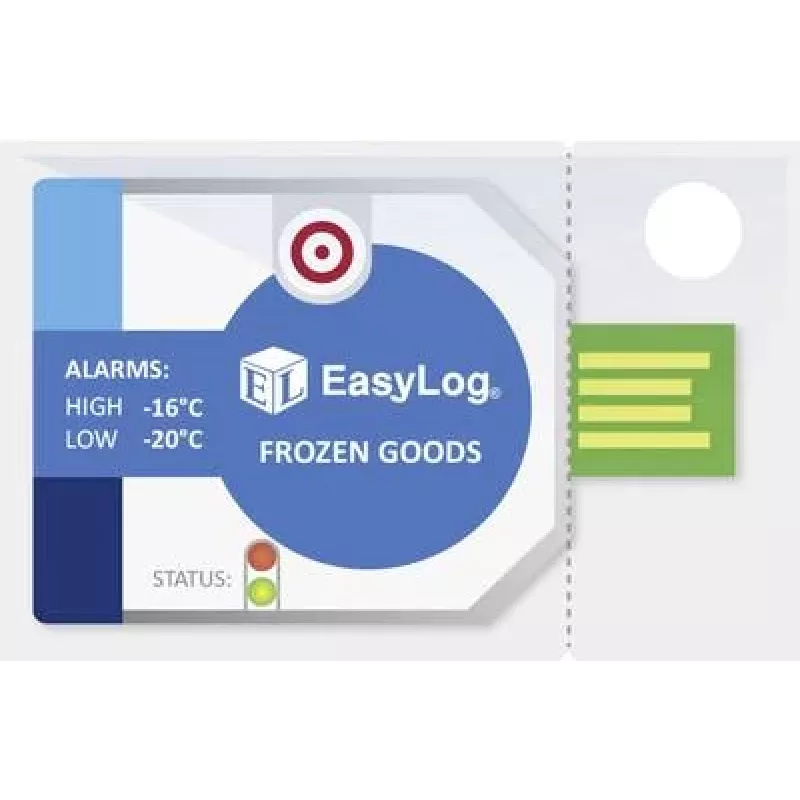

Lascar Electronics EL-CC-1-002 lämpötilan dataloggari -30...+60 °C (EL-CC-1-002)

Monitoring temperature-sensitive shipments is critical, yet traditional loggers are bulky, expensive, and require manual data retrieval. The Lascar Electronics EL-CC-1-002 solves this by providing a compact, single-use USB temperature data logger that automatically records conditions during transit and storage.

Who is it for

This logger is ideal for pharmaceutical distributors, food logistics providers, and anyone needing to verify cold chain integrity for products that must remain between 2°C and 8°C, such as vaccines, biologics, or perishable foods.

Main features

• Measures from -30 to +60°C with ±0.5°C accuracy
• Stores 8000 readings at a fixed 10-minute interval
• Pre-programmed alarm thresholds at 2°C and 8°C
• LED indicators for status and alarm conditions
• IP67 rated for protection against dust and water
• Built-in non-replaceable lithium battery with up to 90 days life
• USB 2.0 interface for quick data download
• Compatible with free EasyLog CC software

Specifications

• Measurement range: -30 to +60°C (-22 to +140°F)
• Accuracy: ±0.5°C (±0.9°F)
• Resolution: 0.1°C (0.2°F)
• Logging capacity: 8000 readings
• Sample rate: 10 minutes (fixed)
• Start delay: 30 minutes (fixed)
• Alarm thresholds: 2°C and 8°C
• Data interface: USB 2.0
• Software: EasyLog CC (free download)
• IP rating: IP67
• Battery type: built-in lithium metal (non-replaceable)
• Battery life: up to 90 days
• Logger type: single-use / disposable
• Operating humidity: 0 to 100% RH (non-condensing)

Tips

Place the logger in close proximity to the temperature-sensitive product, avoiding direct contact with cooling elements or heat sources. After the shipment is complete, connect the logger to a PC via USB and launch EasyLog CC to generate a PDF report of the temperature history.
