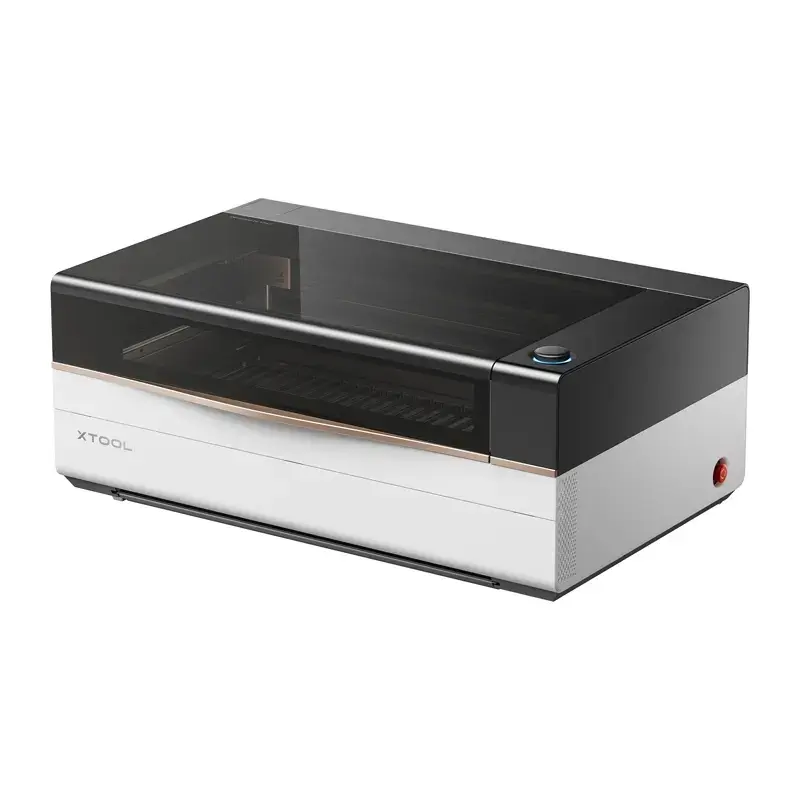

Lasergravauskone xTool P3 80W — erittäin tarkka kompakti muotoilu

The xTool P3 80W laser engraving machine combines an 80 W CO2 laser with advanced automation to provide a large working area (915 x 458 mm) and high speeds up to 1,200 mm/s. Designed for both creative projects and small-scale production, the P3 supports cutting and engraving across many materials while offering safety features and options for expansion such as an optional 5 W IR module, feeder and rotary attachment.

Advantages

The xTool P3 offers high power and long tube life for extended operation, an Automated Creation System (ACS™) that handles auto-positioning, LiDAR ranging and autofocus, plus dual integrated cameras for accurate framing and fine-detail work. Built-in safety systems include multiple flame and temperature sensors and optional automatic fire suppression. The machine supports variable batch engraving, smart nesting to maximize material use, and modular accessories (feeder, RA3 rotary, interchangeable lenses) for versatile production workflows.

Key specifications

• Manufacturer: xTool
• Model: P3 (P0101000119)
• Laser type: 80 W CO2 laser (5 W IR optional)
• Working area: 915 x 458 mm
• Max. working speed: 1,200 mm/s; X-axis acceleration: 19,600 mm/s²
• Max. cutting thickness (linden wood): 20 mm (one pass)
• Max. cutting thickness (acrylic): 25 mm (one pass)
• Max. material height: 220 mm
• Rotary engraving diameter: 0–200 mm
• Laser spot sizes (lens dependent): S 0.14×0.16 mm (optional), M 0.15×0.18 mm (standard), L 0.18×0.20 mm (optional)
• Positioning accuracy: 0.2 mm; movement accuracy: 0.01 mm
• Built-in cameras: 16 MP SkyView panoramic + proximity camera + 2 side cameras
• Measurement & focusing: LiDAR measurement, AutoLift Base, Autofocus
• Software & formats: xTool Studio; SVG, DXF, JPG, JPEG, PNG, BMP, TIF
• Connection: USB, Wi‑Fi; OS compatibility: Windows, macOS
• Dimensions & weight: 1250 × 780 × 496 mm; 105 kg
• Power: max input 1400 W; 100–240 V AC, 50/60 Hz
• Safety: Class 1 laser safety; flame and temperature sensors; emergency stop and lid/waste safety interlocks

How to use

Place material on the workbed and secure it with the included clamps or fixtures. Use xTool Studio to prepare and import designs in supported file formats, then select material presets or let EasySet™ 2.0 detect the QR-coded material settings automatically. Start a preview using the camera or Smart Camera Preview to check placement and nesting; ACS™ will perform auto-positioning and LiDAR-based focusing. Begin the job and monitor progress via live side or front camera views. For tall objects, the AutoLift Base adjusts the working height automatically. For rotary engraving or long-sheet processing, install the RA3 rotary or the optional feeder according to their guides and MagSwap™ instructions.

Recommendations

Use proper ventilation or the SafetyPro™ AP2 Max air purifier when cutting or engraving materials that produce smoke or fumes. Verify material compatibility and appropriate lens choice before processing metal or thick acrylic. Keep the chamber clean, follow safety instructions, and install the optional CO2 fire suppression cylinder where local regulations or workshop conditions require rapid extinguishing.
