Laserkaiverrus- ja leikkauskone xTool F2 Ultra 2-in-1, 10W lasertoiminto

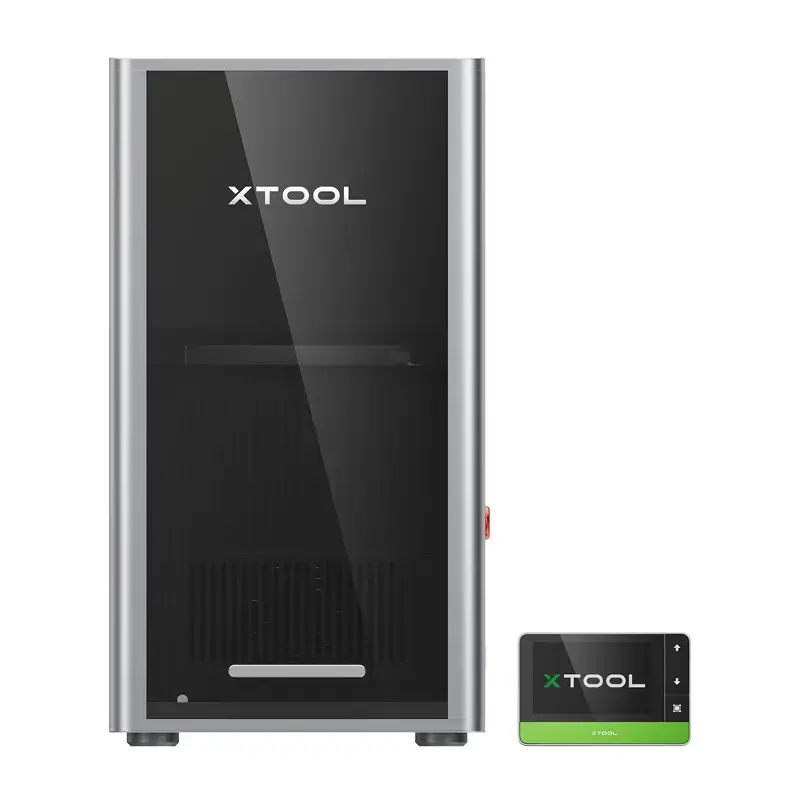

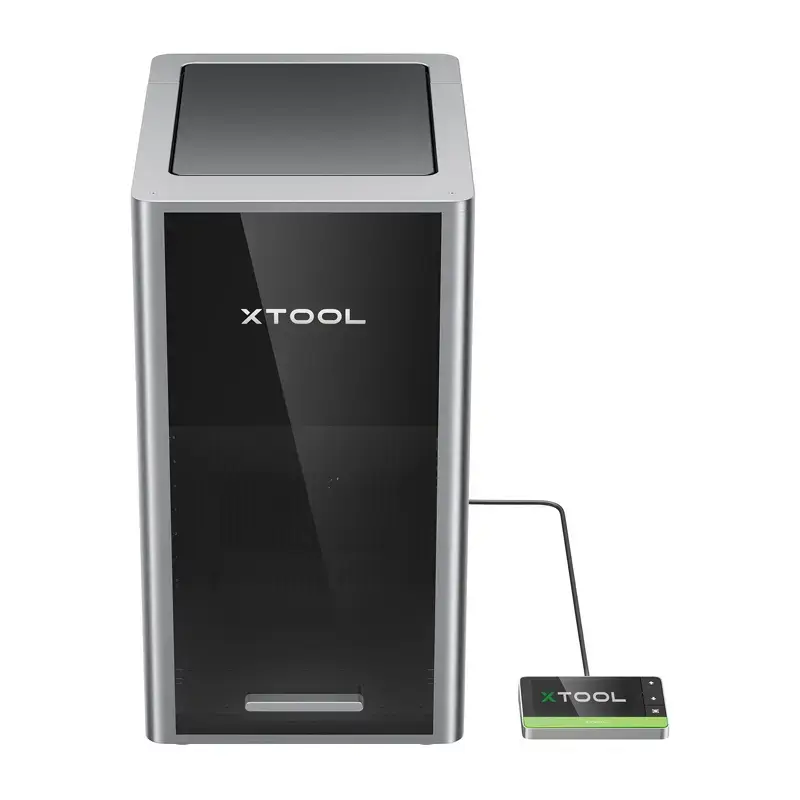

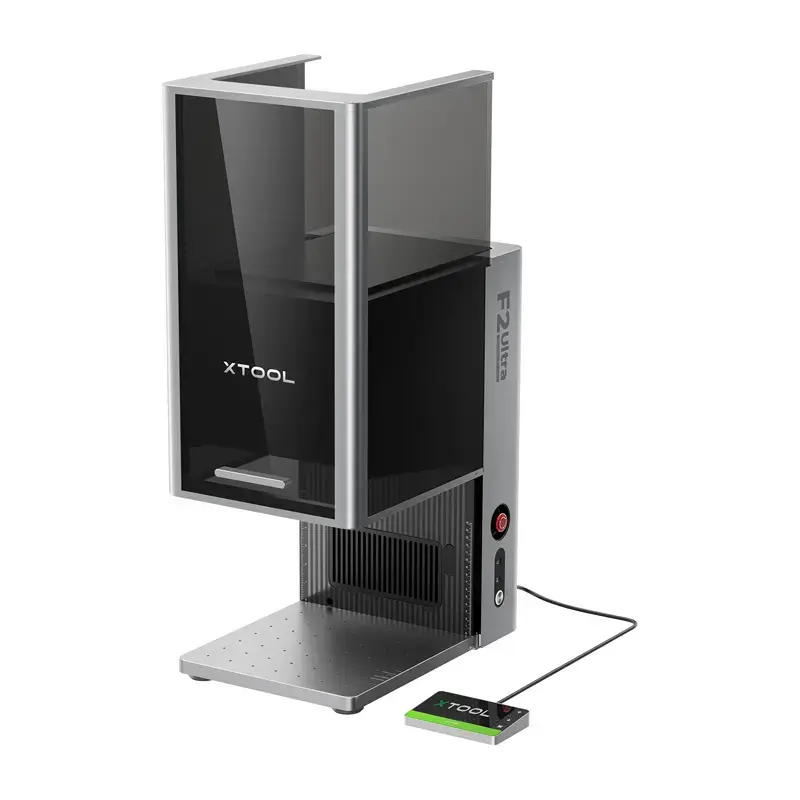

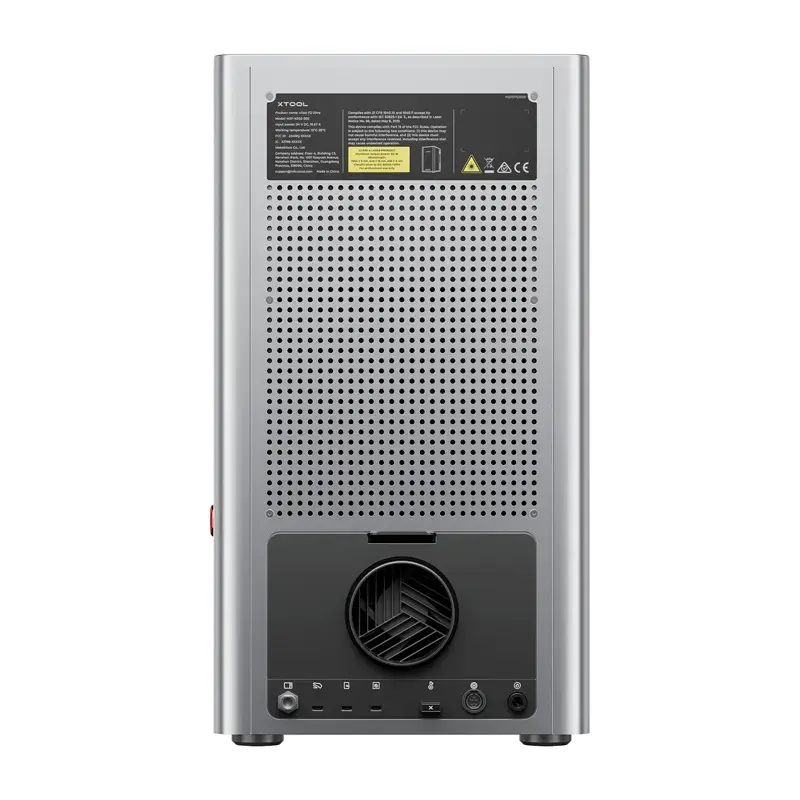

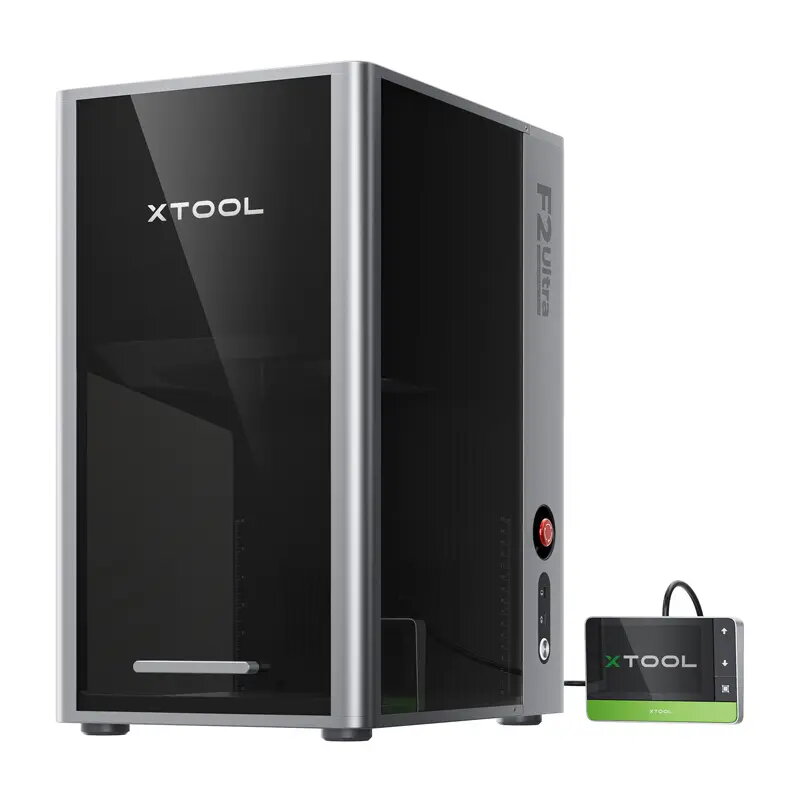

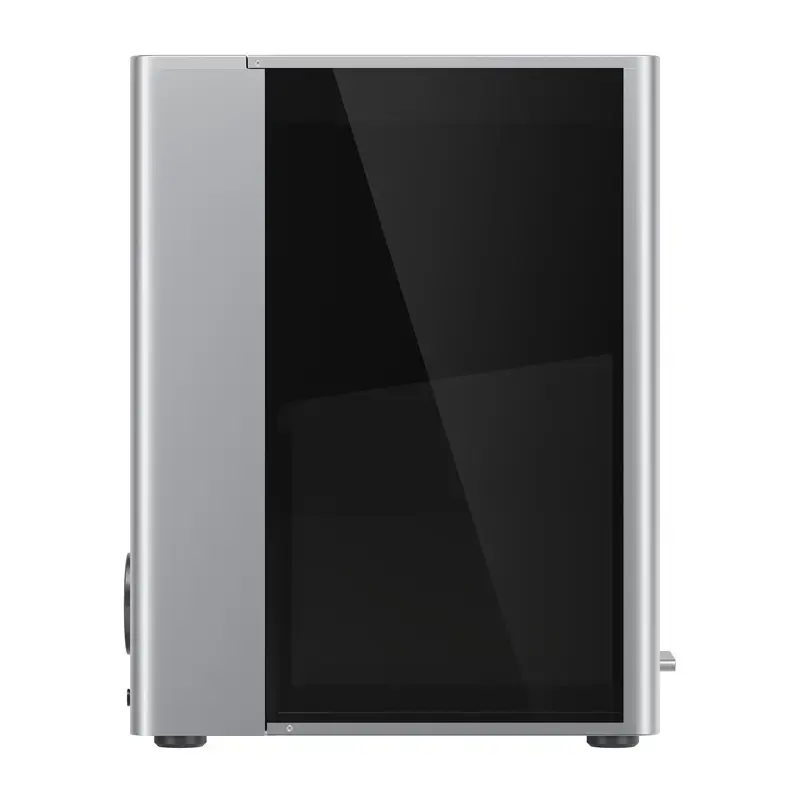

xTool F2 Ultra is a 2-in-1 laser engraving and cutting machine that combines a 60 W MOPA laser with a 40 W diode laser to expand material capabilities and processing modes. The device features dual 48 MP cameras, AI-driven material recognition and autofocus positioning for precise work across metals, plastics, wood, glass and other materials. A 220 x 220 mm work area (expandable to approx. 220 x 500 mm with an optional Auto Streamline™ feeder) and maximum engraving speeds up to 15,000 mm/s support efficient small-to-medium production and craft projects.

Advantages

The dual MOPA system pairs a 60 W MOPA laser with a 40 W diode laser to enable engraving, color marking, 3D embossing and cutting on a wide range of materials, including stainless steel, aluminum, brass and various plastics. Built-in AI automatically detects materials and applies optimized settings while dual 48 MP cameras improve positioning accuracy to about 0.2 mm. High speeds up to 15,000 mm/s, a larger-than-standard working area and optional feeder for extended length increase throughput for repetitive or batch tasks. Safety features include an enclosed cover, smoke extraction, emergency stop and fire alarm.

Suitable for

• Jewellery marking and decorative metal engraving
• Personalised gifts, signage and small-run production
• Woodworking items: cutting boards, coasters, inlays
• Prototyping and small-batch manufacturing
• Engraving on glass, stone, ceramics and plastics

Key specifications

• Manufacturer: xTool — Model: P1010155
• Laser configuration: 60 W MOPA + 40 W diode
• Operation modes: laser engraving, laser cutting
• Working area: approx. 220 x 220 mm; approx. 220 x 500 mm with optional feeder
• Max. speed: 15,000 mm/s (590.55 ips)
• Max. processing height: 150 mm; max. rotary diameter: 150 mm
• Max. cutting thickness (multiple passes): linden 23 mm; acrylic 20 mm
• Built-in cameras: dual 48 MP; positioning precision: 0.2 mm
• Focusing: autofocus; connection: USB / Wi‑Fi / IP
• Supported files: SVG, DXF, JPG, JPEG, PNG, BMP, TIF
• Supported software: xTool Creative Space / Atommm; OS: Windows / macOS
• Dimensions: 294 x 429 x 521 mm; weight: 21.6 kg
• Safety: Laser Class 4; max. device input power: 400 W

How to use

Install the pre-assembled xTool F2 Ultra on a stable, level surface and connect the power supply and controller using the supplied cables. Open xTool Creative Space (xcs) on a connected computer or use the touchscreen controller to import your design file (supported formats: SVG, DXF, JPG, PNG, etc.). Place the workpiece in the 220 x 220 mm work area (or use the optional feeder for longer pieces) and let the dual 48 MP cameras perform autofocus and positioning. Select material or allow the AI material detection to choose optimal settings, verify the preview and safety enclosure, then start the job. Monitor the process and use the emergency stop if required.

Recommendations

Use the recommended material settings from the xTool Creative Space library and run a short test on scrap material before full production. Ensure adequate ventilation or the extraction system is active, keep the cover closed during operation, and follow safety instructions for Class 4 laser equipment. For cylindrical items, use the compatible rotary accessory (sold separately).
