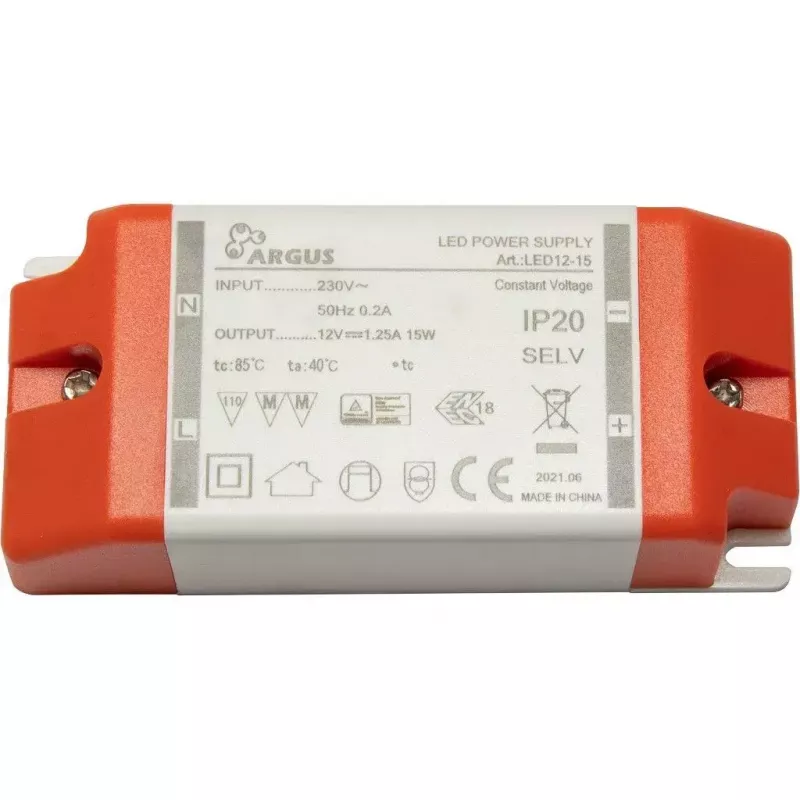

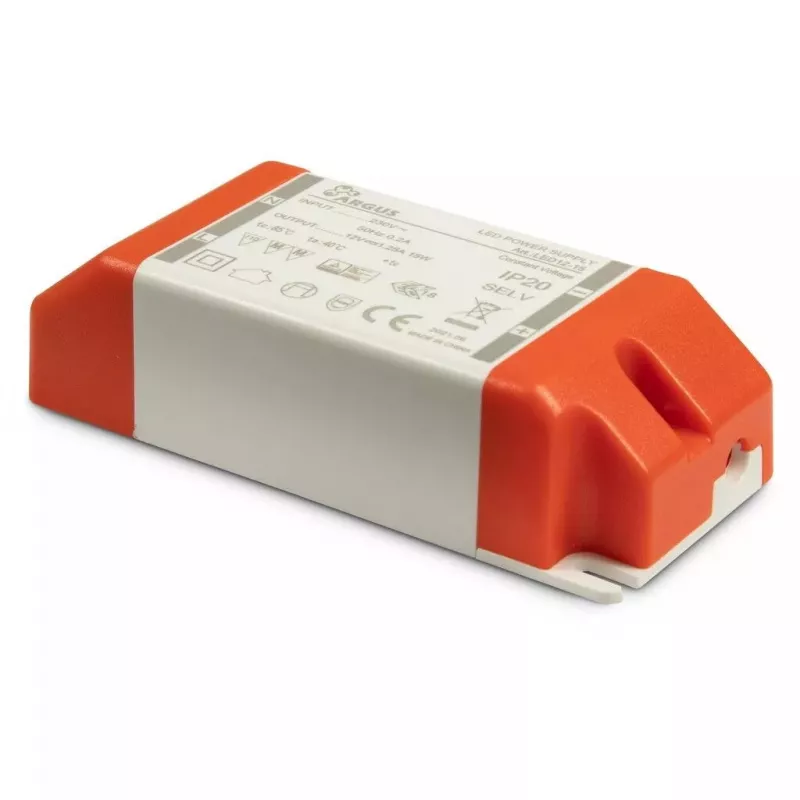

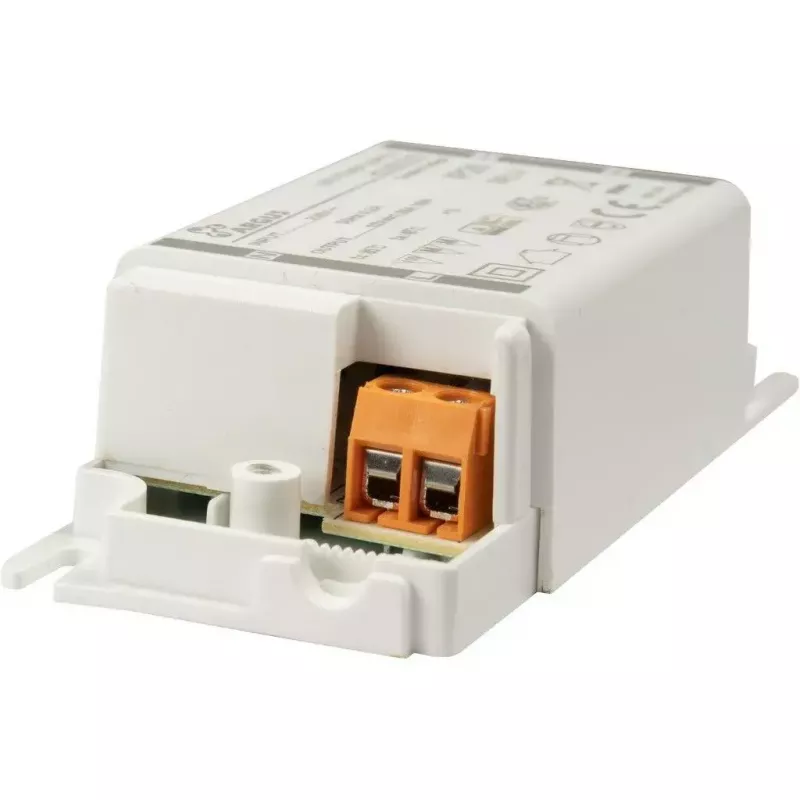

LED-ajuri Inter-Tech LED12-15 15W IP20 100000h

The Inter-Tech LED12-15 is a 15W LED driver that provides a 12V DC output at 1250 mA and is intended for indoor applications. It accepts AC input voltage in the range 207–253V, has an IP20 protection rating and an MTBF of 100,000 hours. The compact unit measures 40 mm × 90 mm × 24 mm and weighs 70 g, facilitating installation in fixtures and housings where space is limited.

Advantages

The LED driver features five protective circuits to safeguard connected LEDs and components against common electrical faults. Its long rated lifetime (MTBF 100,000 hours) reduces maintenance frequency. The 12V output and fixed 1250 mA current make it suitable for constant-voltage LED systems requiring stable supply. The IP20 rating and compact, lightweight construction support straightforward indoor mounting and integration.

Suitable for

• Indoor LED lighting fixtures
• Low-voltage LED strips and modules (12V)
• Under-cabinet and display lighting
• Small recessed and surface-mounted luminaires

Key specifications

• Power: 15 W
• Output voltage: 12 V DC
• Output current: 1250 mA
• AC input voltage: 207–253 V
• Protection class: IP20
• MTBF: 100,000 hours
• Dimensions (W×D×H): 40 × 90 × 24 mm
• Weight: 70 g
• Brand: INTER-TECH, MPN: 88882198, EAN: 4260455646963

How to use

Install the LED driver in a dry indoor location with adequate ventilation and secure it according to fixture manufacturer guidelines. Connect the AC input to a supply within 207–253 V AC, observing correct wiring and grounding practices. Connect the 12 V DC output to the LED load ensuring polarity is correct and the total LED current does not exceed 1250 mA. Do not expose the unit to moisture or install it in locations requiring a higher IP rating.

Recommendations

To ensure reliable operation, verify compatibility between the LED load and the driver's 12 V / 1250 mA output, avoid overloading, and mount the unit in a ventilated enclosure away from heat sources. For installations where moisture or dust protection is required, select a driver with a higher IP rating.
