Näyttövarsi Kensington One-Touch korkeussäädettävä K55470EU

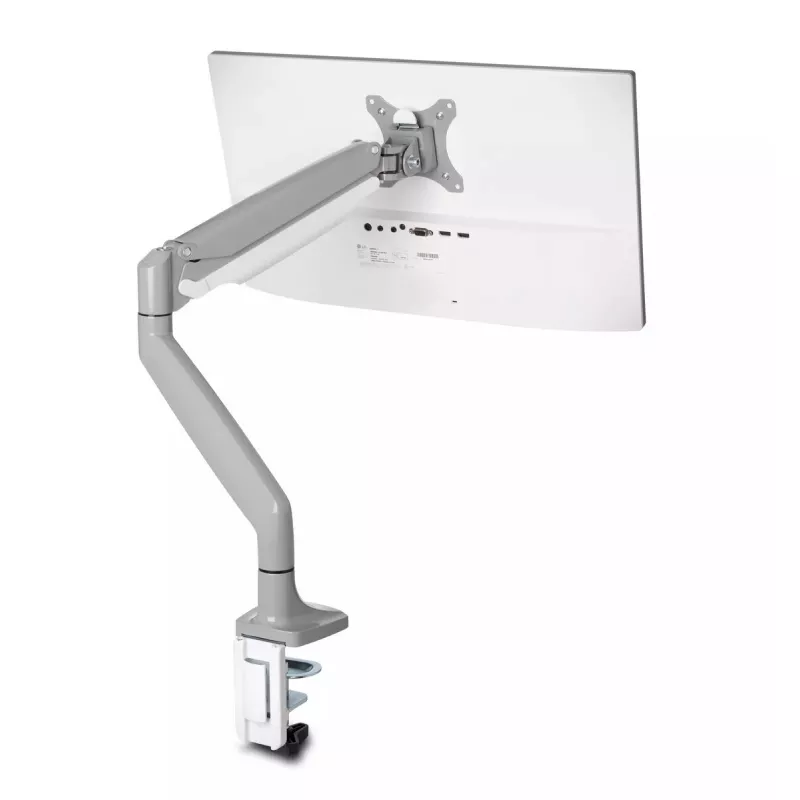

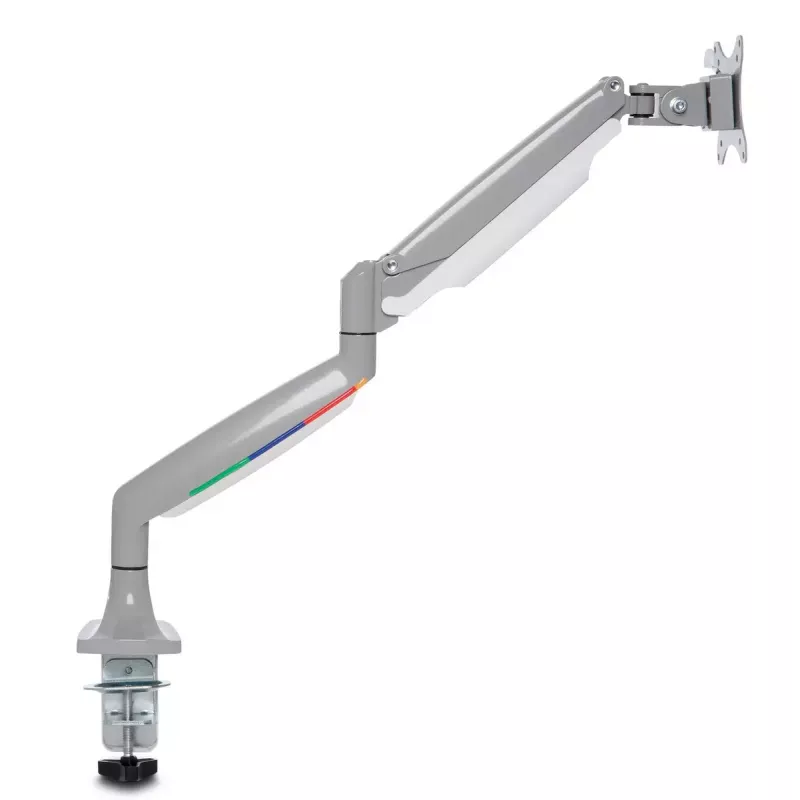

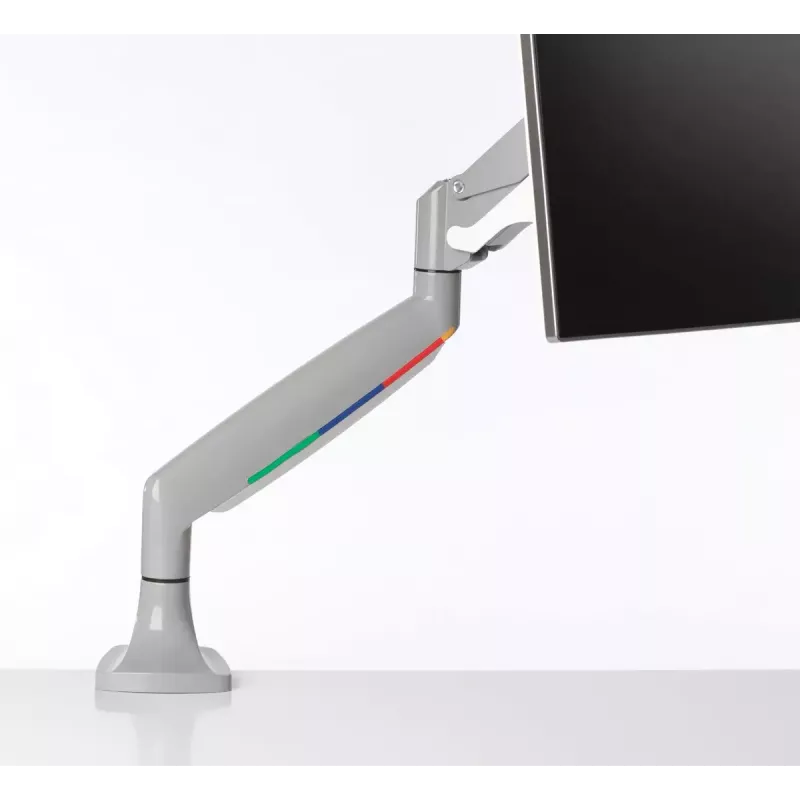

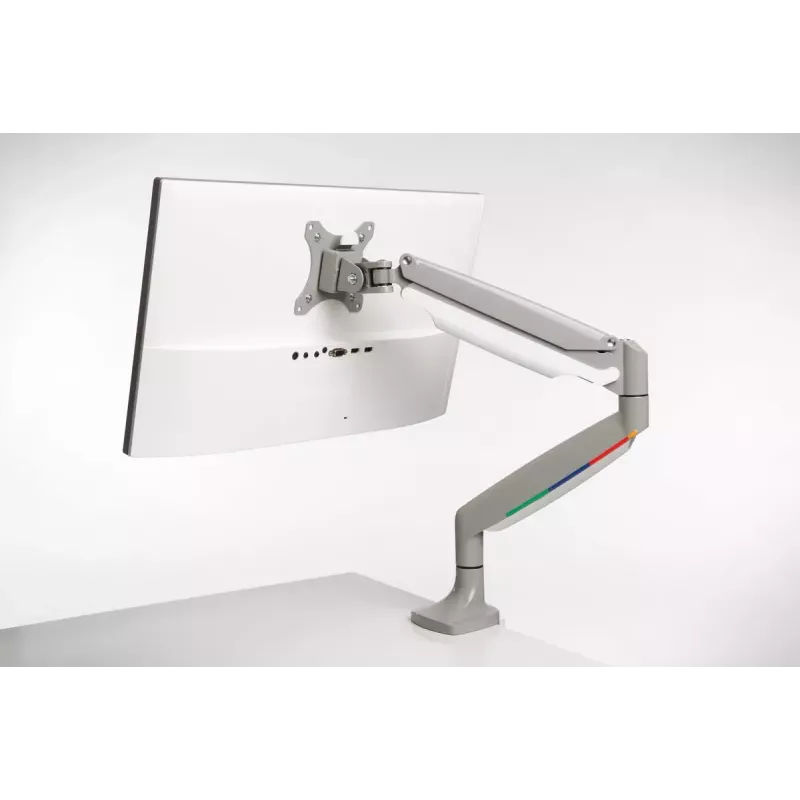

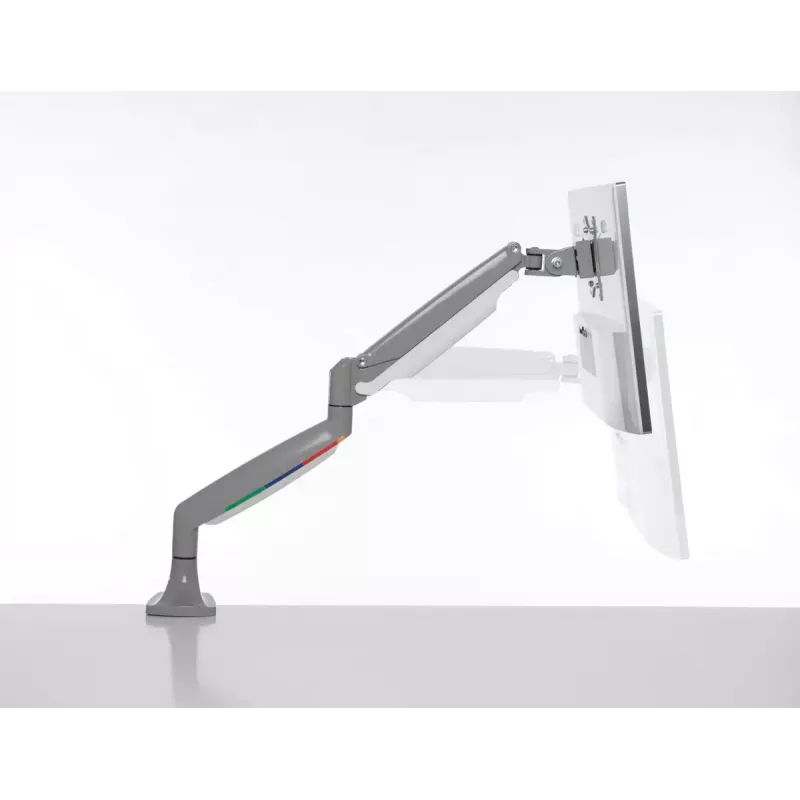

The Kensington One-Touch Height Adjustable Monitor Arm (K55470EU) improves posture and promotes proper eye alignment by allowing precise positioning of a single monitor. Designed for ergonomic comfort, the arm uses Kensington’s patented SmartFit® system and a gas-spring one-touch mechanism to adjust height, depth and angle, supporting flat and curved screens from 13" to 32" with a maximum weight of 9 kg. The arm is compatible with 75 x 75 mm and 100 x 100 mm VESA mounts and can be installed using the included c-clamp or grommet mount.

Advantages

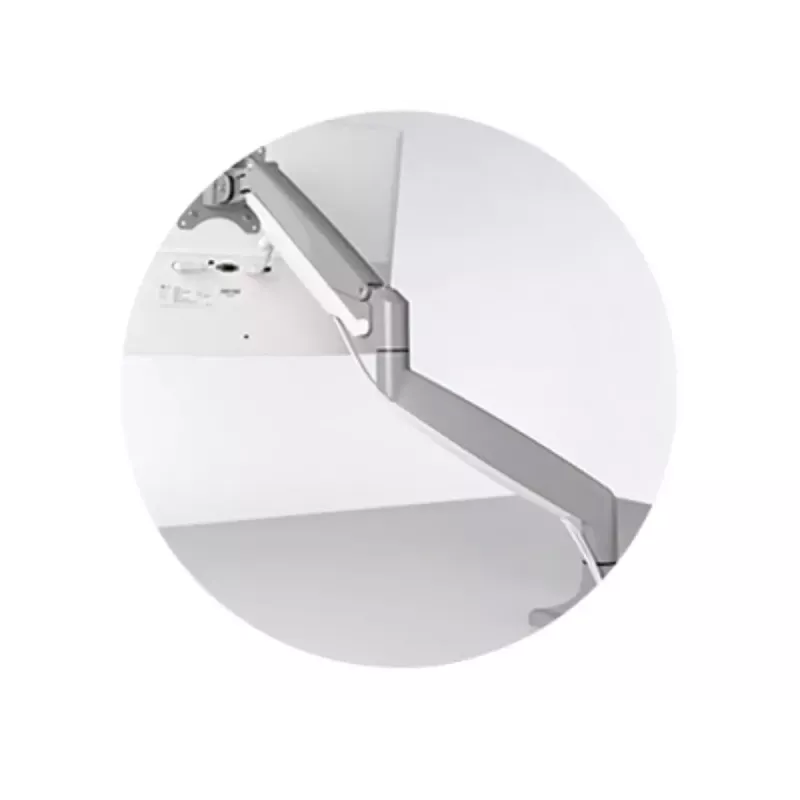

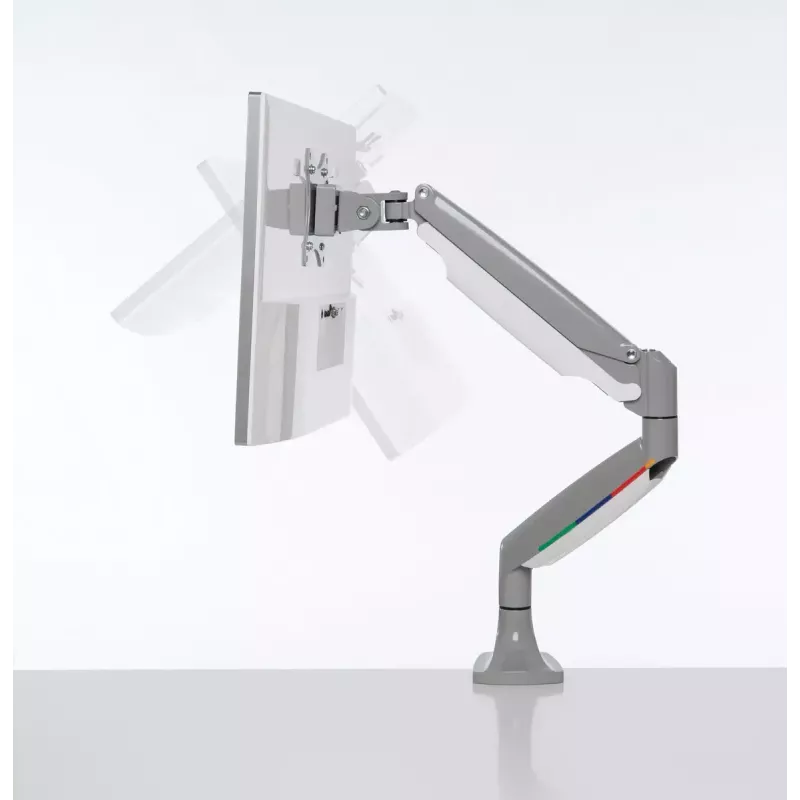

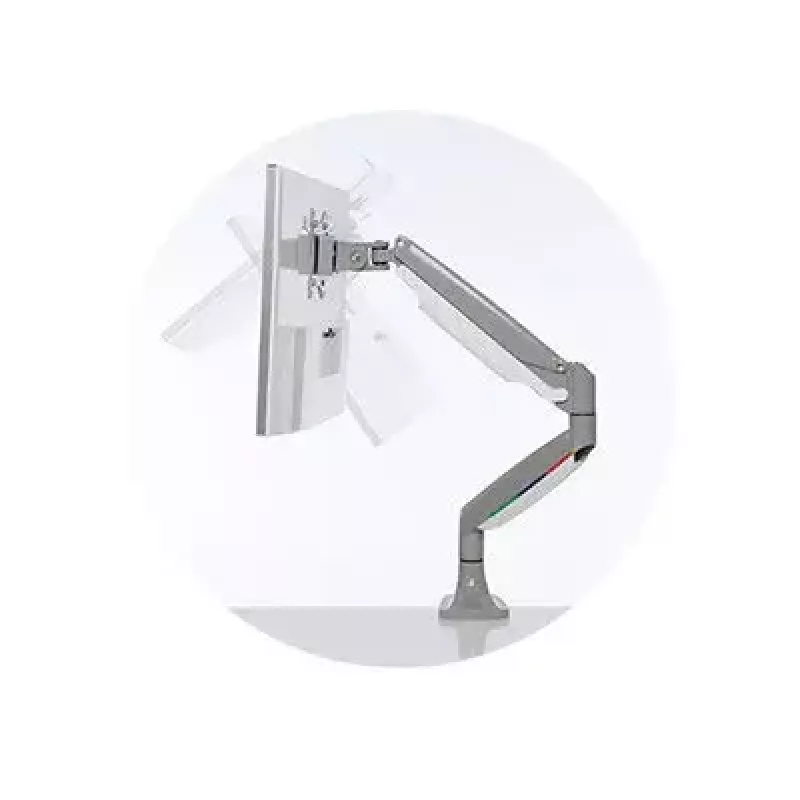

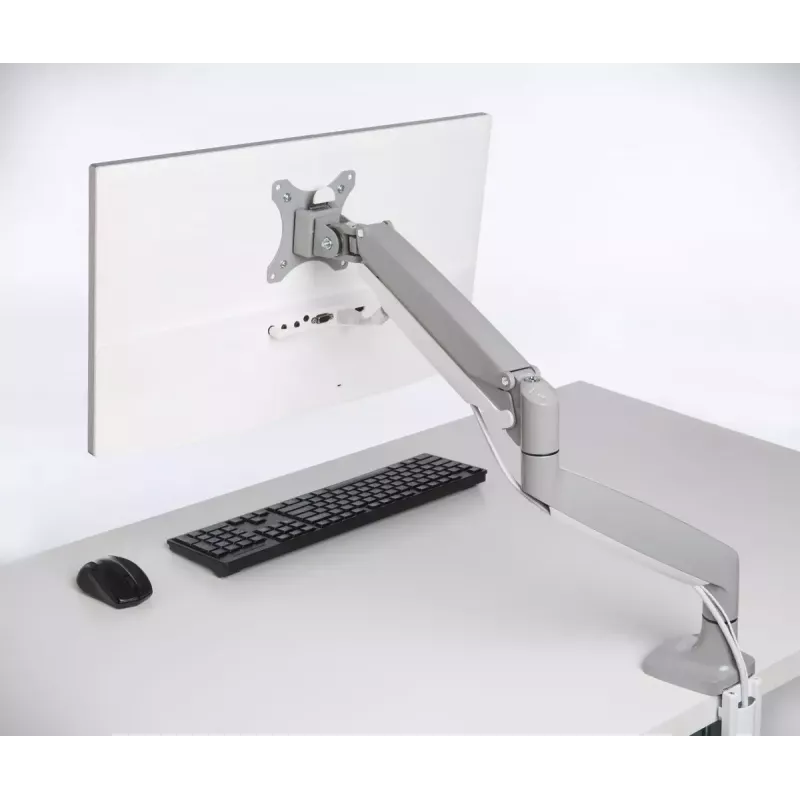

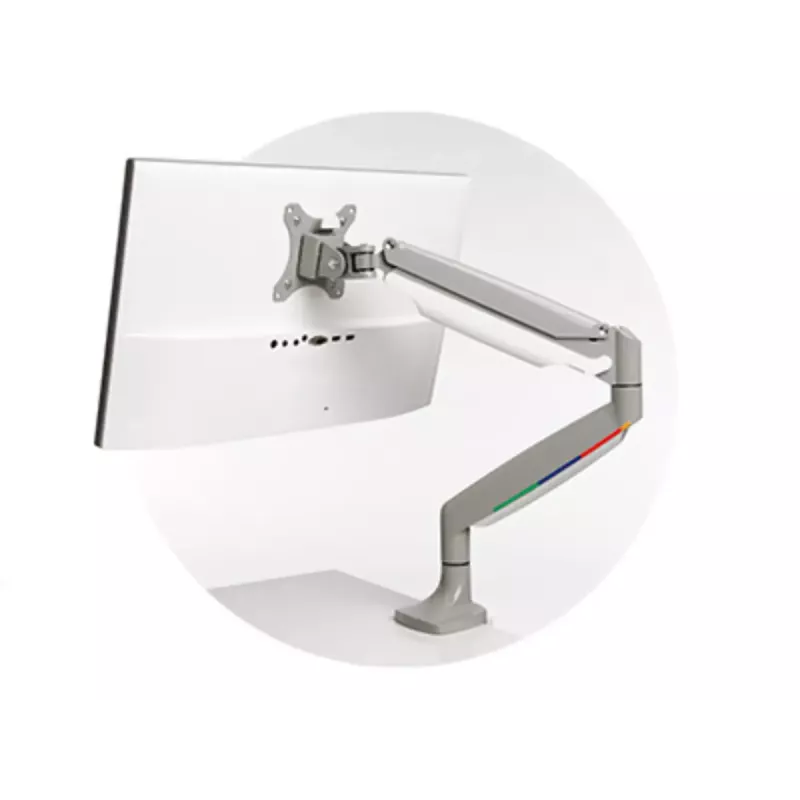

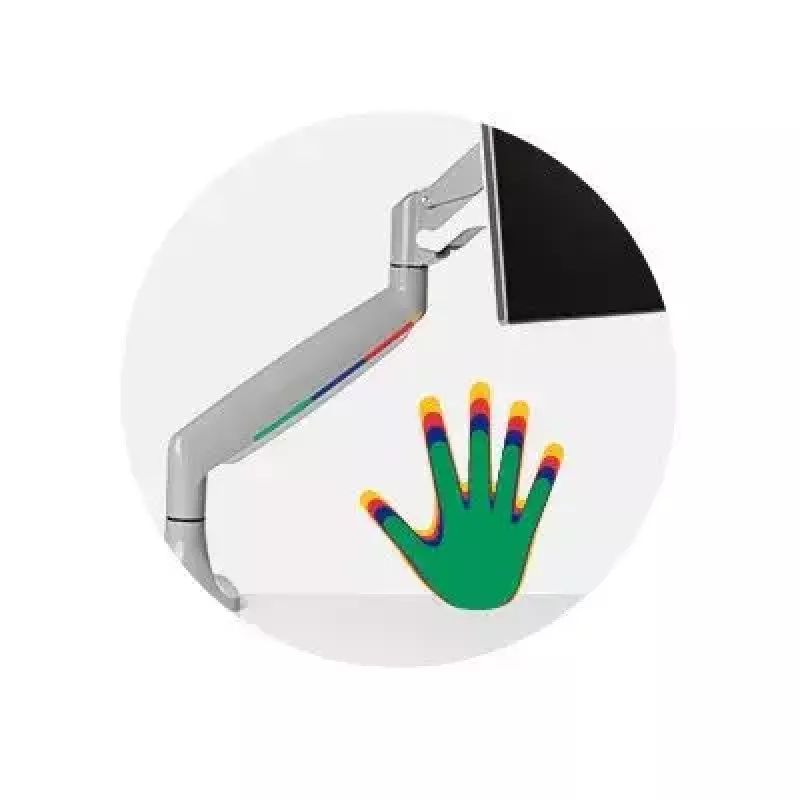

The SmartFit® system simplifies finding the correct ergonomic height based on proven research, while the built-in gas spring enables smooth one-touch height adjustment across a 170–505 mm range. The arm offers 180° swivel, +/-90° tilt and full rotation for portrait or landscape orientation. Its stability-focused design keeps monitors steady in any position, and an integrated cable management system keeps workspace cables organised. Quick-release VESA plate and included toolkit make installation and removal straightforward. The product meets ANSI/BIFMA performance and safety standards.

Suitable for

• Home and office workstations with a single monitor (13"–32")
• Users who need ergonomic height and angle adjustments for improved posture
• Setups requiring portrait or landscape rotation and smooth monitor articulation
• Desks that accept c-clamp (10–85 mm) or grommet (10.5–50 mm) mounting

Key specifications

• Model: Kensington One-Touch Height Adjustable Monitor Arm K55470EU
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Supported screen size: 13"–32"
• Maximum weight capacity: 9 kg
• Height adjustment range: 170–505 mm
• Swivel range: 180° (±180°)
• Tilt range: ±90°

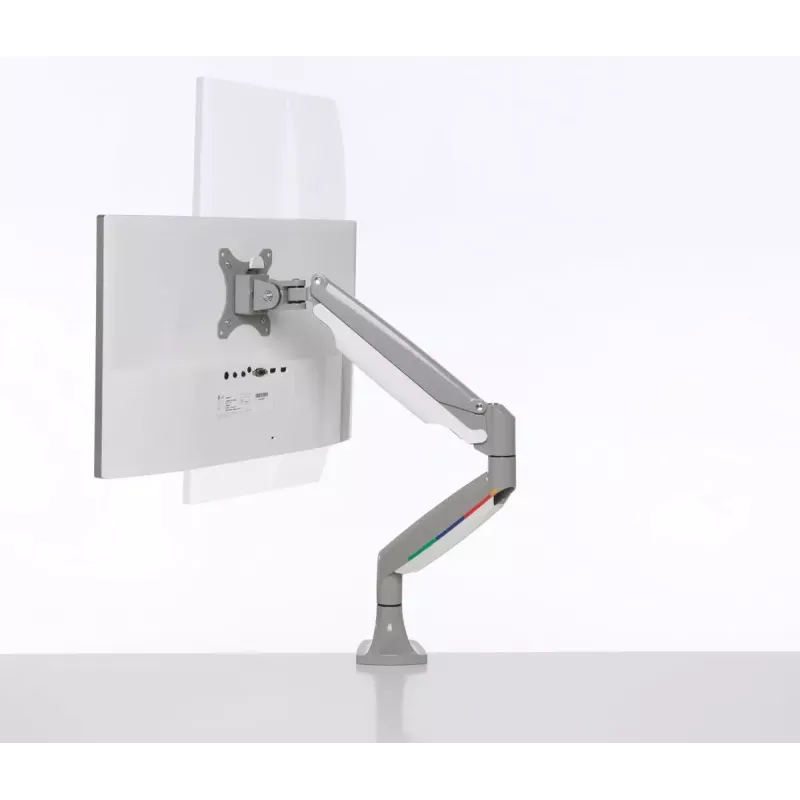

• Rotation: supports portrait and landscape

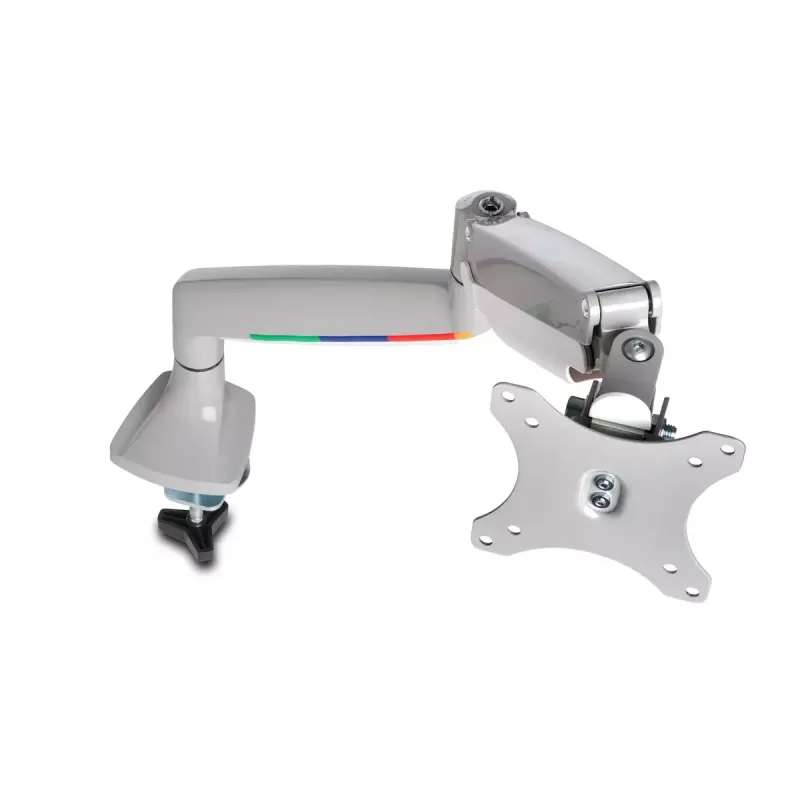

• Mounting options: c-clamp (desktop thickness 10–85 mm) and grommet (diameter 10.5–50 mm)
• Colour: Grey, Silver
• Product weight: 3.34 kg

How to use

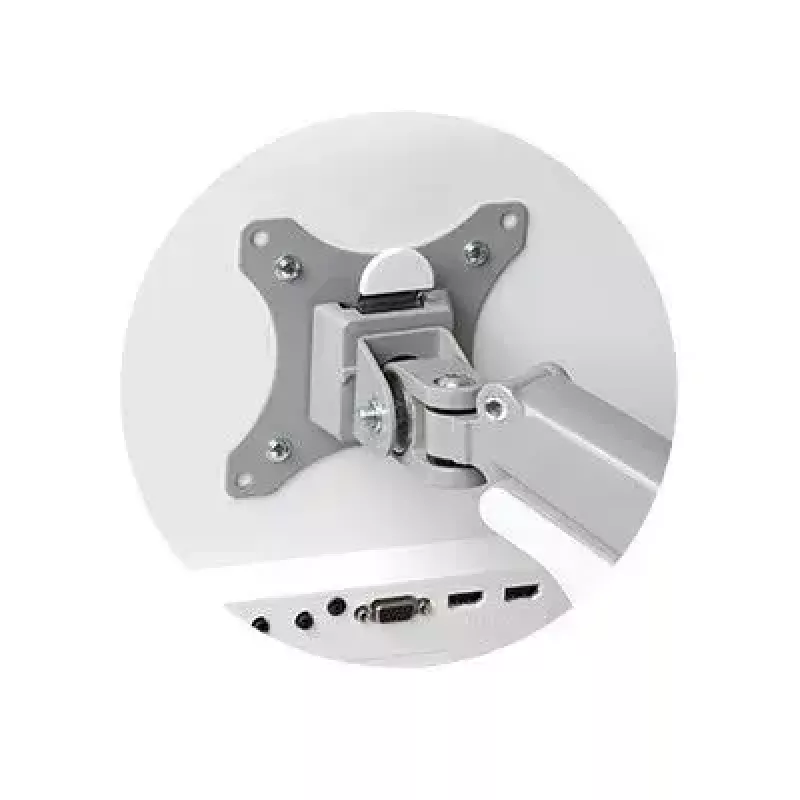

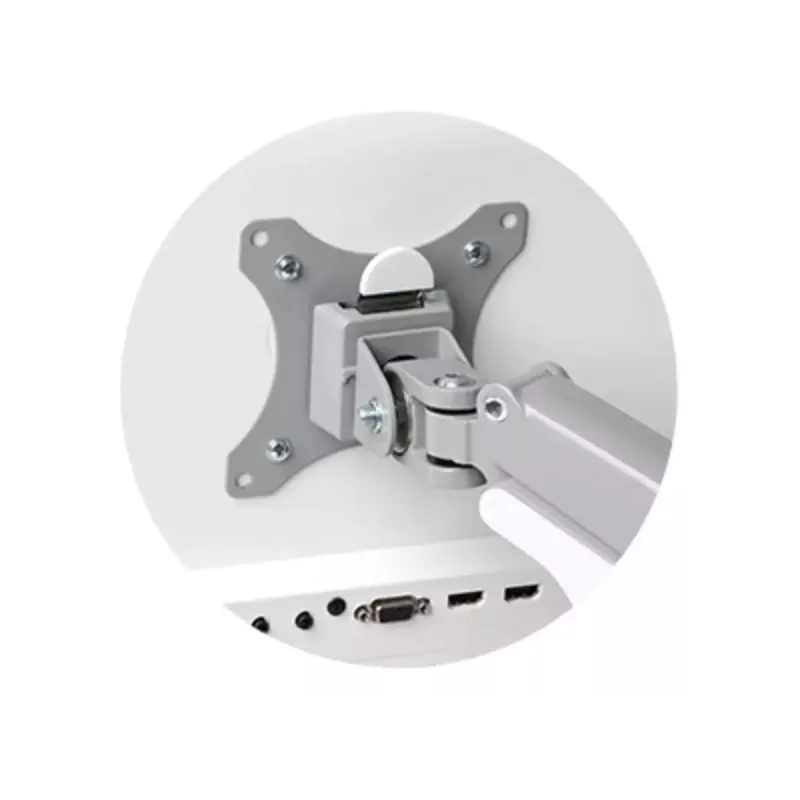

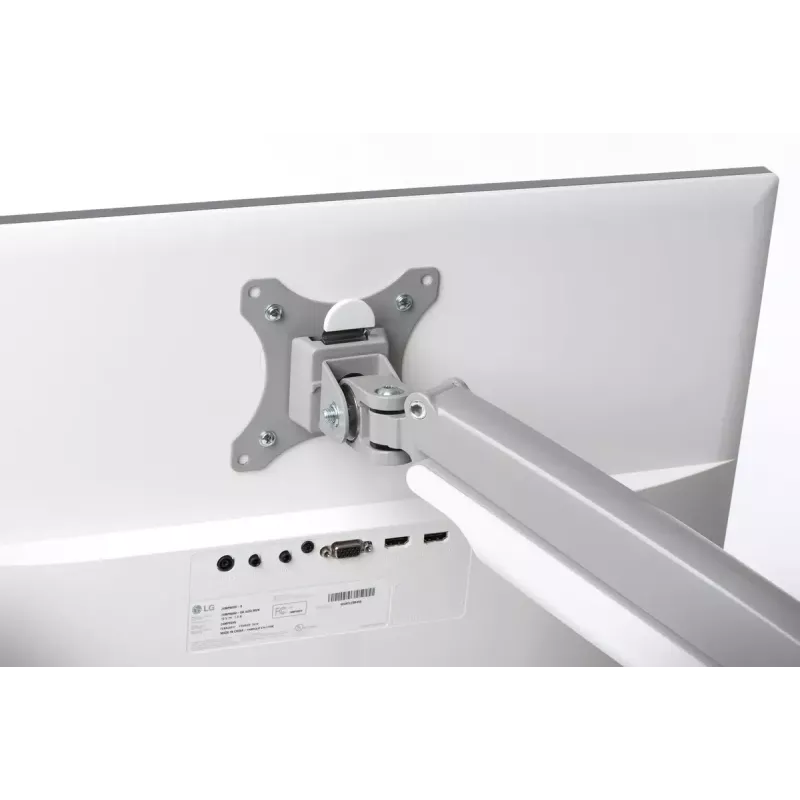

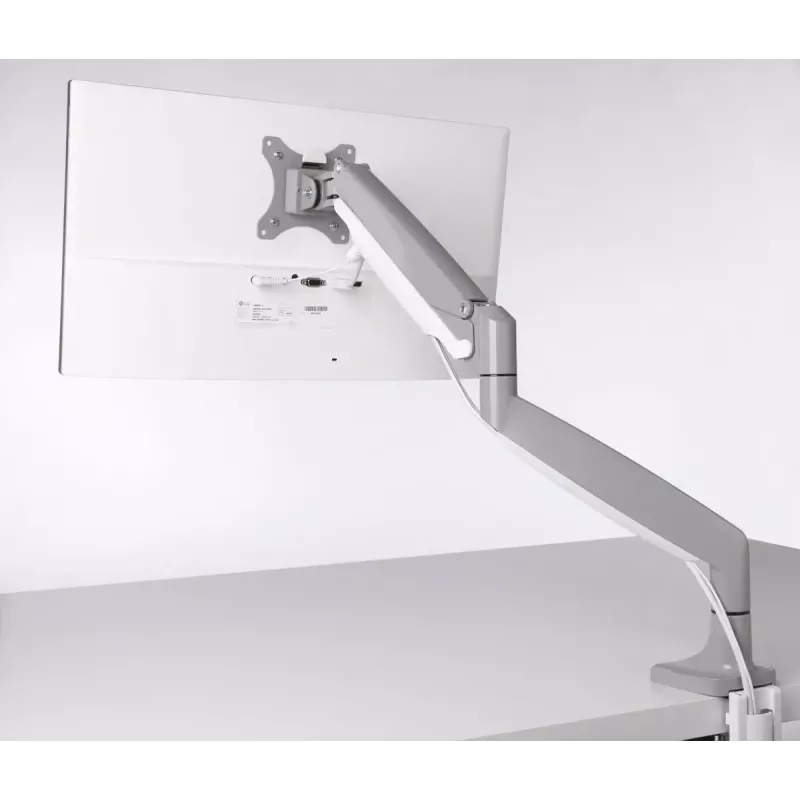

Attach the quick-release VESA plate to the back of your monitor, then secure the plate to the arm. Choose either the c-clamp or grommet mounting option and fasten the arm to the desk following the included instructions. Use the one-touch control to raise or lower the monitor within the 170–505 mm range, tilt and swivel the screen as needed, and rotate between landscape and portrait. Route monitor cables through the integrated cable management channels to keep them tidy.

Recommendations

For optimal ergonomics, position the top of the screen at or slightly below eye level and set the monitor 50–70 cm from your eyes. Do not exceed the 9 kg maximum weight capacity and ensure VESA holes match 75 x 75 mm or 100 x 100 mm before installation.
