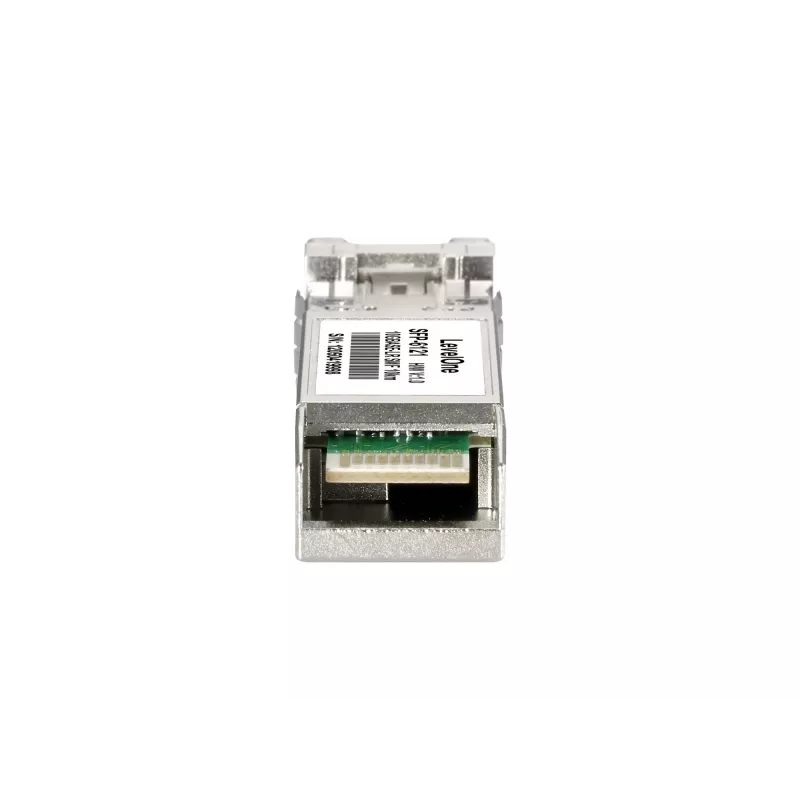

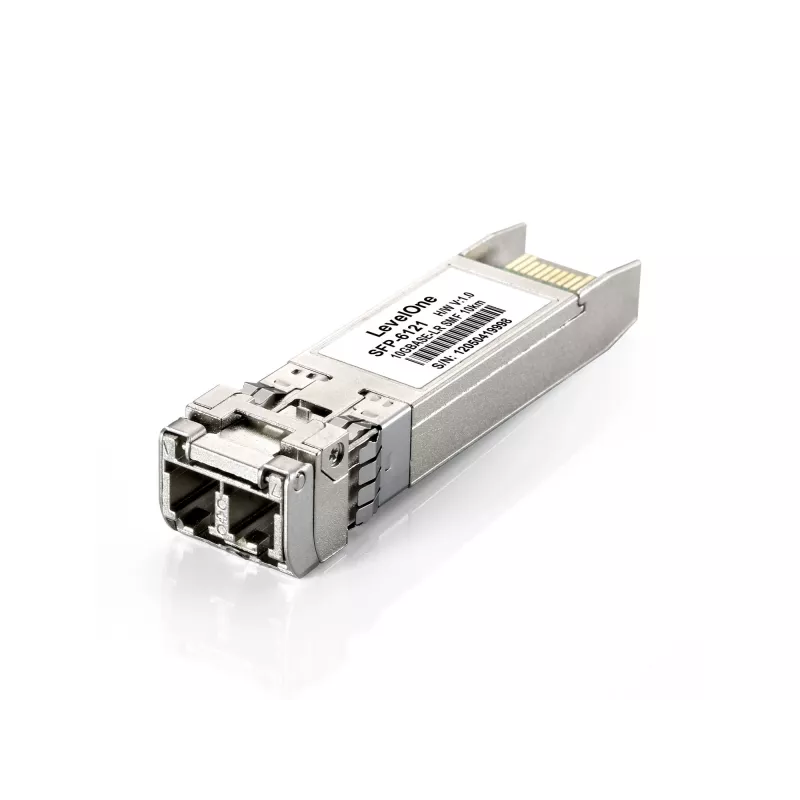

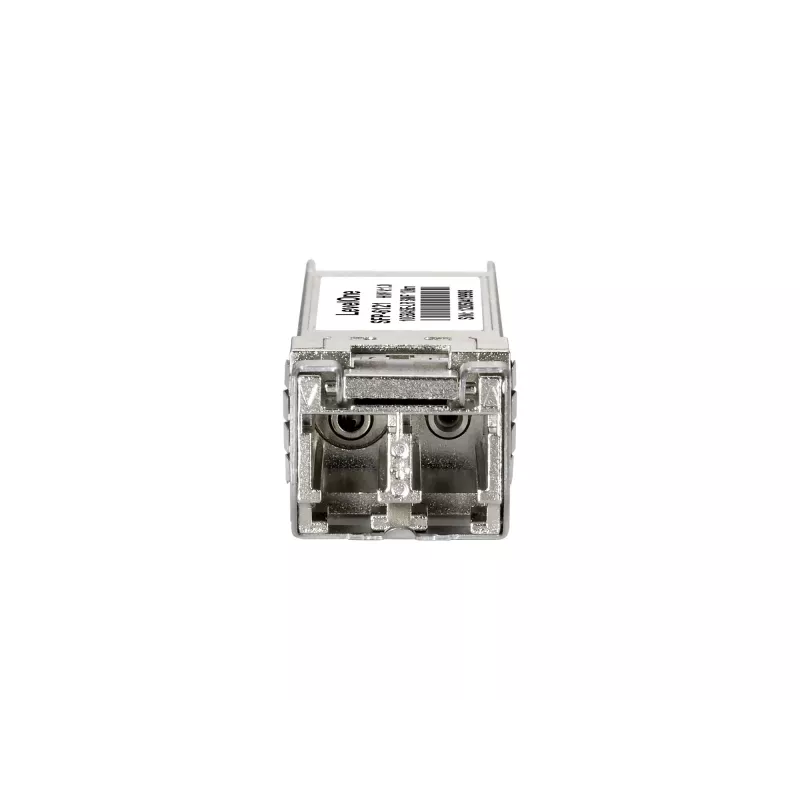

LevelOne 10Gbps Single-Mode SFP+ lähetin-vastaanotin, 10 km, 1310 nm

LevelOne SFP+ Transceiver is a hot-swappable optical module designed for 10 Gigabit Ethernet links. This single-mode SFP+ transceiver operates at 10 Gbps with a wavelength of 1310 nm and supports optical transmission up to 10 km over single-mode fiber. The compact module (57 × 12 × 13.7 mm) requires a 3.3 V input and complies with EN 60825-1, CE and FCC standards, making it suitable for data center, enterprise and storage area network installations.

Advantages

The transceiver supports the SFP Multi-Sourcing Agreement (MSA) for broad compatibility with MSA-compliant switches and routers, offers hot-swappable operation to avoid downtime, and includes a duplex LC connector for straightforward fiber connections. It implements Digital Optical Monitoring (DOM) / Digital Diagnostics Monitoring Interface (DDMI) for real-time status and diagnostic information and is designed for low power consumption in ultra-high-speed operation.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and routers
• Interconnects within data centers and enterprise networks
• Storage area network (SAN) links requiring 10 Gbps over single-mode fiber

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10 000 Mbit/s (10 Gbps)
• Wavelength: 1310 nm
• Maximum reach: 10 km (single-mode fiber)
• Connector: duplex LC
• Operating voltage: 3.3 V
• Operating temperature: 0 °C to 70 °C
• Dimensions: 57 mm x 12 mm x 13.7 mm
• Certifications: EN 60825-1, CE, FCC
• Weight: 0.02 kg

How to use

Power down the host port or follow the vendor’s hot-swap procedure if supported, insert the SFP+ transceiver into the SFP+ cage until it clicks into place, and connect duplex LC fiber patch cords to the transceiver. Confirm that the transceiver is recognized by the switch or router and monitor link status via the device interface or DOM/DDMI readings. Follow the host equipment manufacturer’s instructions for secure insertion and removal.

Recommendations

Use single-mode fiber with appropriate transceiver-compatible connectors and certified fiber patch cords for runs up to 10 km. Ensure firmware and hardware of the host device support SFP+ modules and enable DOM/DDMI if you need remote monitoring. Store and handle the transceiver in an ESD-safe environment and protect the LC ports with dust caps when not in use.
