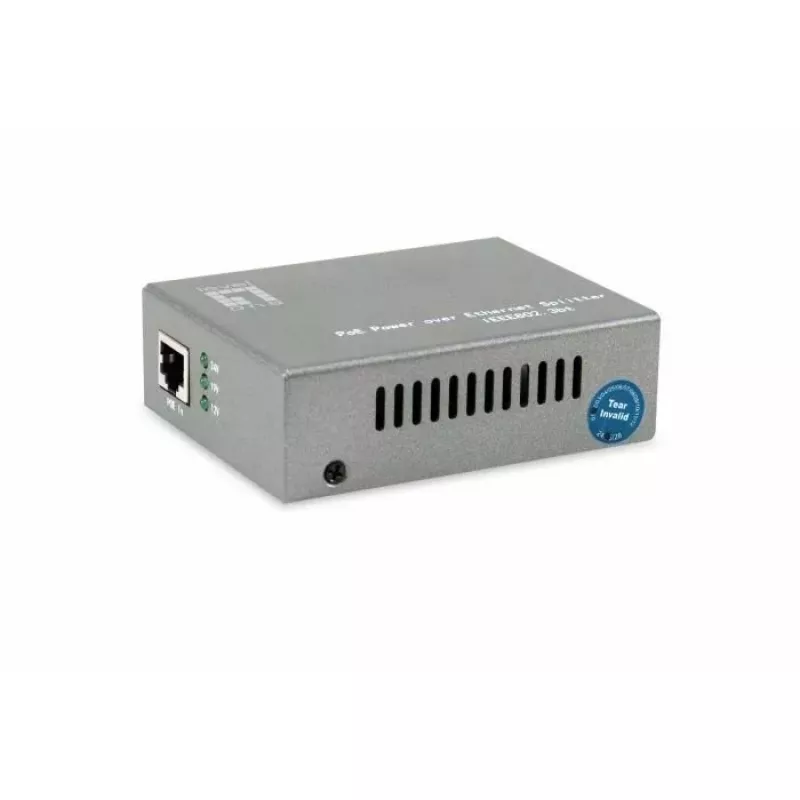

LevelOne Gigabit PoE-splitteri RJ45 2,5Gbps 60W harmaa

The LevelOne Gigabit PoE Splitter is a high-performance device designed to split Power over Ethernet (PoE) and data signals, delivering both to non-PoE devices. Supporting 2.5 Gigabit Ethernet and up to 60W power output, it is ideal for powering demanding equipment such as IP cameras, wireless access points, and IoT devices.

Advantages

This PoE splitter simplifies installation by eliminating the need for separate power cables. It supports the latest PoE standards (IEEE 802.3af/at/bt Type 4) and provides a stable 12V DC output with up to 5A current. The metal housing ensures durability and effective heat dissipation.

Suitable for

• IP cameras requiring high power
• Wireless access points and bridges
• IoT devices and smart home equipment
• Any non-PoE device needing power and data over a single cable

Key specifications

• PoE Standard: IEEE 802.3af/at/bt (Type 4)
• Ethernet Data Rate: 2.5 Gigabit Ethernet (2.5GBASE-T)
• PoE Input Voltage: 48-57V DC
• DC Output Voltage: 12V DC
• Max Power Output: 60W
• Max Output Current: 5A
• PoE Input Port: 1x RJ45 (Data + Power)
• Data Output Port: 1x RJ45 (Data Only)
• DC Output Connector: 5.5 x 2.1 mm DC Jack
• DC Cable Length: Approx. 15 cm
• LED Indicators: Power, PoE Status
• Operating Temperature: 0°C to 40°C
• Housing Material: Metal
• Color: Grey
• Plug & Play: Yes
• Protection Features: Overload, Short-circuit
• Compliance: CE, FCC, RoHS
• Mounting Type: Desktop

Recommendations

For optimal performance, use with a PoE switch or injector that supports IEEE 802.3bt (Type 4) to achieve full 60W output. Ensure the connected device is compatible with 12V DC input.
