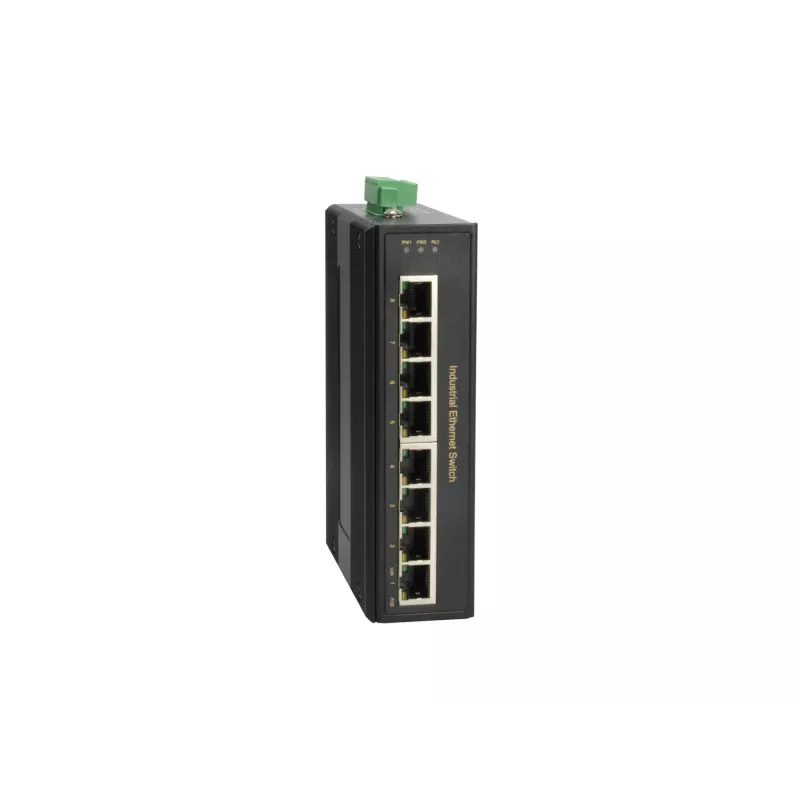

LevelOne IGP-0802 8-porttinen Gigabit PoE -kytkin, hallitsematon

The LevelOne IGP-0802 is an unmanaged industrial 8-port Gigabit PoE switch designed for 48–56 VDC systems. It provides eight IEEE 802.3at/af-capable PoE ports with up to 30 W per port and a total PoE budget suitable for powering multiple IP surveillance cameras, network devices in transportation vehicles, and other outdoor or industrial installations. The switch supports Gigabit (10/100/1000) Ethernet on all ports, full-duplex 1000 Mbps, auto-negotiation and auto-MDI/MDIX, and is built in an IP30 metal housing with DIN-rail, wall or desktop mounting options.

Advantages

The IGP-0802 combines industrial-grade temperature tolerance and redundant DC inputs with 48–56 VDC compatibility to ensure continuous operation in harsh environments. With IEEE 802.3at support and up to 30 W per PoE port it can power high-demand devices while Gigabit switching performance and an 8-port configuration enable efficient data throughput for surveillance and networked equipment. Compact metal construction and multiple mounting options simplify installation in vehicles, cabinets, or on-site racks.

Suitable for

• IP surveillance systems (cameras and NVR edge devices)
• Transportation and mobile deployments (buses, trucks, trains)
• Traffic monitoring and roadside equipment
• Industrial and telco edge networks in harsh environments

Key specifications

• Ports: 8 × 10/100/1000 Mbps RJ‑45 with PoE (IEEE 802.3at/af)
• PoE power per port: up to 30 W (PSE)
• Input voltage: 48–56 VDC, redundant terminal block inputs
• Switching capacity: 16 Gbit/s
• MAC address table: 8000 entries
• Operating temperature: -40 °C to 75 °C
• Mounting: DIN-rail, wall or desktop
• Enclosure: IP30 metal case

How to use

Install the IGP-0802 on a DIN-rail, wall bracket or flat surface according to the chosen mounting method. Connect a 48–56 VDC power source to the redundant terminal block inputs and verify polarity. Plug network devices into the RJ‑45 ports; PoE-enabled ports will supply power automatically to IEEE 802.3af/at PDs. The switch is unmanaged, so no configuration is required—devices will negotiate link speed and duplex automatically. Ensure proper grounding and secure cable routing in vehicle or outdoor installations.

Recommendations

Use the switch with compatible 48–56 VDC power supplies and verify total PoE power budget before connecting multiple 30 W devices. Place the unit in a location with adequate ventilation and follow IP30 enclosure limitations regarding direct exposure to water. For mobile installations, secure mounting and vibration-resistant cabling are recommended.
