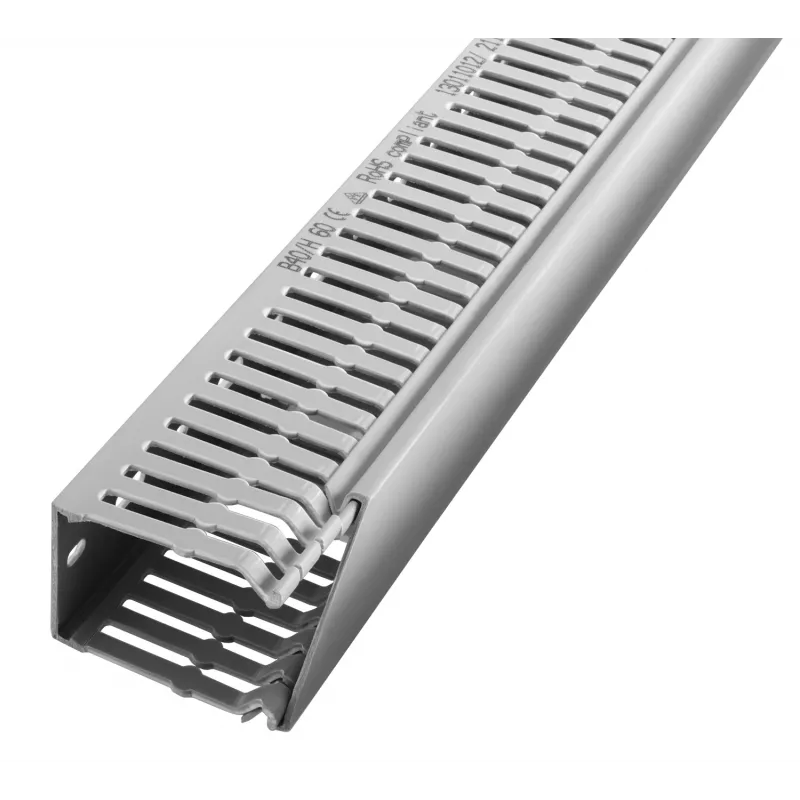

LICATEC kaapelikanava L 60 x K 100 mm 7341-1

The LICATEC Wiring Duct 7341-1 is a high-quality PVC wiring duct designed for professional cable management in electrical installations and control cabinets. With dimensions of 60 mm width and 100 mm height, this duct provides ample space for organizing and routing cables securely. The duct features a narrow slot design (Schmalsteg) with a slot width of 4.5 mm and a pitch of 6.5 mm, allowing for easy insertion and removal of wires. It comes with a lid for complete cable concealment and protection. The base is perforated for screw mounting, ensuring stable installation. The duct is made from self-extinguishing PVC with a flammability rating of UL94 V-0, suitable for a wide operating temperature range from -5°C to +60°C. It is RoHS and CE certified, ensuring compliance with environmental and safety standards.

Advantages

This wiring duct offers excellent cable organization, saving space and reducing installation time. The narrow slot design provides a secure hold for wires while allowing easy access. The included lid keeps cables dust-free and enhances safety. The material is durable and flame-retardant, making it ideal for industrial environments.

Suitable for

• Electrical control cabinets
• Industrial automation systems
• Building wiring installations
• Telecommunication and data centers

Key specifications

• Product Type: Wiring Duct
• Material: PVC (Polyvinyl Chloride)
• Color: Grey (RAL 7035)
• Width: 60 mm
• Height: 100 mm
• Length: 2000 mm
• Slot Type: Narrow Slot
• Slot Width: 4.5 mm
• Slot Pitch: 6.5 mm
• Operating Temperature Range: -5°C to +60°C
• Flammability Rating: UL94 V-0
• Halogen-free: No
• Mounting Type: Base perforation for screw mounting
• Lid Included: Yes
• Side Wall Type: Slotted
• Base Perforation: Yes
• Standards / Certifications: RoHS, CE

Recommendations

For optimal cable management, pair this wiring duct with compatible cable ties and mounting accessories. Ensure proper grounding and follow local electrical codes during installation.
