Liitoskappale Rittal 5301.310 ruostumaton teräs sinkitty teräs

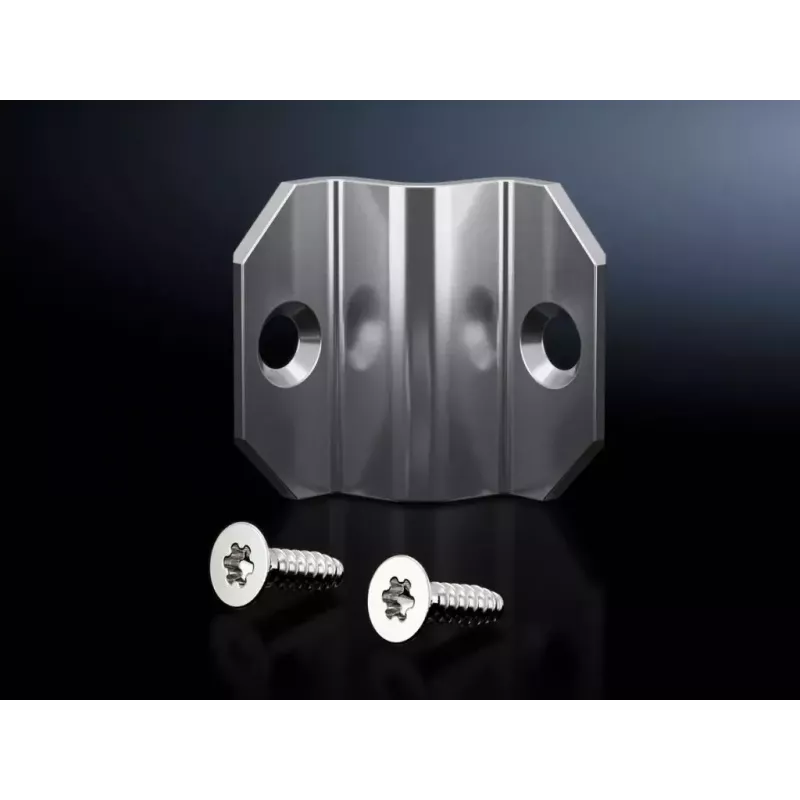

The Rittal 5301.310 Baying connector Stainless steel Galvanized steel provides a robust mechanical link between adjacent server racks and enclosures. Constructed from stainless steel with galvanized steel components, the connector is intended to maintain alignment, increase structural stability and reduce lateral movement between cabinets in data center and industrial environments. Its design supports secure baying without altering cabinet frames or compromising accessibility to mounted equipment.

Advantages

The stainless steel construction offers corrosion resistance and long service life in environments where humidity or cleaning agents may be present. Galvanized steel elements add mechanical strength and cost-effective durability. The baying connector enables precise cabinet alignment, reduces vibration transfer and simplifies installation compared with custom fabrication. It is compatible with standard baying interfaces used on modular racks and enclosures, providing a reliable physical connection while preserving airflow and access to ports and panels.

Suitable for

Key specifications

How to use

Position the baying connector between the mating profiles of adjacent cabinets so that alignment tabs and mounting points engage with the cabinet frame. Secure the connector using the appropriate fasteners through the provided mounting holes; tighten to the manufacturer's recommended torque values to avoid distortion of the frame. Verify alignment and level of the cabinets after installation and adjust as necessary. Regularly inspect fasteners and contact surfaces for signs of loosening or corrosion, particularly in high-humidity environments.

Recommendations

For optimal performance, install connectors on both the top and bottom of cabinet pairs according to load and stability requirements. Use stainless-compatible fasteners to maintain overall corrosion resistance. Avoid over-tightening which may deform cabinet profiles; follow facility grounding and bonding practices if connectors are used in electrically sensitive installations.
