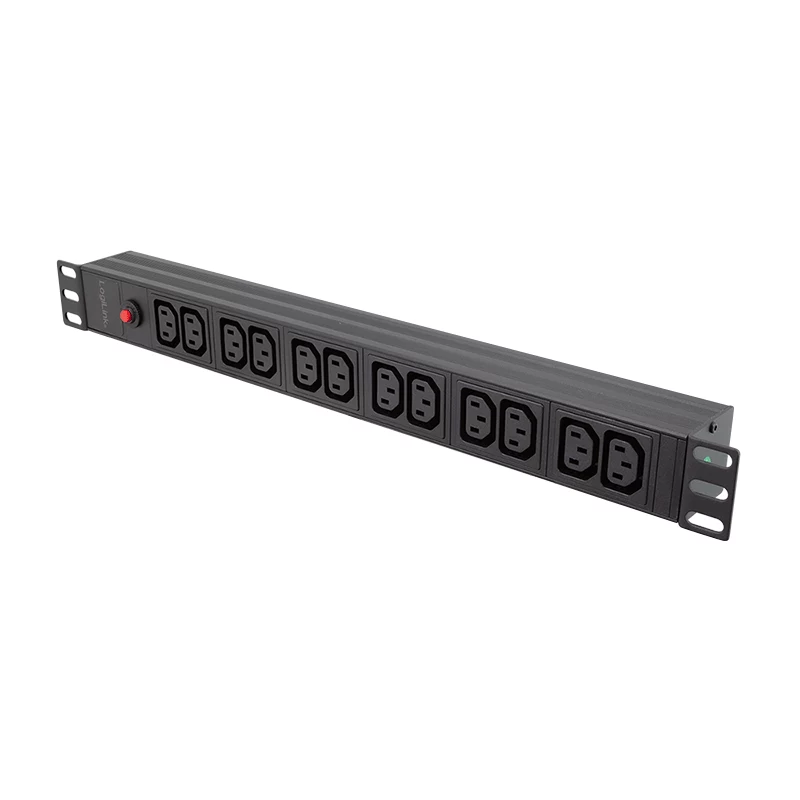

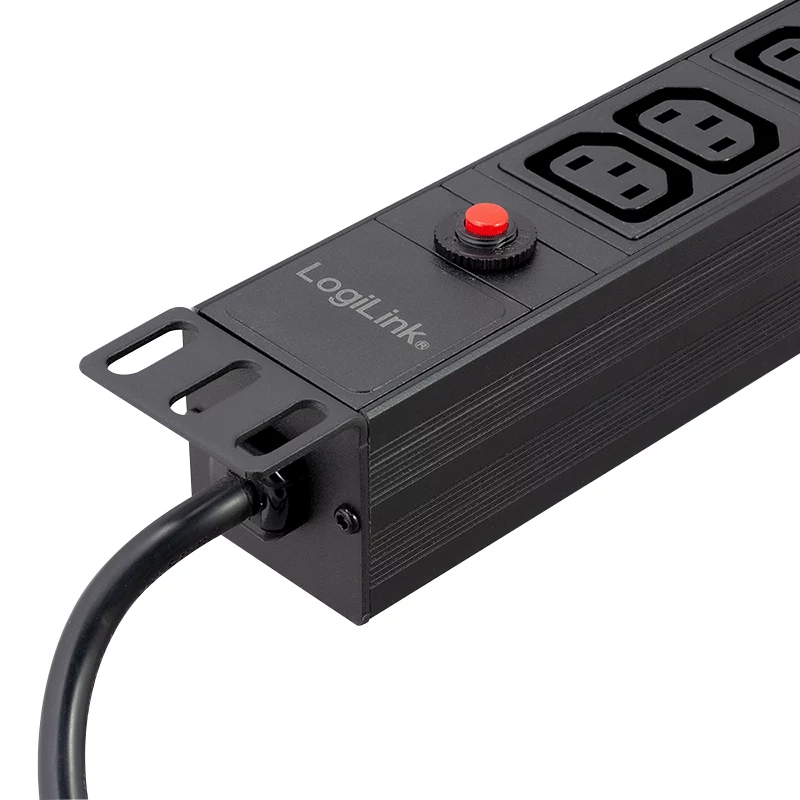

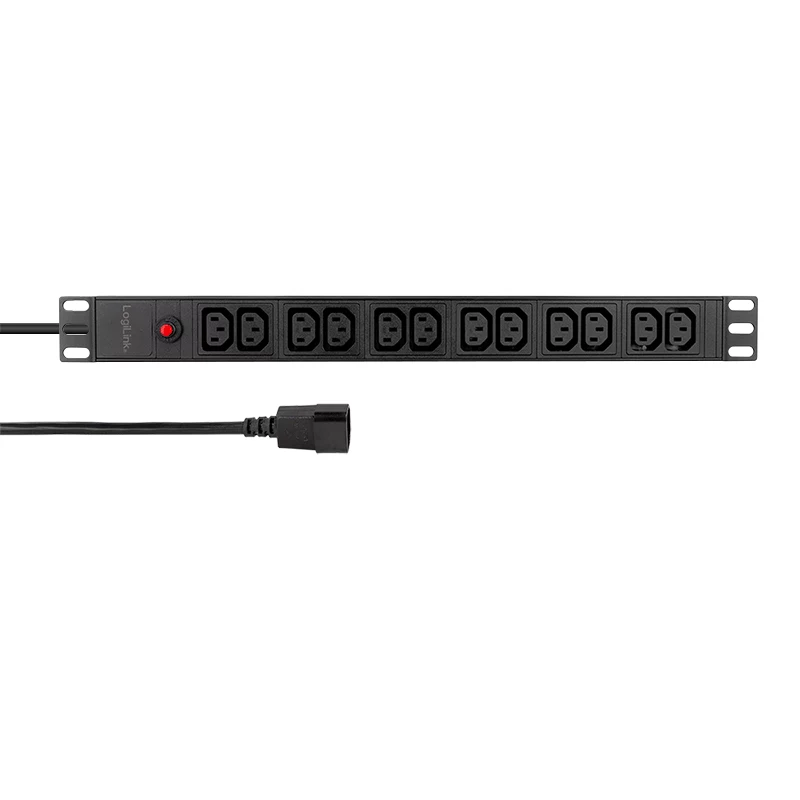

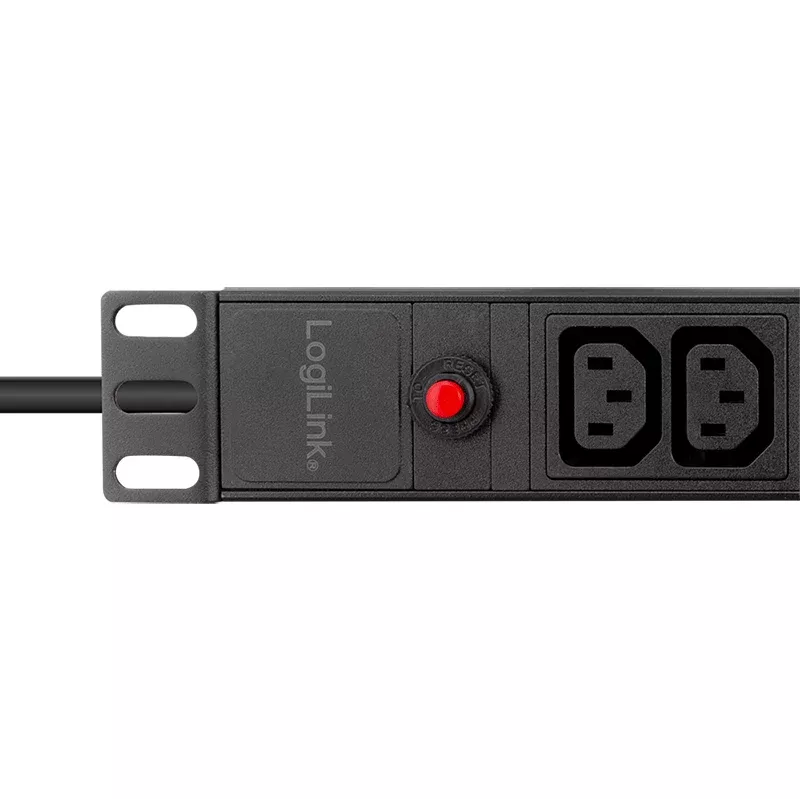

LogiLink 19 tuuman 1U rack-PDU 12x IEC C13 pistorasialla, 10A, ylikuormitussuojalla

Distribute power to up to 12 devices from a single 19-inch rack unit with this 10A PDU, featuring a 2500W maximum load and integrated overload protection for safe, reliable operation.

Overview

The LogiLink PDU12A1 is a 1U rackmount power distribution unit designed for professional IT environments. It provides twelve IEC 60320 C13 output sockets, allowing you to connect servers, switches, and other equipment from a single input. The unit is rated for 250V AC and 10A, supporting up to 2500W of total load. An illuminated on/off switch gives you control over all outputs, and the integrated circuit breaker protects against overloads. The aluminum housing ensures durability, and the black finish blends seamlessly into standard racks.

What stands out

• 12 C13 outlets in a compact 1U form factor
• Integrated overload protection with circuit breaker
• Illuminated on/off switch for easy control
• Aluminum housing for long-lasting performance
• CE and RoHS certified for safety and environmental compliance

Technical details

• Input: 1 x IEC 60320 C14 (cable not included)
• Output: 12 x IEC 60320 C13
• Nominal voltage: 250V AC
• Nominal current: 10A
• Maximum power: 2500W
• Rack units: 1U
• Mounting: Horizontal, 19-inch rack
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Operating humidity: 0% to 90% RH (non-condensing)
• Certifications: CE, RoHS

Our verdict

This PDU offers a reliable and space-efficient power distribution solution for any standard 19-inch rack, with the peace of mind of overload protection.
