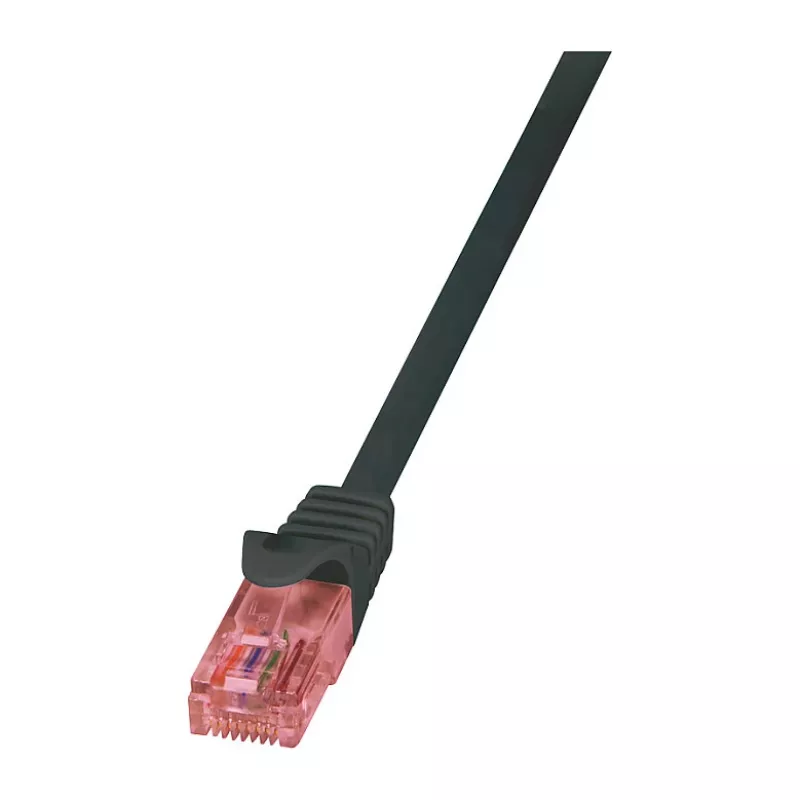

LOGILINK Cat.6 U/UTP -verkkokaapeli, 2 m, musta, LSZH, Snagless, Gigabit Ethernet, PrimeLine

For network installations where signal integrity and safety cannot be compromised, this LOGILINK PrimeLine patch cable delivers genuine Cat.6 performance with bare copper conductors and an LSZH jacket. Unlike cheaper copper-clad aluminium (CCA) alternatives, the pure bare copper construction ensures consistent impedance, lower attenuation, and full support for Gigabit Ethernet and Power over Ethernet. The unshielded U/UTP design keeps the cable flexible and easy to route in high-density patch panels, while the snagless boot protects the locking tab during frequent re-patching. With a length of 2 metres, it is the ideal choice for connecting workstations, access points, IP cameras, and other PoE devices in offices, server rooms, and smart buildings.

Highlights

• Certified Cat.6 performance up to 250 MHz and 1 Gbps
• Bare copper (BC) conductors for superior conductivity and PoE efficiency
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety
• Gold-plated RJ45 connectors with 3 µm plating for reliable contacts
• Snagless molded boot prevents accidental disconnections
• Compliant with TIA/EIA 568B wiring standard

In daily use

This 2-metre patch cable is a dependable workhorse for structured cabling. The stranded AWG 26/7 conductors provide the right balance of flexibility and durability, making it easy to manage in tight spaces without kinking. The LSZH jacket emits very low smoke and no toxic halogens in the event of a fire, meeting IEC 60332-1 flame retardancy requirements and making it suitable for public buildings, schools, and hospitals. The snagless boot protects the connector clip from damage during frequent moves, ensuring a long service life even in dynamic environments.

Full specifications

• Cable Type: Patch Cable
• Ethernet Category: Cat.6
• Shielding Type: U/UTP (Unshielded / Unshielded Twisted Pair)
• Length: 2.0 meters
• Color: Black
• Conductor Material: Bare Copper (BC)
• Conductor Gauge: AWG 26/7 (Stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Type (End 1): RJ45 Male
• Connector Type (End 2): RJ45 Male
• Connector Plating: Gold-plated contacts (3µm)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1000 Mbps (Gigabit Ethernet)
• PoE Support: Yes (PoE, PoE+)
• Flame Retardancy Standard: IEC 60332-1
• Operating Temperature: -20°C to +60°C
• Number of Pairs: 4 Twisted Pairs
• Outer Diameter: Approx. 6.0 mm
• Boot Type: Molded, Snagless

Final note

A reliable, safety-conscious Cat.6 patch cable with bare copper conductors and LSZH jacket, ideal for professional network installations.
