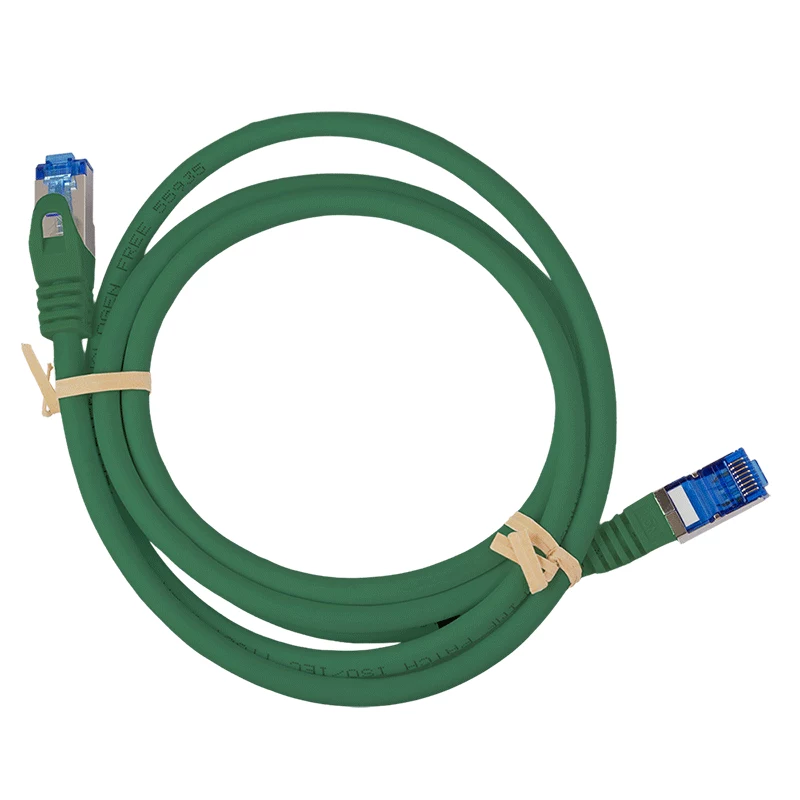

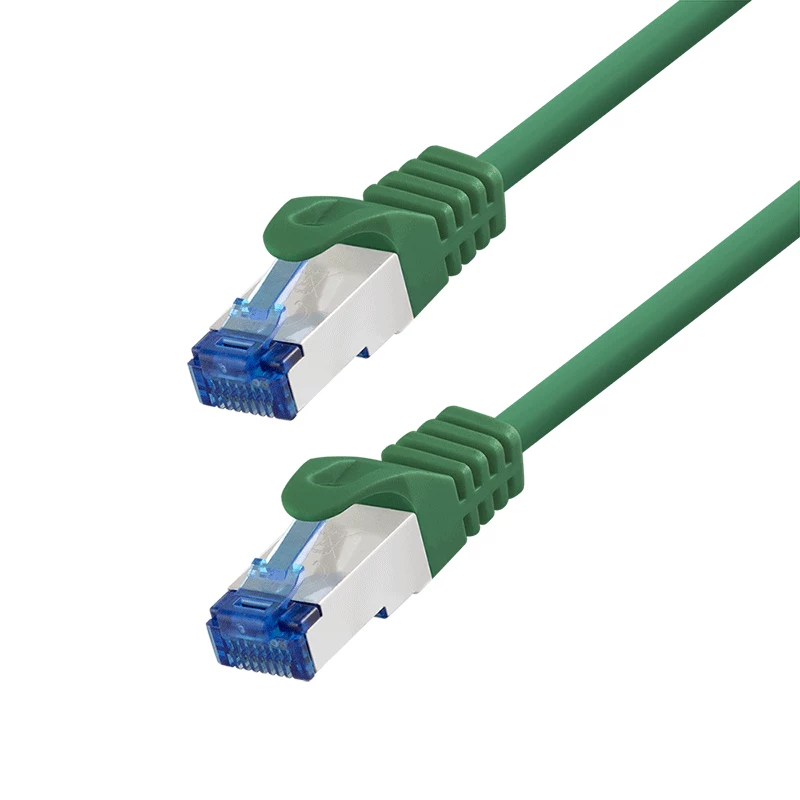

LogiLink Cat.6A S/FTP LSZH patchkaapeli, CCA, 7,5 m, vihreä, EconLine

High-performance Cat.6A patch cable engineered for 10 Gigabit Ethernet, delivering reliable 500 MHz bandwidth in a green LSZH jacket. The S/FTP shielding with gold-plated contacts ensures superior signal integrity and protection against EMI/RFI interference.

Advantages

CCA conductors offer a cost-effective solution without compromising performance for short to medium runs. The LSZH jacket emits low smoke and zero halogen, making it safe for enclosed spaces. Stranded conductors provide flexibility for easy routing in tight areas.

Suitable for

• 10GBASE-T networks in data centers and server rooms
• Office LAN connections requiring high-speed data transfer
• PoE applications up to IEEE 802.3bt (PoE++)
• Installations where fire safety regulations demand LSZH materials

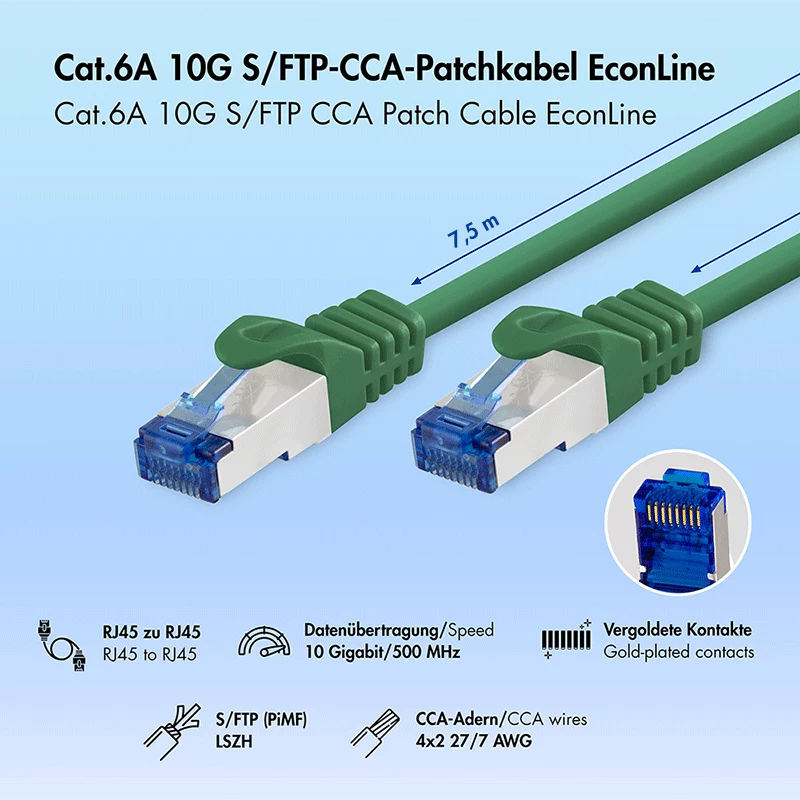

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor: CCA (Copper Clad Aluminum), AWG 26/7 stranded
• Jacket: LSZH (Low Smoke Zero Halogen), green
• Length: 7.5 m
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50µm)
• Wiring: TIA/EIA 568B
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Flame retardancy: IEC 60332-1
• Halogen free: IEC 60754-2
• Low smoke: IEC 61034

Recommendations

For optimal performance, avoid sharp bends and maintain the minimum bend radius. Use with compatible Cat.6A components to achieve full 10G speeds. Ideal for structured cabling in commercial and industrial environments.
