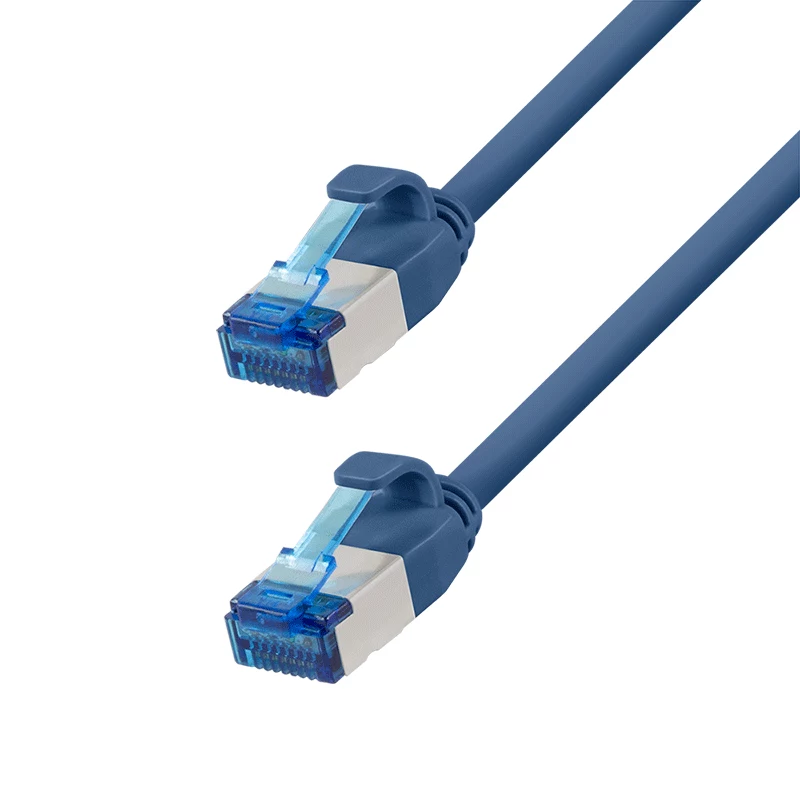

LogiLink Cat.6A Slim S/FTP LSZH -patchkaapeli, 10 m, sininen

For installations where space is tight but performance cannot be compromised, this LogiLink SlimLine patch cable delivers full 10 Gigabit Ethernet in a dramatically reduced outer diameter. The Cat.6A S/FTP construction with PIMF pair shielding and overall braid ensures superior alien crosstalk resistance, while the LSZH jacket meets strict fire safety requirements for public and commercial buildings. At 10 meters, it bridges longer distances in racks, offices, and data centers without the bulk of standard Cat.6A cables.

Highlights

• Cat.6A performance up to 500 MHz and 10GBASE-T
• S/FTP shielding: PIMF (pairs in metal foil) plus overall braid

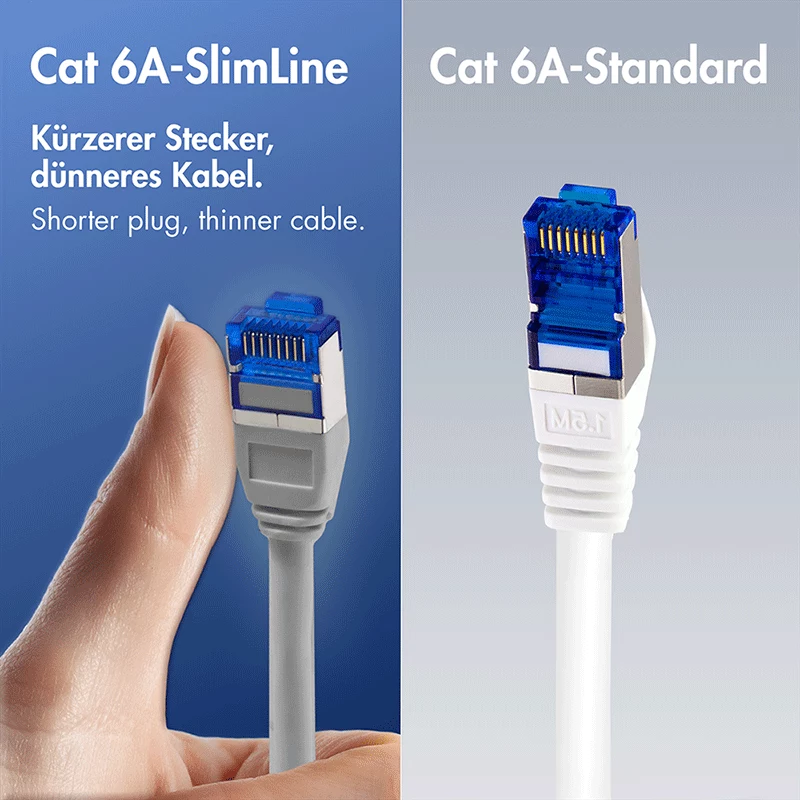

• SlimLine design: reduced outer diameter for high-density patching
• LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces
• Gold-plated RJ45 connectors (50µ") for reliable contacts
• Stranded 28 AWG oxygen-free copper conductors for flexibility

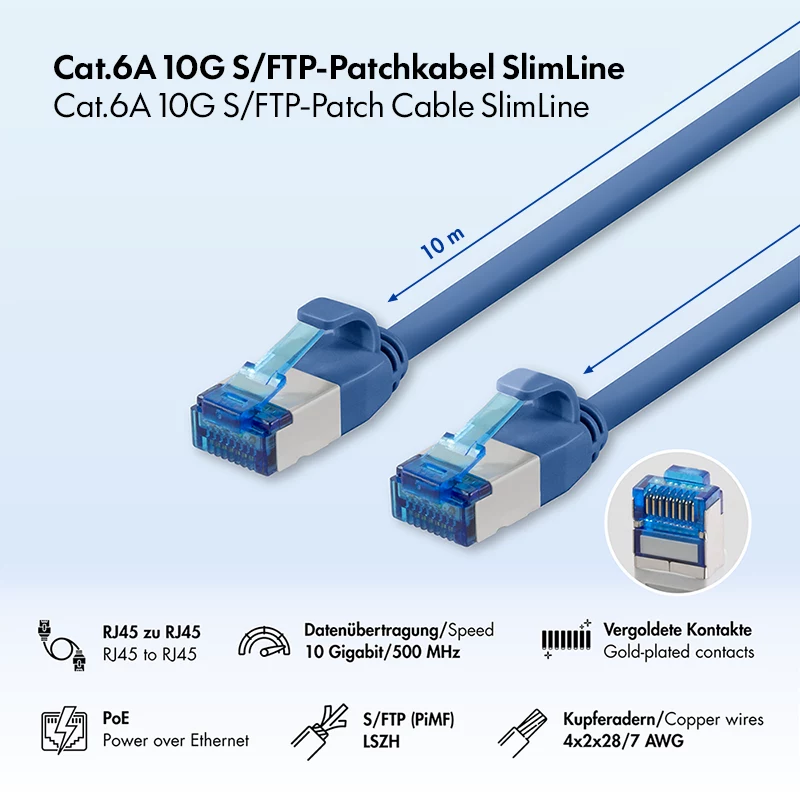

• Length: 10 meters, ideal for rack-to-rack or long device runs

In daily use

The slim profile makes a real difference when you're dressing dozens of cables in a 48-port patch panel. Each cable takes up less space, improves airflow, and is easier to route around corners. The stranded conductors remain flexible even in cool server rooms, and the snagless boots protect the locking tabs during frequent moves. The blue jacket provides quick identification for network segments, while the LSZH material means no toxic smoke or corrosive gases in the event of fire.

Full specifications

• Category: Cat.6A (Category 6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Individual pair shielding: PIMF (Pairs in Metal Foil)
• Overall shielding: Braid
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated (50µ")
• Conductor material: Oxygen-free copper (OFC)
• Conductor gauge: 28 AWG (stranded)
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring standard: TIA/EIA 568B
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Flame retardant: Yes (IEC 60332-1)
• Halogen-free: Yes
• Length: 10 m
• Colour: Blue

Final note

For professionals who need Cat.6A performance without the bulk, this SlimLine cable is a practical choice. It meets the demands of modern high-speed networks while keeping your cable management clean and safe.
