LogiLink FA03LC7 LC-Duplex kuitusovitin, 12 kpl:n pakkaus, ilman laippaa, sininen

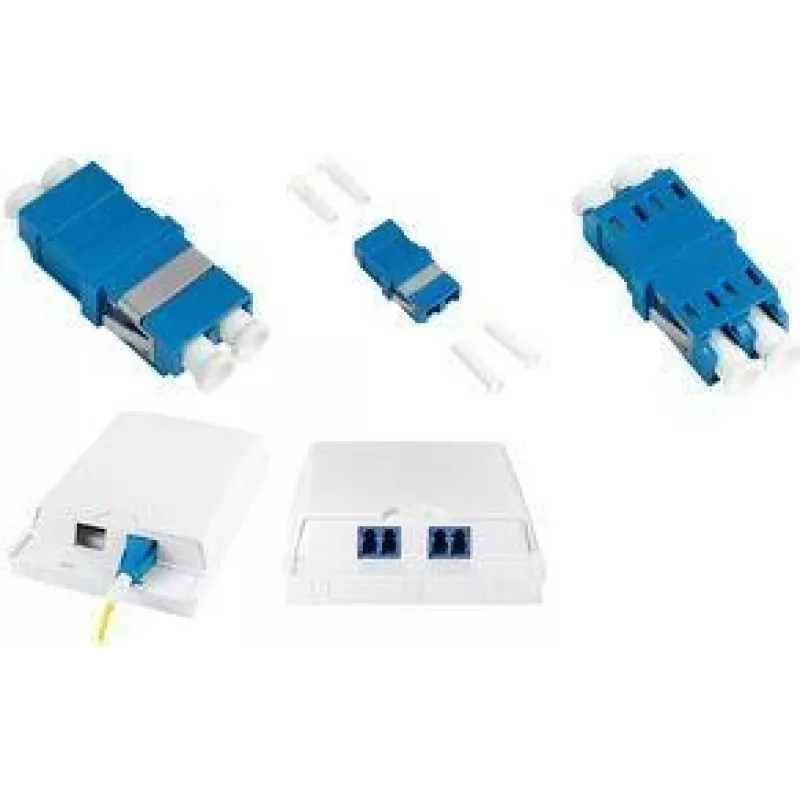

Network technicians and data center managers often need a reliable way to connect LC-terminated fiber cables through patch panels and wall outlets. The LogiLink FA03LC7 LC duplex adapter provides a snap-in, panel-mountable solution that streamlines fiber optic link management in high-density environments. This pack includes 12 blue adapters, each featuring zirconia ceramic sleeves for precise alignment and low insertion loss, making them suitable for single-mode OS2 networks.

Key specifications

• Connector type: LC duplex (female-to-female)
• Quantity: 12 pieces per pack
• Flange design: without flange (snap-in mounting)
• Housing material: blue ABS plastic
• Sleeve material: zirconia ceramic
• Fiber mode: single-mode (OS2)
• Insertion loss: ≤ 0.2 dB
• Return loss: ≥ 50 dB
• Durability: > 500 mating cycles
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH, IEC 61754-20

Why choose it

These adapters offer consistent optical performance thanks to their zirconia ceramic alignment sleeves, which minimize signal loss and back reflection. The snap-in design without flange allows quick installation into standard panel cutouts, reducing deployment time. The blue housing provides easy identification of single-mode connections, and the 12-pack ensures you have enough units for larger projects or spare inventory.

Ideal use cases

• Fiber optic patch panels in data centers
• Telecommunications distribution frames
• FTTH (Fiber to the Home) termination points
• LAN backbone connections in enterprise networks
• Testing and measurement setups requiring temporary links

Good to know

The adapters are compliant with IEC 61754-20 and RoHS/REACH standards, ensuring safe use in professional environments. They are designed for single-mode OS2 fiber, but may also work with some multimode applications if alignment tolerances are acceptable. Always verify compatibility with your specific cable and panel before installation.
