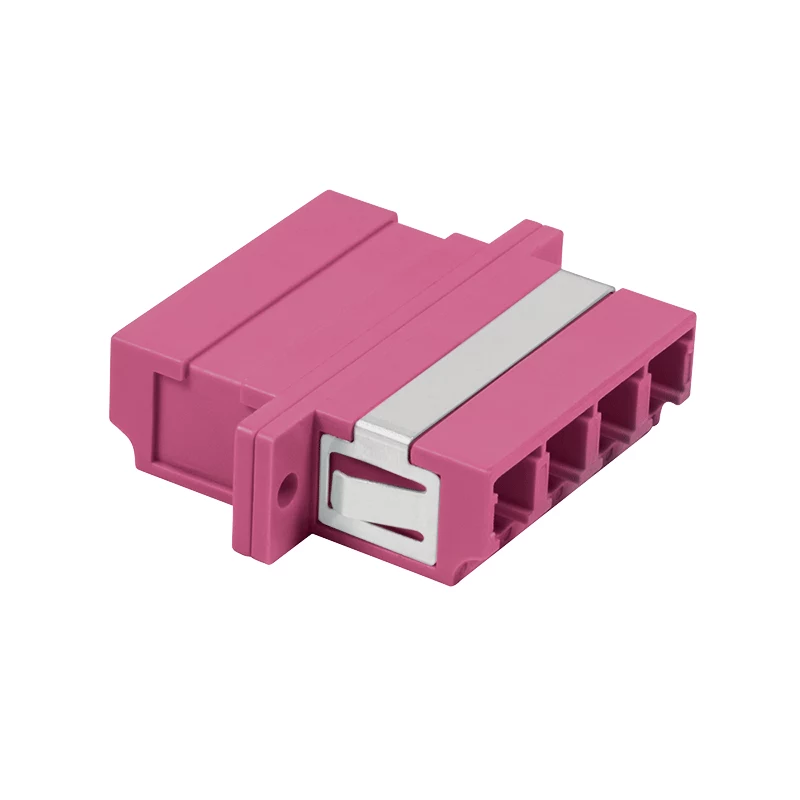

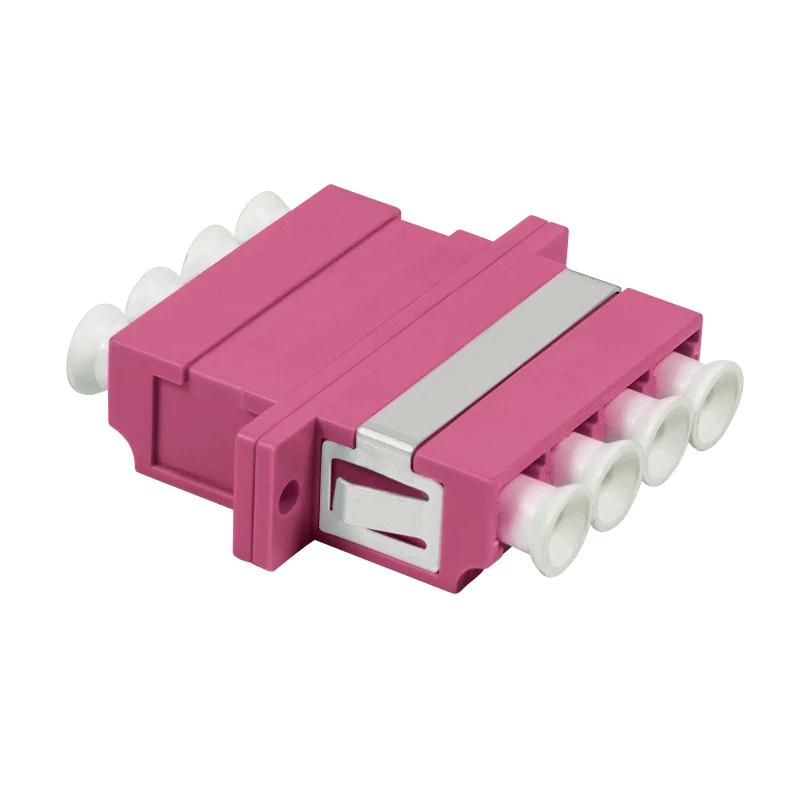

LogiLink LC-Duplex Quad kuitu-liitinsarja, violetti, 12-osainen FA04LC7

Fiber optic coupler set with LC-Duplex Quad configuration, providing a reliable connection point for multimode fiber networks. The violet housing allows quick identification of OM3/OM4 multimode compatibility.

Advantages

Each coupler features a ceramic sleeve for low insertion loss and high return loss, ensuring stable optical performance. The plastic housing is lightweight yet durable, rated UL94 V-0 for flammability. With 500 mating cycles, these couplers are built for repeated use in patch panels and wall outlets.

Suitable for

• Patch panels and wall outlets in data centers
• LAN backbone connections
• Multimode fiber installations (OM3/OM4)

Key specifications

• Connector type: LC-Duplex to LC-Duplex (female-female)
• Configuration: Quad (2x duplex per unit)
• Mounting standard: SC-Duplex cutout
• Colour: Violet
• Housing material: Plastic
• Ferrule/sleeve material: Ceramic
• Insertion loss: < 0.2 dB
• Return loss: > 50 dB
• Durability: 500 mating cycles
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Flammability rating: UL94 V-0

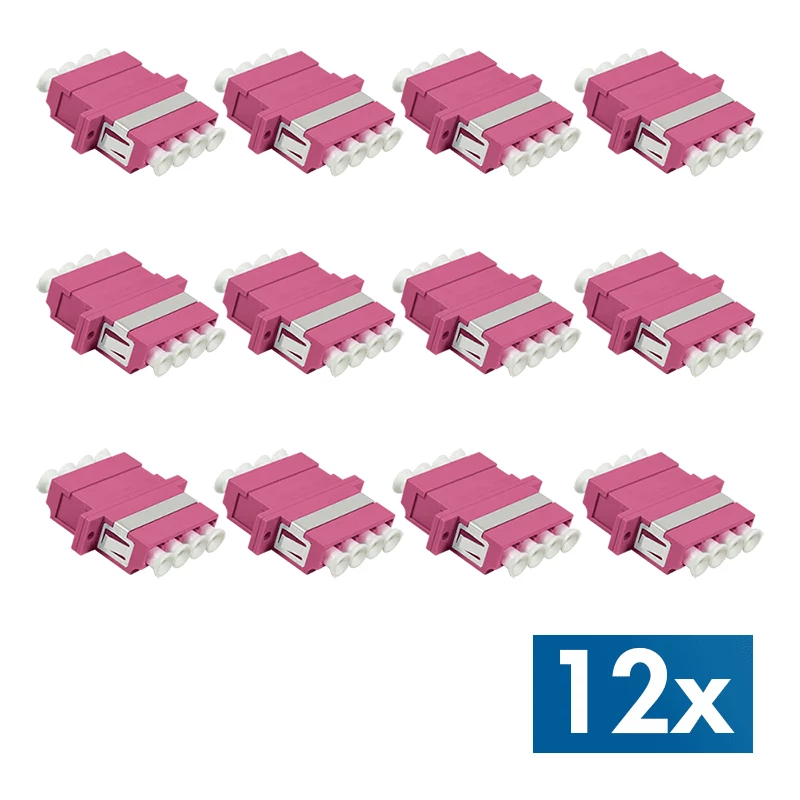

• Quantity per set: 12 pieces

Recommendations

For high-density fiber installations, pair these couplers with LogiLink patch cables and panels to maintain consistent performance and colour coding.
