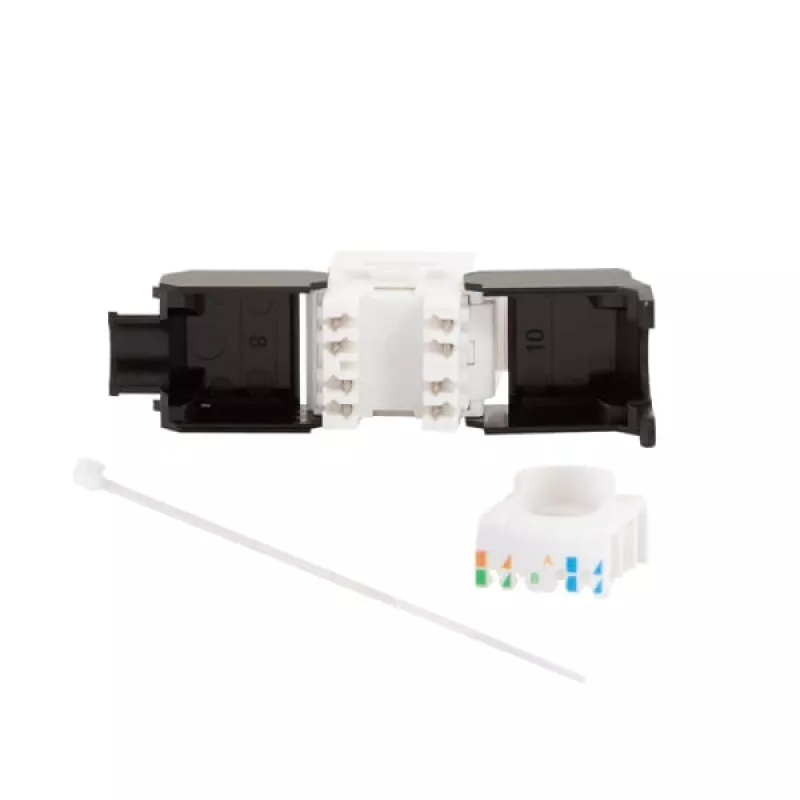

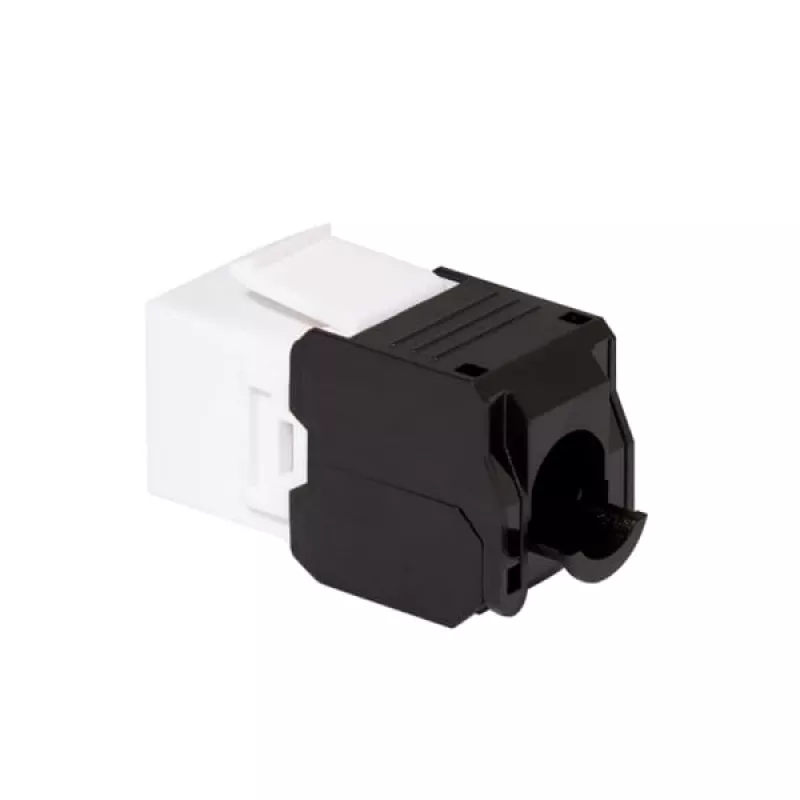

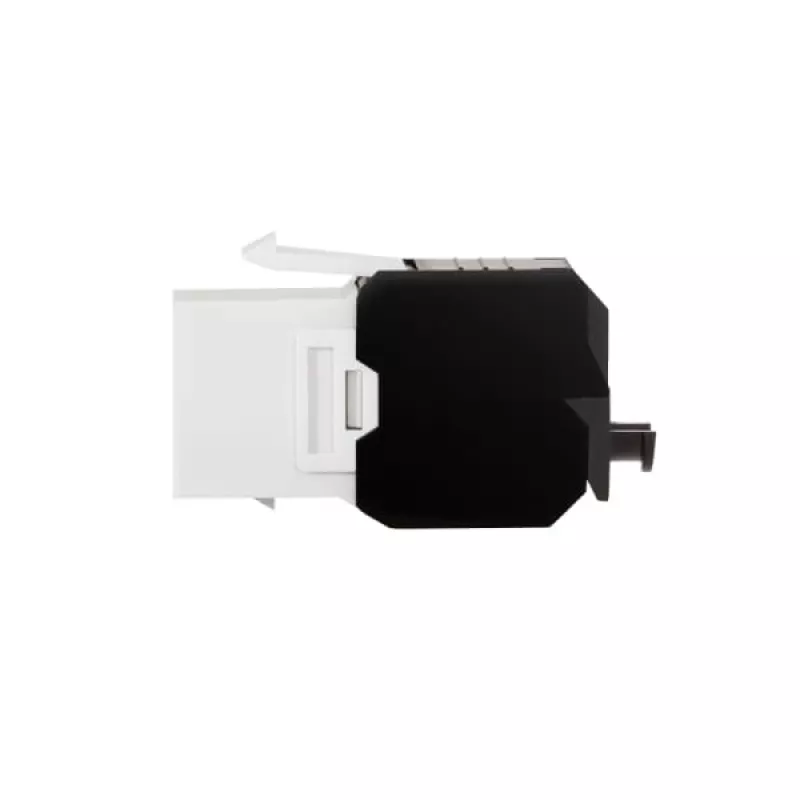

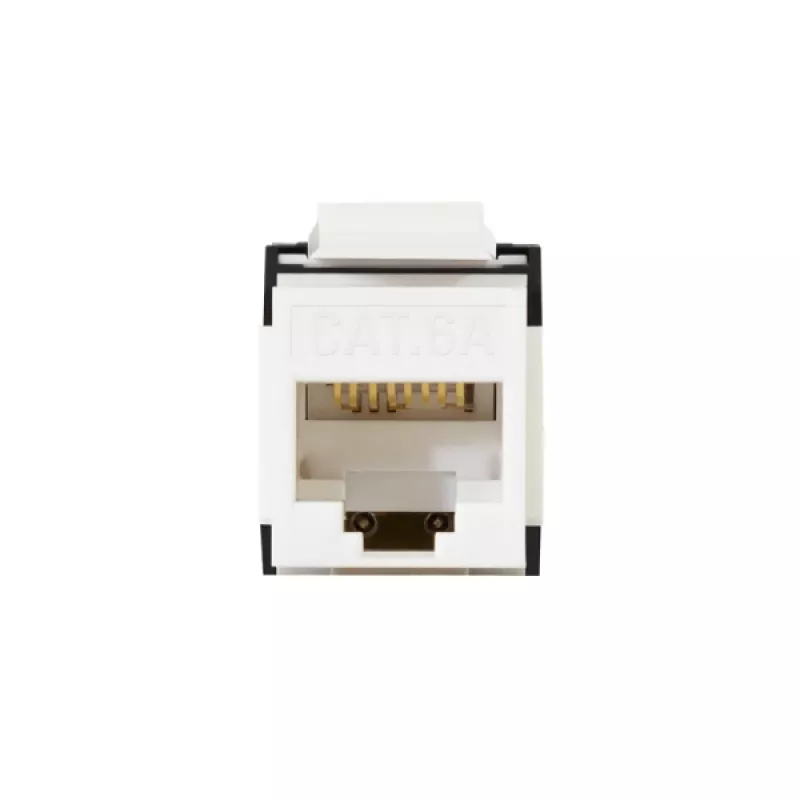

LogiLink NK4066 Keystone-moduuli litteä musta valkoinen RJ-45

LogiLink NK4066 is a toolless Cat.6A keystone jack with an RJ45 interface designed for transmission of digital and analogue signals up to 500 MHz. The flat module, available in black and white, supports Cat.6 and Cat.6A cabling and provides the performance margin required for Class E or EA links, making it suitable for Gigabit Ethernet and 10 Gigabit Ethernet (Cat.6A) applications.

Advantages

The toolless design enables quick and simple termination without specialised tools, while compatibility with AWG 22–26 conductors ensures broad cable support. The module’s performance up to 500 MHz and adherence to Cat.6A parameters provide headroom for high-speed network links. Its flat form factor and standard keystone dimensions allow easy integration into patch panels, wall plates, and keystone housings.

Suitable for

• Gigabit Ethernet network installations
• 10 Gigabit Ethernet (Cat.6A) cabling
• Patching in keystone panels and wall plates
• Structured cabling requiring tool-free terminations

Key specifications

• Brand: LOGILINK
• Model / MPN: NK4066
• EAN: 4052792070859
• Category: Cat.6A keystone jack, UTP
• Connector: RJ45 keystone module
• Frequency rating: up to 500 MHz
• Wire gauge compatibility: AWG 22–26
• Installation type: toolless
• Colours: black and white
• Dimensions (manufacturer data): width 16.6 mm (noted as 166 mm in summary), depth 392 mm, height 22 mm

How to use

Prepare the UTP cable by stripping the outer jacket to the recommended length, arrange the conductor pairs according to the chosen wiring standard (T568A or T568B), and insert each conductor into the corresponding slot of the keystone jack. Close the module’s cap or termination mechanism to secure the conductors; the toolless design locks and punches down the wires without a punchdown tool. Snap the finished keystone module into the desired patch panel or wall plate opening and verify connectivity with appropriate network testing equipment.

Recommendations

Use the NK4066 within a structured cabling system that meets or exceeds Cat.6A/Class EA requirements to ensure full 10 Gigabit Ethernet performance. Confirm conductor placement and test each link after installation; avoid exceeding the specified AWG range and protect terminated jacks from excessive bend radius or mechanical stress.
